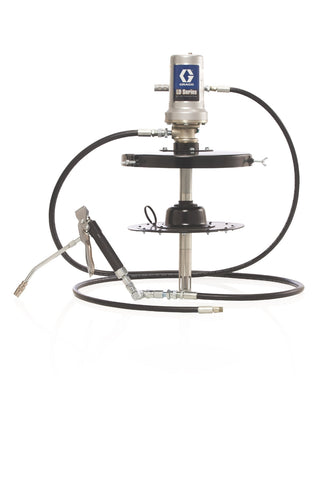

Graco | 24J034 LD Series 50:1 35 lb (16 kg) Grease Drum CE Pump Package - BSPP
Graco
Model: 24J034
The LD Series pumps are designed for lower-volume applications, handling up to 7,000 lb./year (3175 kg./year). They offer a compact, flexible, and durable solution.
- Three Inch Air Motor: Delivers increased power for improved flow rates.
- Engineered for Durability: Features a patented cup and plate design that eliminates O-rings, resulting in a more durable and longer-lasting pump.
- Extended Seal Life: The in-line pump design aligns the air motor piston and fluid piston rods to maximize seal longevity.
- Pilot Valves: The patented self-cleaning design enhances reliability in dusty air conditions and minimizes pressure drop during rapid changeovers, leading to reduced stalling and smoother flow.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955618220 |
| Division | LED |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (mm) | 6.35 |
| Maximum Working Pressure (bar) | 345 |
| Maximum Working Pressure (kPa) | 34500 |
| Maximum Working Pressure (psi) | 5000 |
| Air Inlet Size (in) | 0.25 |
| Maximum Working Pressure (MPa) | 35 |
| Model | LD |
