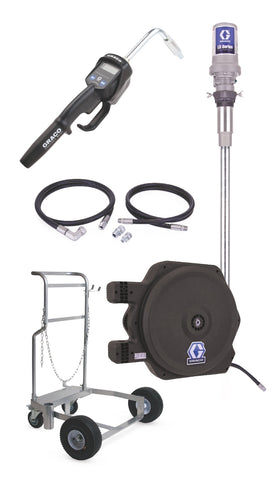

Graco | 24H916 LD Series 5:1 200 Liter Mobile Oil Pump Package - Manual Meter Type
Graco
Model: 24H916
The LD Series pumps are designed for lower-volume applications, offering affordability and comprehensive features to maintain a competitive edge. These pumps are engineered for a compact, flexible, and durable solution.
- Three Inch Air Motor: Delivers increased power for improved flow rates.
- Engineered for Durability: Features a patented cup and plate design that eliminates O-rings, enhancing durability and extending lifespan.
- Extended Seal Life: The in-line pump design aligns air motor and fluid piston rods to maximize seal longevity.
- Pilot Valves: The patented self-cleaning design ensures reliability in dirty air conditions and minimizes pressure drop for rapid changeovers, reducing stalling and promoting smoother flow.
- Built-In Thermal Relief and Inlet Strainer: Integrated thermal relief protects equipment from thermal expansion, while the inlet strainer prevents pump damage from contaminants.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955019287 |
| Division | LED |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (cm) | 2.5400 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4000 |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (mm) | 12.7 |
| Maximum Working Pressure (bar) | 52 |
| Maximum Working Pressure (kPa) | 5200 |
| Maximum Working Pressure (psi) | 750 |
| Number of Pieces | 6 |
| Air Inlet Size (in) | 0.25 |
| Maximum Working Pressure (MPa) | 5.2 |
| Model | LD |
