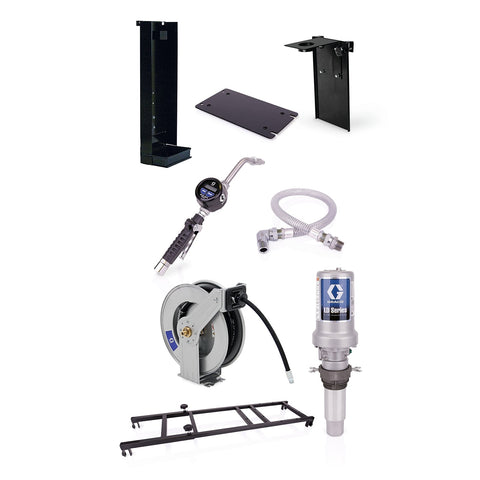

Graco | 24H726 LD Series 3:1 Stationary 275 Gallon (1040 Liter) Oil Pump Package - Manual Meter Type
Graco
Model: 24H726
The LD Series pumps are designed for lower-volume applications, offering affordability and comprehensive features to maintain a competitive edge. These pumps are engineered for a compact, flexible, and durable solution.
- Three Inch Air Motor: Delivers increased power for enhanced flow rates.
- Engineered for Durability: Features a patented cup and plate design that eliminates O-rings, providing a more durable and longer-lasting solution.
- Modular Air Valve: Allows for easy configuration of air inlet and exhaust locations with only four bolts, simplifying installations.
- Pilot Valves: Incorporates a patented self-cleaning design for increased reliability in dirty air environments and minimizes pressure drop with rapid changeovers, reducing stalling and ensuring smoother flow.
- Built-In Thermal Relief and Inlet Strainer: Includes integrated thermal relief to protect equipment from thermal expansion and a built-in inlet strainer to safeguard the pump from contaminants.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955049451 |
| Division | LED |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (cm) | 2.5400 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4000 |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (mm) | 12.7 |
| Maximum Working Pressure (bar) | 52 |
| Maximum Working Pressure (kPa) | 5200 |
| Maximum Working Pressure (psi) | 750 |
| Air Inlet Size (in) | 0.25 |
| Maximum Working Pressure (MPa) | 5.2 |
| Model | LD |
