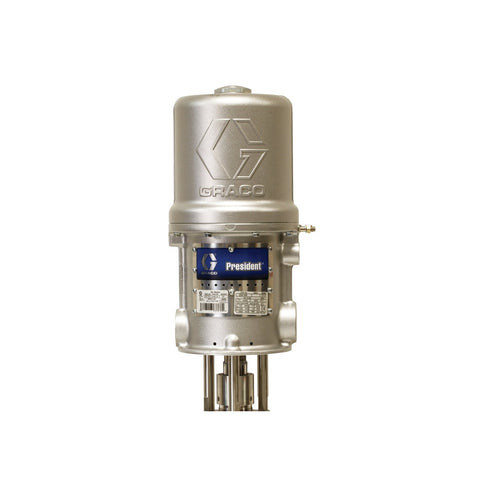

Graco | 223843 President 30:1 Pneumatic 2-Ball Piston Pump, 304 SST, Stubby Length
Graco
Model: 223843
This product features 2-ball pneumatic piston pumps suitable for diverse applications.
- Equipped with a reliable air motor designed for minimal maintenance and extended service life.
- The positive displacement, 2-ball piston design ensures consistent and controllable fluid delivery.
- Available in stainless steel or carbon steel models to accommodate various fluids, including catalyzed materials.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955342675 |
| Division | IPD |
| Height | 10.8 IN | 27.432 CM |
| Length | 36 IN | 91.440 CM |
| Width | 9.6 IN | 24.384 CM |
| Volume | 2.16 FT3 | 0.061 M3 |
| Shipping Weight | 36 LBS | 16.329 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (in) | 0.5 |
| Air Inlet Size (mm) | 12.7 |
| Air Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Gender | Female |
| Includes | Stubby Length |
| Maximum Air Inlet Pressure (bar) | 8.27 |
| Maximum Air Inlet Pressure (kPa) | 827 |
| Maximum Air Inlet Pressure (psi) | 120 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (L/min) | 3.79 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (bar) | 248 |
| Maximum Working Pressure (kPa) | 24800 |
| Maximum Working Pressure (psi) | 3600 |
| Model | President |
| Portable | Non-Portable |
| Series | 2-Ball |
| Maximum Working Pressure (MPa) | 24.8 |
