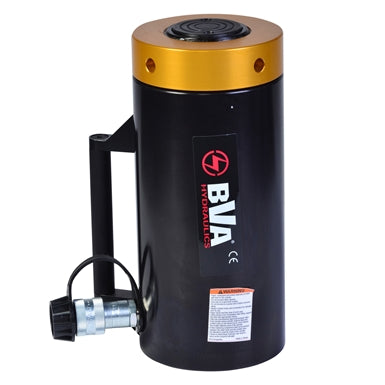

BVA | HULN3006, 30 Ton 6" Stroke, Lock Nut Aluminum Single Acting Cylinder
LOCK NUT ALUMINUM SINGLE ACTING CYLINDER
BVA Hydraulics
Model: HULN3006
Features:
- Single acting cylinder with mechanical safety lock nut
- Designed to support loads without hydraulic pressure
- Overflow port prevents cylinders from over travel
- Load return
- Lightweight aluminum cylinder body
- Steel saddle
- Hard anodized rod to resist corrosion and rust
- Maximum working pressure: 10,000 psi / 700 bar
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Cylinder Effective Area (in²) |
Internal |
Oil Capacity (in³) |
Weight (Lbs) |
| 30 | 6 | HULN3006 | 6.50 |
10,000 |
39.00 | 21 |
Documents:
Lock Nut Aluminum Single Acting Cylinders Spec Sheet
Parts/Owner's Manual (30 thru 50 ton)
Parts/Owner's Manual (100 thru 150 ton)
