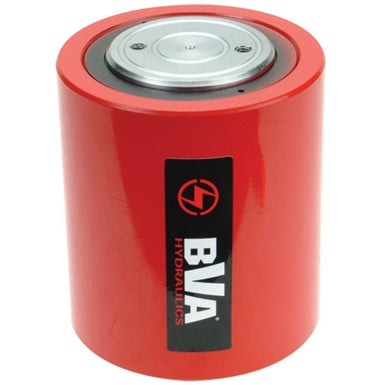

BVA | HL3002, 30 Ton 2.44" Stroke, Low Profile Single Acting Cylinder
LOW PROFILE SINGLE ACTING CYLINDER
BVA Hydraulics
Model: HL3002
Features:
- Compact design for use in confined spaces
- Rod wiper seals out dirt & contaminations
- Specially designed rectangular return spring ensures smooth retraction and long life
- Industrial hard-chrome plated ram eliminates scratching & corrosion
- Plunger end grooved to reduce load slippage
- Includes high-flow ball coupler and dust cap
- Full compliance under ANSI B30.1 standards
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Cylinder Effective Area (in²) |
Internal Pressure at Capacity (psi) |
Oil Capacity (in³) |
Weight (Lbs) |
| 30 | 2.44 | HL3002 | 6.49 | 9,245 | 15.84 | 15.0 |
Documents:
Low Profile Single Acting Cylinders Spec Sheet
Parts/Owner's Manual
