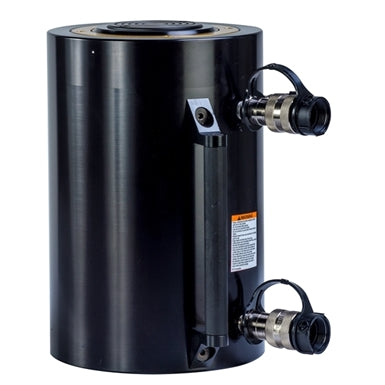

BVA | HUD10002, 100 Ton 2" Stroke, Aluminum Double Acting Cylinder
ALUMINUM DOUBLE ACTING CYLINDER
BVA Hydraulics
Model: HUD10002
Features:
- Lightweight aluminum alloy construction
- Up to 60 percent lighter than comparable tonnage steel cylinders
- Convenient carry handle on 50, 75, 100 and 150 ton models
- Hard anodized aluminum rod provides extra protection against corrosion and wear
- Steel protective plate on cylinder base
- Maximum working pressure: 10,000 psi / 700 bar
| Stroke (in) |
Model Number |
Max Cylinder Push / Pull |
Cylinder Effective Push / Pull |
Oil Capacity Push / Pull |
Weight (Lbs) |
| 2 | HUD10002 | 100.00 / 23.75 | 20.60 / 4.75 | 41.20 / 9.40 | 42.0 |
Documents:
Aluminum Double Acting Cylinders Spec Sheet
Parts/Owner's Manual (30 thru 150 ton)
