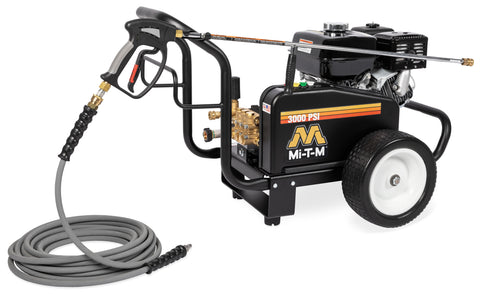

MI-T-M JCW-3003-2MHB JCW Series Gasoline Belt Drive
This belt drive unit is engineered for industrial cleaning tasks on agricultural, construction, and commercial jobsites. It features a belt-driven pump configuration designed to reduce vibration and extend component service life.
- Pressure3000psi
- Flow3.0gpm
- Engine270cc
- Net Weight178.00lbs
01Features & Build
-
Pump
- Includes Mi-T-M Pressure Relief Start system
- Forged brass manifold construction
- Integrated thermal relief valve
- Water filter with clear inspection sleeve
- ETL certified for US safety standards
-
Frame
- Powder-coated steel chassis
- Two-piece belt guard assembly
- 13-inch flat-free tires
02Specifications11
| PSI | 3000 |
|---|---|
| GPM | 3.0 |
| Displacement/ Engine | 270cc Honda GX270 OHV |
| Pump | AR |
| Unloader | Mi-T-M, Adjustable Pressure |
| Lance | 36 in. |
| Net Weight | 178.00 lbs. |
| Shipping Weight | 232.00 lbs. |
| Length | 39.50 in. |
| Width | 28.50 in. |
| Height | 26.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles - 0º, 15º, 25º and 40º
- 50-foot x 3/8-inch non-marking hose
- Insulated trigger gun
04Optional Accessories3
- CX-0005Insulated Dual Lance. Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch
- CX-0082External Bypass System. Allows more water into the system to protect from heat build-up
- CX-0085External Bypass System. Allows more water into the system to protect from heat build-up
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearAR Pump
- 3 YearHonda Engine
- 1 YearMi-T-M Unloader
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 232.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
