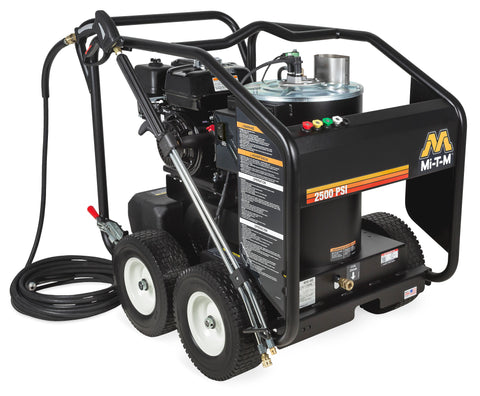

MI-T-M HSP-2503-0MMH HSP Series Gasoline Direct Drive
This pressure washer removes grease and oil from shop floors and equipment using an Electro Magnetic Firing system. It is designed for professional contractors and features a 196cc Honda engine for reliable power.
- Pressure2500psi
- Flow2.6gpm
- Engine196cc
- Net Weight295.00lbs.
01Features & Build
-
Pump
- Unloader valve with stainless-steel and brass construction
- Forged brass manifold
- Integrated thermal relief valve
- ETL certified for US and Canada
-
Frame
- Powder-coated steel frame with reinforced design and center-balanced lift point
- 13-inch flat-free tires
-
Components
- Top-fired powder-coated heat exchanger
- Burner compatible with No. 1 or No. 2 diesel or kerosene; not approved for bio-fuel
-
Miscellaneous
- Temperature rise of 150°F/66°C above ambient with 200°F maximum outlet temperature
02Specifications13
| PSI | 2500 |
|---|---|
| GPM | 2.6 |
| Displacement/ Engine | 196cc Honda GX200 OHV |
| Pump | Mi-T-M |
| Engine Fuel Tank Capacity | 0.83 gallon |
| Burner Fuel Tank Capacity | 4.0 gallon |
| Burner Fuel Cons. | 1.53 gph |
| BTU Per Hour | 210,000 |
| Net Weight | 295.00 lbs. |
| Shipping Weight | 411.00 lbs. |
| Length | 43.00 in. |
| Width | 29.50 in. |
| Height | 36.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles - 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch steel wire-braided hose
- Adjustable pressure insulated dual lance with trigger gun
04Optional Accessories3
- HX-0233Adjustable Thermostat. Operator is able to adjust outlet water temperature between 98°-248°F
- HX-0234Low Pressure Detergent Injector. Allows the user to apply the recommended detergents
- HX-0236Hour Meter. Displays the number of hours unit has been in operation
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearMi-T-M Pump
- 3 YearCoil
- 3 YearHonda Engine
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 411.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
