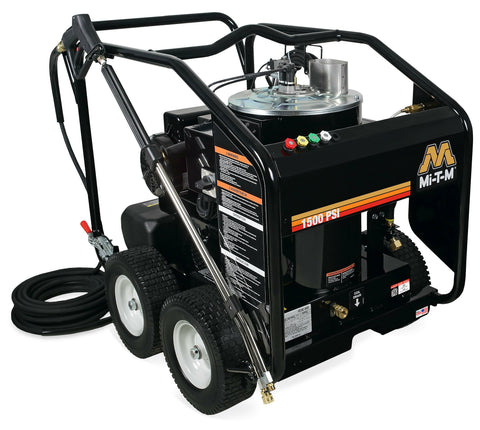

MI-T-M HSE-1502-0MG10 HSE Series Electric Direct Drive

• Pump

  • Factory-preset unloader valve
  • Forged brass manifold construction
  • Integrated thermal relief valve
  • High-pressure detergent injection system

• Motor

  • Totally enclosed fan-cooled motor with thermal overload protection
  • 35-foot power cord with NEMA 5-20P plug

• Frame

  • Reinforced powder coated steel frame with center-balanced lift point
  • 13-inch flat-free tires

• Components

  • Energy-efficient top-fired heat exchanger
  • Burner compatible with No. 1 or No. 2 diesel or kerosene; not approved for bio-fuel

• Miscellaneous

  • Temperature rise of 150°F/66°C above ambient with 225°F maximum outlet temperature
  • ETL certified for US and Canada

Specifications are supplied by the manufacturer and are subject to change without notice.

• Quick connect nozzles - 0°, 15°, 25° and 40°
• 50-foot x 3/8-inch steel wire-braided hose
• Adjustable pressure insulated dual lance with trigger gun

• HX-0235Hour Meter. Displays the number of hours unit has been in operation
• HX-0246300°F Steam. Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
• HX-0308Adjustable Thermostat. Operator is able to adjust outlet water temperature between 86°-248°F

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• 7 YearGeneral Pump
• 3 YearCoil
• 1 YearElectric Motor

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

• Product Sheet (PDF)
• Product Manual (PDF)
