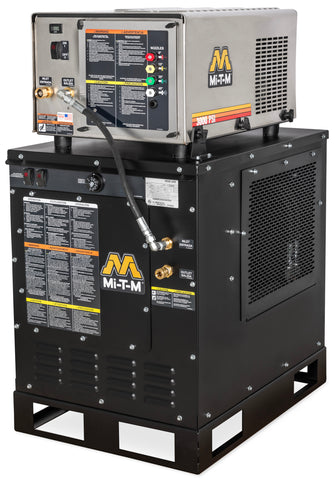

MI-T-M HAE-3004-0E4G HAE Series All-Electric Belt Drive

• Pump

  • Factory-preset unloader valve
  • Stainless-steel and brass unloader construction
  • Forged brass manifold
  • Integrated thermal relief valve

• Motor

  • Open drip-proof motor with thermal overload protection
  • Manual on/off power switch

• Frame

  • Stainless-steel base and frame assembly
  • Vibration-dampening rubber isolators

• Component

  • Automatic time delay shutdown system
  • Integrated hour meter

• Heat Exchanger

  • Patented cartridge design for on-demand hot water
  • Temperature rise of 130°F achieved in 3 to 5 minutes
  • Adjustable thermostat control
  • Dedicated on/off power switch
  • Powder-coated steel frame
  • Stainless-steel coils housed in aluminum casings
  • ETL certified for US and Canada

Specifications are supplied by the manufacturer and are subject to change without notice.

• Quick connect nozzles - 0°, 15°, 25° and 40°
• External downstream detergent injector with detergent nozzle
• 50-foot x 3/8-inch wire-braided black hose
• Adjustable pressure insulated dual lance with trigger gun

• HX-0298Remote Box. Adds control box, may be mounted away from unit to control on/off, controls the hot water heater and cold water pump
• HX-0307Auto Start/Stop. When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• 7 YearGeneral Pump
• 1 YearElectric Motor

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

• Product Sheet (PDF)
• Product Manual (PDF)
