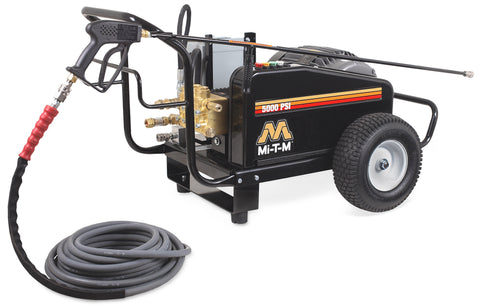

MI-T-M CW-5004-0ME3 CW Premium Series Electric Belt Drive
This belt-drive electric pressure washer is designed for cleaning equipment, floors, and walls in commercial facilities. It features a heavy-duty 15.0 HP motor for consistent high-pressure output.
- Pressure5000psi
- Flow4.0gpm
- Motor15.0HP
- Weight431.00lbs
01Features & Build
-
Pump
- External bypass system prevents heat accumulation
- Forged brass manifold construction
- Integrated thermal relief valve
- Water filter includes a clear sleeve for visual screen inspection
-
Motor
- Totally enclosed fan-cooled motor with thermal overload protection
- Equipped with a 10-foot power cord
- NEMA 15-50P plug configuration
-
Frame
- Powder-coated steel chassis
- Fully enclosed belt guard
- 13-inch flat-free tires
02Specifications10
| PSI | 5000 |
|---|---|
| GPM | 4.0 |
| Horsepower/Motor | 15.0 HP, 230V, 3Ø, 40.0A |
| Pump | General |
| Plug Type | NEMA 15-50P |
| Net Weight | 431.00 lbs. |
| Shipping Weight | 505.00 lbs. |
| Length | 46.00 in. |
| Width | 32.50 in. |
| Height | 30.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles - 0º, 15º, 25º and 40º
- 50-foot x 3/8-inch non-marking hose
- 48-inch lance with insulated trigger gun
04Optional Accessories1
- CX-0094Stationary Option. This option will remove the existing tall handle and wheels, which will be replaced with a short handle and rubber feet for stationary applications
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearGeneral Pump
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 505.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
