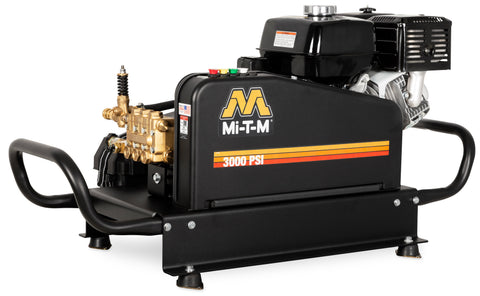

MI-T-M CTM-3005-H6G0M CTM Series Gasoline Truck-Mount Belt Drive
This cold-water truck-mount system is engineered for mobile cleaning operations. It is designed for contractors requiring high-volume output, featuring a belt-drive pump configuration for extended service life.
- Pressure3000psi
- Flow5.0gpm
- Engine389cc
- Net Weight210.00lbs
01Features & Build
-
Installation
- Designed for truck or trailer bed mounting
- Requires a minimum 200-gallon water tank (not included)
-
Pump
- Includes Mi-T-M Pressure Relief Start system
- External bypass system prevents heat accumulation
- Forged brass manifold construction
- Integrated thermal relief valve
- Water filter with clear inspection sleeve
-
Engine
- Recoil start mechanism
-
Frame
- Powder-coated steel chassis
- 1¼-inch diameter tube handles
- Two-piece enclosed belt guard
- Mounting plate equipped with rubber vibration isolators
02Specifications11
| PSI | 3000 |
|---|---|
| GPM | 5.0 |
| Displacement/ Engine | 389cc Honda GX390 OHV |
| Pump | General |
| Unloader | Mi-T-M, Factory Preset |
| Fuel Tank Capacity | 1.6 gallons |
| Net Weight | 210.00 lbs. |
| Shipping Weight | 260.00 lbs. |
| Length | 46.00 in. |
| Width | 20.50 in. |
| Height | 24.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included1
- Quick connect nozzles – 0°, 15°, 25° and 40°
04Optional Accessories2
- CX-0127Electric Start - Battery Not Included. For easy starting
- CX-0128Battery Tray, Box and 2-Foot of Cables. Attaches to engine side of unit
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearGeneral Pump
- 3 YearHonda Engine
- 1 YearMi-T-M Unloader
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 260.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
