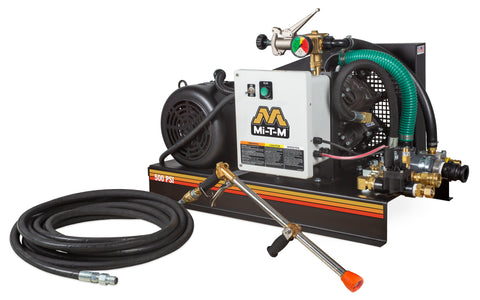

MI-T-M CHV-0525-1ME1 CHV Series Cold Water Pressure Washer
Part number: CHV-0525-1ME1
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times
This high-volume cold water pressure washer is designed for clearing heavy solids from industrial equipment. It utilizes a belt-drive pump configuration to manage high flow rates at lower pressures.
- Flow25gpm
- Pressure500psi
- Motor10.0HP
- Voltage230V
01Features & Build
-
System Components
- Belt-drive diaphragm pump equipped with a pulsation dampener
- Totally enclosed fan-cooled (TEFC) electric motor
- Pressure regulator featuring a manual dump lever and integrated gauge
- Makeup water shut-off solenoid and outlet-side flow switch
- Stainless-steel long-range nozzle
- 50-foot by 3/4-inch non-marking hose with quick-connect fittings
- High-volume spray gun with adjustable pattern control
02Specifications7
| GPM @ PSI | 25 @ 500 |
|---|---|
| Horsepower/Motor | 10.0 HP, 230V, 1Ø, 41.5A |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 432.00 lbs. |
| Length | 38.00 in. |
| Width | 23.50 in. |
| Height | 24.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories4
- CX-0072600-Gallon Tank. 600-gallon tank with stand, suction hose and float
- CX-0073460V, 3 Phase Models. For when you have 460V of power available
- CX-007418-Inch Stand. Raises unit off of ground
- CX-0075Remote Start Control Box. For when unit is not near spraying location
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Documents & Downloads2
05Shipping & Ordering
This unit ships at a weight of 432.00 lbs. Freight costs are quoted based on the specific delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
