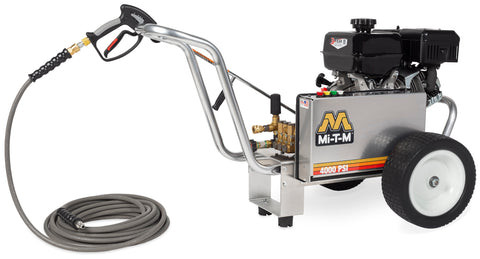

MI-T-M CBA-4004-PMAM Job Pro® Aluminum Series Gasoline Belt Drive
This belt-drive pressure washer is designed for contractors performing routine heavy-duty cleaning on concrete and masonry. It features a 420cc overhead valve engine for consistent power delivery.
- Pressure4000psi
- Flow3.4gpm
- Engine420cc
- Net Weight165.00lbs
01Features & Build
-
Pump
- Belt-driven triplex piston AR pump
- Mi-T-M Pressure Relief Start system to prevent pressure accumulation
- Stainless-steel and brass Mi-T-M unloader
- Forged brass manifold
- Thermal relief valve
- Water filter with clear inspection sleeve
- Intertek Certified - US
-
Frame
- Corrosion-resistant aluminum frame and base plate with 1-1/4-inch tubular handles
- 13-inch flat-free tires
02Specifications11
| PSI | 4000 |
|---|---|
| GPM | 3.4 |
| Displacement/ Engine | 420cc Mi-T-M OHV |
| Pump | AR |
| Unloader | Mi-T-M, Adjustable Pressure |
| Recommended Usage | 30-40 Hours/Week |
| Net Weight | 165.00 lbs. |
| Shipping Weight | 215.00 lbs. |
| Length | 47.00 in. |
| Width | 27.50 in. |
| Height | 28.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included4
- Quick connect nozzles – 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch non-marking high pressure hose with quick connects
- Insulated trigger gun with safety lock-off
- 48-inch lance with rubber grip
04Optional Accessories2
- CX-0005Insulated Dual Lance. Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch
- CX-0082External Bypass System. Allows more water into the system to protect from heat build-up
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Documents & Downloads1
06Shipping & Ordering
This unit ships crated with a shipping weight of 215.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
