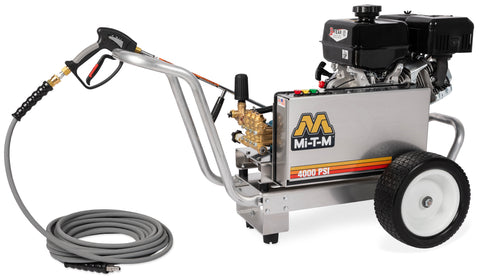

MI-T-M CBA-4004-1MCM CBA Aluminum Series Gasoline Belt Drive
This industrial belt drive pressure washer is designed for heavy-duty cleaning applications. It features a lightweight aluminum frame construction for increased portability on job sites.
- Pressure4000psi
- Flow3.7gpm
- Engine420cc
- Net Weight156.00lbs
01Features & Build
-
Pump
- Includes Mi-T-M Pressure Relief Start system
- External bypass system prevents heat accumulation
- Forged brass manifold construction
- Integrated thermal relief valve
- Water filter features a clear sleeve for visual screen inspection
-
Frame
- Corrosion-resistant aluminum chassis
- Patented vibration isolation mounting plate
- Two-piece belt guard assembly
- 13-inch flat-free tires
02Specifications11
| PSI | 4000 |
|---|---|
| GPM | 3.7 |
| Displacement/ Engine | 420cc Mi-T-M OHV |
| Pump | CAT |
| Unloader | Adjustable Pressure |
| Lance | 48 in. |
| Net Weight | 156.00 lbs. |
| Shipping Weight | 206.00 lbs. |
| Length | 47.00 in. |
| Width | 27.50 in. |
| Height | 28.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles – 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch non-marking hose
- Insulated trigger gun
04Optional Accessories1
- CX-0136Electric Start. Sealed battery included - For easy starting
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearCAT Pump
- 3 YearMi-T-M Engine
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 206.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
