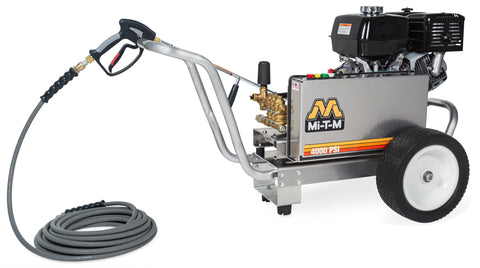

MI-T-M CBA-4004-1MCH CBA Aluminum Series Gasoline Belt Drive
This industrial pressure washer provides the cleaning force required for heavy grime and paint removal. It is designed for contractors who require a portable, belt-driven unit featuring a 389cc Honda GX390 engine.
- Pressure4000psi
- Flow3.7gpm
- Engine389cc
- Net Weight156.00lbs
01Features & Build
-
Pump
- Pressure Relief Start system for easier ignition
- External bypass system prevents heat accumulation
- Forged brass manifold construction
- Integrated thermal relief valve
- Water filter includes a clear sleeve for visual inspection
- ETL certified for US safety standards
-
Frame
- Corrosion-resistant aluminum chassis
- Vibration isolation plate design
- Two-piece belt guard assembly
- 13-inch flat-free tires
02Specifications11
| PSI | 4000 |
|---|---|
| GPM | 3.7 |
| Displacement/ Engine | 389cc Honda GX390 OHV |
| Pump | CAT |
| Unloader | Adjustable Pressure |
| Lance | 48 in. |
| Net Weight | 156.00 lbs. |
| Shipping Weight | 206.00 lbs. |
| Length | 47.00 in. |
| Width | 27.50 in. |
| Height | 28.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles – 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch non-marking hose
- Insulated trigger gun
04Optional Accessories1
- CX-0134Electric Start. Sealed battery included - For easy starting
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearCAT Pump
- 3 YearHonda Engine
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 206.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
