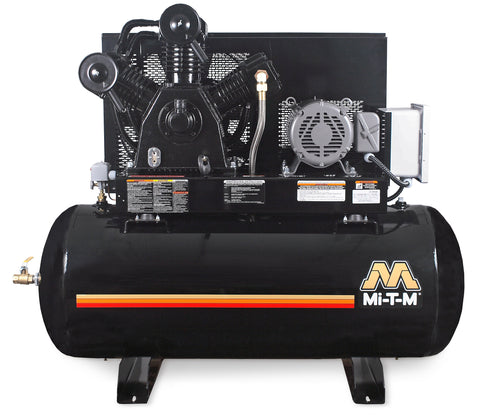

MI-T-M AES Series 15.0 HP Simplex Horizontal - 120-Gallon AES-20315-120H

• Compressor Pump

  • Cast iron construction
  • Splash lubrication system
  • Stainless-steel braided discharge hose
  • High-capacity canister intake filter
  • Visual oil level sight glass

• Motor

  • Industrial-grade low RPM motor
  • Magnetic starter with integrated thermal overload protection

• Frame

  • Powder-coated ASME-certified receiver tank
  • 3/16-inch steel base plate for vibration dampening
  • Powder-coated two-piece belt guard
  • Removable base plate for flexible mounting configurations

• Components

  • ASME-certified safety valves
  • Tank pressure gauge
  • Integrated hour meter
  • Large-diameter flywheel
  • Intake filter and silencer assembly
  • Tank shut-off valve
  • Pressure switch set for 145 to 175 PSI operation

• Models Available

  • AES-20315-120H: 200V, 3-phase, 44.0A, 1028 lbs net weight
  • AES-23315-120H: 230V, 3-phase, 38.0A, 1013 lbs net weight
  • AES-46315-120H: 460V, 3-phase, 19.0A, 1013 lbs net weight
  • ASME Boiler & Pressure Vessel Code U-stamp certification

Specifications are supplied by the manufacturer and are subject to change without notice.

• IX-0001Vibration Isolator Pads. Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
• IX-0004After Cooler. Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
• IX-0006Electric Tank Drain. Automatically drains liquid from compressor tank
• IX-0032Pneumatic Tank Drain. Automatically drains liquid from compressor tank
• IX-0064Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level
• IX-0065Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level
• IX-0066Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• AES-20315-120H
• AES-23315-120H
• AES-46315-120H

• 2 YearPump Exchange
• 1 YearElectric Motor

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
