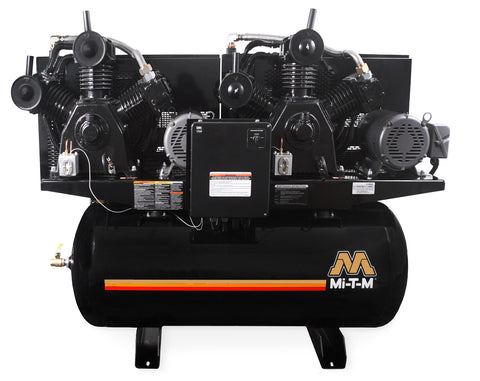

MI-T-M AED M Series 15.0 HP Duplex Horizontal - 120-Gallon AED-20315-120HM
This duplex horizontal air compressor provides high-volume compressed air for industrial facilities requiring redundant pumping capacity. It features a dual-motor configuration mounted on a 120-gallon ASME-certified receiver tank.
- Flow93.0cfm
- Pressure175psi
- Tank120gallon
- Weight1646lbs
01Features & Build
-
Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- High-capacity canister intake filter
- Integrated oil level sight glass
-
Motor
- Industrial-duty low RPM motor
- Magnetic starter with thermal overload protection
-
Frame
- Powder-coated ASME-certified receiver tank
- 3/16-inch steel base plate for vibration dampening
- Two-piece powder-coated belt guard
- Removable base plate design for installation flexibility
-
Components
- ASME-certified safety valves
- Tank pressure gauge
- Integrated hour meter
- Large-diameter flywheel
- Intake filter and silencer assembly
- Tank shut-off valve
- Three-position switch for lead/lag or alternating operation
- Dual-range start/stop controls at 110-140 PSI and 145-175 PSI
-
Models Available
- 200V, 3-phase, 88.0A configuration
- 230V, 3-phase, 76.0A configuration
- 460V, 3-phase, 38.0A configuration
- ASME Boiler and Pressure Vessel Code U-certified
02Specifications9
| CFM @ PSI | 93.0 @ 175 |
|---|---|
| Pump RPM | 810 |
| Tank Size | 120-gallon |
| Bolt Down (LxW) | 34.5 x 23.5 in. |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 0.00 lbs. |
| Length | 74.00 in. |
| Width | 26.50 in. |
| Height | 58.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Models & Part Numbers3
- AED-20315-120HM
- AED-23315-120HM
- AED-46315-120HM
04Warranty
- 2 YearPump Exchange
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 1796 lbs. Freight is quoted to the delivery address.
