MI-T-M Advanced Wash Water Recycle Systems - WLP-20Series WLP-20AB-0M11
Part number: WLP-20AB-0M11
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times

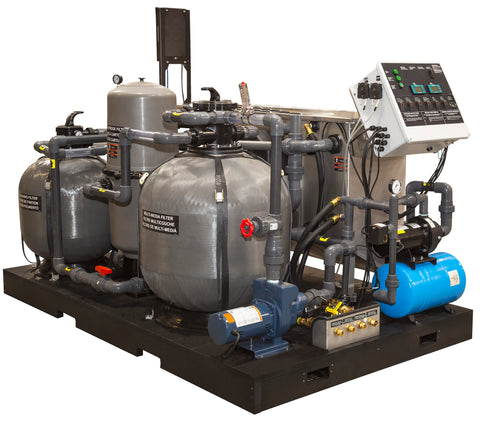

This wash water recycle system removes free hydrocarbons and filters water for reuse in pressure washers. It is designed for industrial facilities managing wash water runoff and features a corrosion-resistant poly skid construction.
- Flow Rate0-20GPM
- Media Filter550lb.
- Carbon Filter110lb.
01Features & Build
-
System Components
- Non-corrosive poly skid base
- Accessible pump configuration
- Corona discharge ozone treatment system
- Integrated oil, water, and solids separator
- ORP and pH control system
- Customized multi-media filtration
- Activated carbon filtration
- 1.0 HP surface-mount sump pump
- ETL listed NEMA-4 rated corrosion-proof control panel
-
Recommended Applications
- Rental yards and heavy equipment dealers
- Trucking and diesel repair facilities
- Military bases and truck rental fleets
- Forklift washing and aircraft maintenance
- Shipyards and municipal DOT operations
- Oil fields and engine manufacturing
-
Model Specifications
- WLP-20-0M10: 230V, 1Ø, 25.0A, 400 sq. ft. cartridge filter
- WLP-20AB-0M11: 230V, 1Ø, 25.0A
- WLP-20AB-0M31: 230V, 3Ø, 13.0A
-
Pit System Requirements
- Proper pit system design is required for effective wash water treatment and system performance.
02Specifications8
| Flow Rate | 0-20 GPM |
|---|---|
| Media Filter (Custom Mix) | 550 lb. |
| Carbon Filter (Degassed) | 110 lb. |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 2435.00 lbs. |
| Length | 96.00 in. |
| Width | 60.00 in. |
| Height | 52.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories1
- WX-0054460V, 3 Phase. Upgrades 230V models to operate at 460V
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Models & Part Numbers3
- WLP-20-0M10
- WLP-20AB-0M11
- WLP-20AB-0M31
05Documents & Downloads1
06Shipping & Ordering
This unit ships crated with a shipping weight of 2435.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
