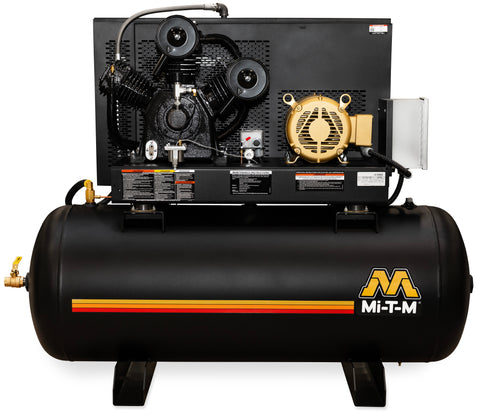

MI-T-M ADS M Series 10.0 HP Simplex Horizontal - 120-Gallon ADS-20310-120HM
This 10.0 HP simplex horizontal air compressor is designed for high-demand industrial applications. It features a heavy-duty cast iron pump and a 120-gallon ASME-certified receiver tank for consistent air delivery.
- Flow34.2cfm
- Pressure175psi
- Tank120gallon
- Pump Speed990rpm
01Features & Build
-
Compressor Pump
- Cast iron construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Integrated oil level sight glass
-
Motor
- Industrial low-RPM motor
- Magnetic starter with thermal overload protection
-
Frame
- Powder-coated ASME-certified receiver tank
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
- Removable base plate for installation flexibility
-
Components
- ASME-certified safety valves
- Tank pressure gauge
- Integrated hour meter
- Large-diameter flywheel
- Intake filter and silencer
- Tank shut-off valve
- Start/stop controls factory set at 145 to 175 PSI
-
Models Available
- ADS-23110-120HM: 230V, 1-phase, 39.0A
- ADS-20310-120HM: 200V, 3-phase, 30.8A
- ADS-23310-120HM: 230V, 3-phase, 26.8A
- ADS-46310-120HM: 460V, 3-phase, 13.4A
- ASME Boiler & Pressure Vessel Code U-certified
02Specifications9
| CFM @ PSI | 34.2 @ 175 |
|---|---|
| Pump RPM | 990 |
| Tank Size | 120-gallon |
| Bolt Down (LxW) | 34.5 x 23.5 in. |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 0.00 lbs. |
| Length | 74.00 in. |
| Width | 26.50 in. |
| Height | 58.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Models & Part Numbers4
- ADS-23110-120HM
- ADS-20310-120HM
- ADS-23310-120HM
- ADS-46310-120HM
04Warranty
- 2 YearPump Exchange
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 996 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
