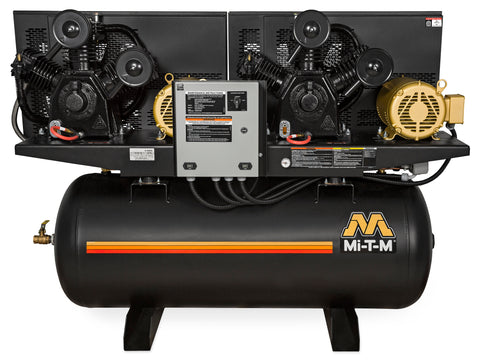

MI-T-M ADD Series 10.0 HP Duplex Horizontal - 120-Gallon ADD-20310-120H

• Compressor Pump

  • Cast iron construction
  • Splash lubrication system
  • Stainless-steel braided discharge hose
  • Large canister intake filter
  • Oil level sight glass

• Motor

  • Industrial low RPM motor
  • Magnetic starter with thermal overload protection

• Frame

  • Powder-coated ASME-certified receiver tank
  • 3/16-inch base plate for vibration reduction
  • Powder-coated two-piece belt guard
  • Removable base plate for flexible mounting

• Components

  • ASME safety valves
  • Tank pressure gauge
  • Integrated hour meter
  • Large flywheel
  • Intake filter and silencer
  • Tank shut-off valve
  • 3-position switch for lead/lag and alternating control
  • Start/stop pressure settings at 110-140 PSI and 145-175 PSI

• Models Available

  • ADD-20310-120H: 200V, 3-phase, 61.6A, 1183 lb. net weight
  • ADD-23310-120H: 230V, 3-phase, 53.6A, 1163 lb. net weight
  • ASME Boiler & Pressure Vessel Code U-certified

Specifications are supplied by the manufacturer and are subject to change without notice.

• IX-0001Vibration Isolator Pads. Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
• IX-0006Electric Tank Drain. Automatically drains liquid from compressor tank
• IX-0032Pneumatic Tank Drain. Automatically drains liquid from compressor tank
• IX-0034After Cooler. Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
• IX-0064Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level
• IX-0065Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level
• IX-0066Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• ADD-20310-120H
• ADD-23310-120H

• 2 YearPump Exchange
• 1 YearElectric Motor

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

• Product Sheet (PDF)
• Product Manual (PDF)
