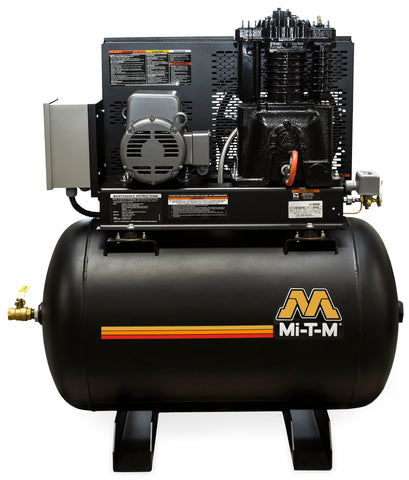

MI-T-M ACS Series 7.5 HP Simplex Horizontal - 80-Gallon ACS-46375-80H
This simplex horizontal air compressor is designed for industrial applications requiring consistent high-pressure air. It features a 7.5 HP motor and a durable cast iron pump assembly for reliable operation.
- Flow23.5cfm
- Pressure175psi
- Tank80gallon
- Pump Speed1250rpm
01Features & Build
-
Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- High-capacity canister intake filter
- Oil level sight glass
-
Motor
- Industrial low-RPM motor
- Magnetic starter with thermal overload protection
-
Frame
- Powder-coated ASME-certified receiver tank
- 3/16-inch base plate for vibration reduction
- Two-piece powder-coated belt guard
- Removable base plate for installation flexibility
-
Components
- ASME-certified safety valves
- Tank pressure gauge
- Integrated hour meter
- Large-diameter flywheel
- Intake filter and silencer
- Tank shut-off valve
- Start/stop control set at 145 to 175 PSI
-
Models Available
- ACS-23175-80H: 230V, 1-phase, 31.0A
- ACS-23375-80H: 230V, 3-phase, 20.0A
- ACS-46375-80H: 460V, 3-phase, 10.0A
02Specifications9
| CFM @ PSI | 23.5 @ 175 |
|---|---|
| Pump RPM | 1250 |
| Tank Size | 80-gallon |
| Bolt Down (LxW) | 20.75 x 23.5 in. |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 0.00 lbs. |
| Length | 52.00 in. |
| Width | 26.50 in. |
| Height | 53.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories8
- IX-0001Vibration Isolator Pads. Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
- IX-0006Electric Tank Drain. Automatically drains liquid from compressor tank
- IX-0052After Cooler. Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
- IX-0056Pneumatic Tank Drain. Automatically drains liquid from compressor tank; unit cannot include an after cooler
- IX-0057Pneumatic Tank Drain. Automatically drains liquid from compressor tank; you must also have IX-0052 after cooler option
- IX-0061Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level
- IX-0062Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level
- IX-0063Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Models & Part Numbers3
- ACS-23175-80H
- ACS-23375-80H
- ACS-46375-80H
05Warranty
- 2 YearPump Exchange
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 638 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
