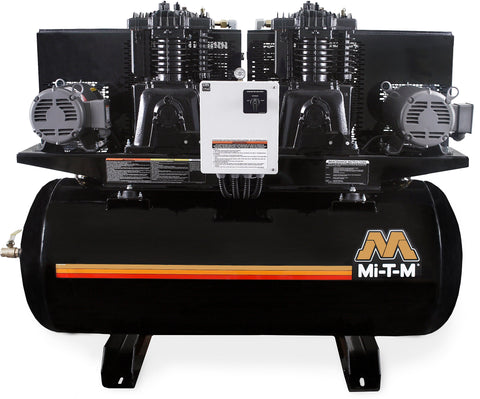

MI-T-M ACD Series 7.5 HP Duplex Horizontal - 120-Gallon ACD-23375-120H

• Compressor Pump

  • Cast iron pump construction
  • Splash lubrication system
  • Stainless-steel braided discharge hose
  • High-capacity canister intake filter
  • Integrated oil level sight glass

• Motor

  • Industrial-grade low RPM motor
  • Magnetic starter with thermal overload protection

• Frame

  • Powder-coated ASME-certified receiver tank
  • 3/16-inch base plate for vibration dampening
  • Two-piece powder-coated belt guard
  • Removable base plate for installation versatility

• Components

  • ASME-certified safety valves
  • Tank pressure gauge
  • Integrated hour meter
  • Large-diameter flywheel
  • Intake filter and silencer
  • Tank shut-off valve
  • Three-position switch for lead/lag or alternating operation
  • Dual-range start/stop controls set at 110-140 PSI and 145-175 PSI

• Models Available

  • ACD-23175-120H: 230V, 1-phase, 62.0A, 1049 lb. shipping weight
  • ACD-23375-120H: 230V, 3-phase, 40.0A, 969 lb. shipping weight
  • ASME Boiler & Pressure Vessel Code U-certified

Specifications are supplied by the manufacturer and are subject to change without notice.

• IX-0001Vibration Isolator Pads. Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
• IX-0006Electric Tank Drain. Automatically drains liquid from compressor tank
• IX-0032Pneumatic Tank Drain. Automatically drains liquid from compressor tank
• IX-0033After Cooler. Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
• IX-0061Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level
• IX-0062Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level
• IX-0063Low Oil Monitor. Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• ACD-23175-120H
• ACD-23375-120H

• 2 YearPump Exchange
• 1 YearElectric Motor

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
