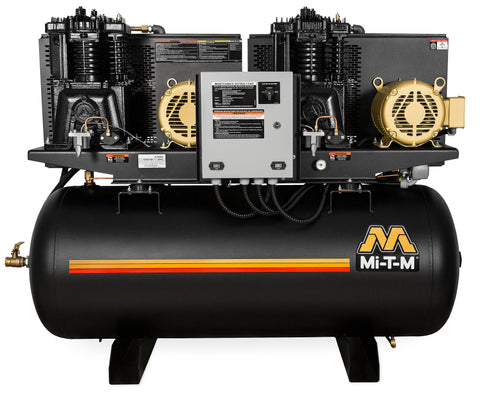

MI-T-M ACD M Series 7.5 HP Duplex Horizontal - 120-Gallon ACD-23375-120HM
This duplex horizontal air compressor is designed for high-demand industrial applications requiring consistent airflow. It features a 7.5 HP dual-pump configuration mounted on a 120-gallon ASME-certified receiver tank.
- Flow46.4cfm
- Pressure175psi
- Tank120gallon
- Pump Speed1250rpm
01Features & Build
-
Compressor Pump
- Cast iron construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- High-capacity canister intake filter
- Integrated oil level sight glass
-
Motor
- Industrial-grade low RPM motor
- Magnetic starter with thermal overload protection
-
Frame
- Powder-coated ASME-certified receiver tank
- 3/16-inch base plate for vibration dampening
- Two-piece powder-coated belt guard
- Removable base plate for installation versatility
-
Components
- ASME-certified safety valves
- Tank pressure gauge
- Integrated hour meter
- High-inertia flywheel
- Intake filter and silencer
- Tank shut-off valve
- Three-position switch for lead/lag or alternating operation
- Dual-stage pressure control set at 110-140 PSI and 145-175 PSI
-
Models Available
- ACD-23175-120HM: 230V, 1-phase, 62.0A
- ACD-20375-120HM: 200V, 3-phase, 46.0A
- ACD-23375-120HM: 230V, 3-phase, 40.0A
- ACD-46375-120HM: 460V, 3-phase, 20.0A
- ASME Boiler & Pressure Vessel Code U-certified
02Specifications9
| CFM @ PSI | 46.4 @ 175 |
|---|---|
| Pump RPM | 1250 |
| Tank Size | 120-gallon |
| Bolt Down (LxW) | 34.5 x 23.5 in. |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 0.00 lbs. |
| Length | 74.00 in. |
| Width | 26.50 in. |
| Height | 58.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Models & Part Numbers4
- ACD-23175-120HM
- ACD-20375-120HM
- ACD-23375-120HM
- ACD-46375-120HM
04Warranty
- 2 YearPump Exchange
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
