MI-T-M ACD M Series 5.0 HP Duplex Horizontal - 120-Gallon ACD-23305-120HM

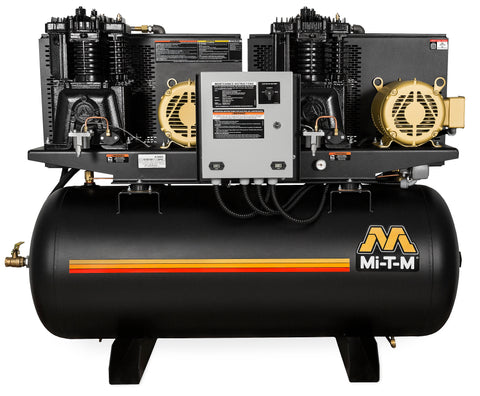

This duplex horizontal air compressor is designed for high-demand industrial applications requiring consistent airflow. It features a dual-pump configuration mounted on a 120-gallon ASME-certified receiver tank.
- Flow36.0cfm
- Pressure175psi
- Tank120gallon
- Net Weight881lbs
01Features & Build
-
Compressor Pump
- Cast iron construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
-
Motor
- Industrial low-RPM motor
- Magnetic starter with thermal overload protection
-
Frame
- Powder-coated ASME-certified receiver tank
- 3/16-inch base plate for vibration dampening
- Powder-coated two-piece belt guard
- Removable base plate for installation flexibility
-
Components
- ASME safety valves
- Tank pressure gauge
- Integrated hour meter
- Large flywheel
- Intake filter/silencer
- Tank shut-off valve
- 3-position switch for lead/lag and alternating control
- Start/stop control settings at 110–140 PSI and 145–175 PSI
-
Models Available
- ACD-23305-120HM: 230V, 3-phase, 27.6A
- ACD-46305-120HM: 460V, 3-phase, 13.8A
- ASME Boiler & Pressure Vessel Code U-certified
02Specifications9
| CFM @ PSI | 36.0 @ 175 |
|---|---|
| Pump RPM | 860 |
| Tank Size | 120-gallon |
| Bolt Down (LxW) | 34.5 x 23.5 in. |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 0.00 lbs. |
| Length | 74.00 in. |
| Width | 26.50 in. |
| Height | 58.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Models & Part Numbers2
- ACD-23305-120HM
- ACD-46305-120HM
04Warranty
- 2 YearPump Exchange
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
