MI-T-M Above-Ground Water/Oil/Solids Separators - WOS-30Series WOS-30-0M10
Part number: WOS-30-0M10
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times

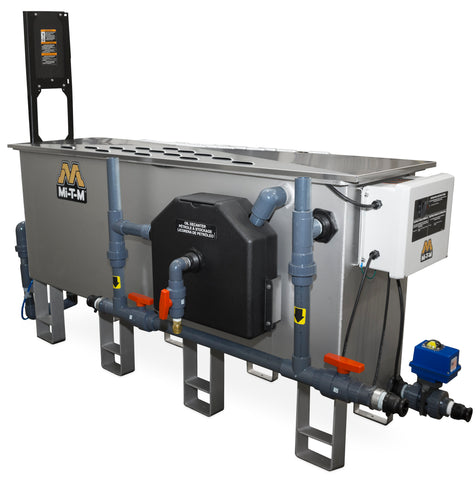

This above-ground separator removes free oils and suspended solids from wash water to facilitate compliant sanitary sewer discharge. It is designed for industrial wash bays and features a 3-stage stainless-steel tank construction.
- Flow Rate0-30GPM
- Coalescing Media1,152sq. ft.
- Tank Capacity340gallon
- Shipping Weight865.00lbs.
01Features & Build
-
System Components
- Integrated corona discharge ozone system
- Oil skimmer and decanter assembly
- Dedicated discharge port
- High-surface area oil coalescing media
- 1.0 HP surface-mount sump pump
- 3-stage stainless-steel tank with sloped bottom for solids removal
- ETL listed NEMA-4 rated corrosion-proof control panel
- ETL certified for US and Canada
-
Recommended Applications
- Rental yards and heavy equipment dealers
- Trucking facilities and rental fleets
- Military bases and shipyards
- Diesel repair and engine manufacturing facilities
- Forklift washing and aircraft maintenance operations
- Municipal and state DOT maintenance yards
- Oil field service sites
-
Model Specifications
- WOS-30-0M10: 120V, 1-phase, 15.0A; 1.0 HP, 120V in-line strainer pump
- WOS-30-0M30: 208-230V, 3-phase, 5.0A; 1.0 HP, 230V in-line strainer pump
-
Pit System Requirements
- Proper pit design is required to capture wash water before treatment and serves as the primary stage for effective water recycling.
02Specifications8
| Flow Rate | 0-30 GPM |
|---|---|
| Coalescing Media | 1,152 sq. ft. |
| Tank Holding Capacity | 340 gallon |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 865.00 lbs. |
| Length | 97.00 in. |
| Width | 50.00 in. |
| Height | 44.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories3
- WX-0001Continuous Recirculation. Recirculates back to the pit to prevent water from becoming stagnant
- WX-0059230V, Single Phase. Upgrades 120V model to operate at 230V
- WX-0060460V, 3 Phase. Upgrades 208-230V model to operate at 460V
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Models & Part Numbers2
- WOS-30-0M10
- WOS-30-0M30
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 865.00 lbs. Freight costs are quoted based on the specific delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
