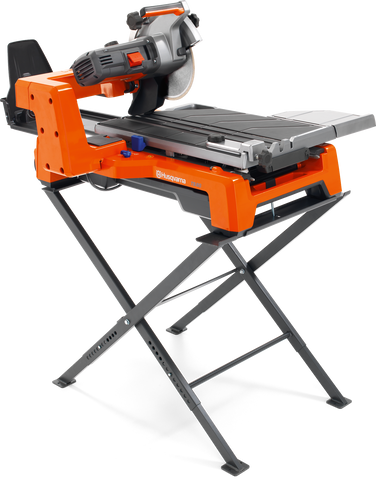

Husqvarna TS 60 | TILE SAW TS 60 2.3 hp | 120 V | 10" | 1-ph | 60 Hz | US | 966610701
Part Number: 966 61 07-01 (966610701)
The Husqvarna TS 60 is a professional-grade tile saw engineered for precision and cleanliness in indoor environments. Featuring a 2.3 hp, 120 V, 60 Hz single-phase motor, this 10-inch saw utilizes a refined cart and rail system to ensure straight, accurate cuts. The unit is equipped with a patented water and slurry recycling system that filters water for continuous reuse, minimizing mess and maintenance.
Technical Specifications:
- Power: 2.3 hp
- Voltage: 120 V
- Frequency: 60 Hz
- Blade Diameter: 10 inches
- Phase: 1-ph
- Article Number: 966610701 / 966 61 07-01
Integrated Elgard™ technology provides overload protection with LED status indicators, while Electronic SoftStart™ technology allows the motor to operate on standard, slow-acting fuses by managing incoming current.
Product Features
Clean work area
The Jet Stream Water Containment System keeps water and slurry in the cart trench, making it ideal for cutting indoors.
Easy transport
The low weight, foldable legs and stable wheels facilitate transportation.
Flexible cutting method
Switches between plunge cuts and mitre cuts with ease.
Ideal for long cutting
The maximum cutting length of 700 mm and the large cutting table allows you to cut 50x50 cm tiles diagonally.
Easy to clean table
The large removable cutting table is easy to clean.
No need to refill water
Thanks to the refined recycling system which cleans water for reuse.
Jet Stream Water Containment System
Keeps water and slurry in the cart trench, making it ideal for cutting indoors.
Adjustable cutting head
Enables bevel cuts between 22.5 and 45 degrees.
Overload protection
The ElgardTM overload protection system allows you to always cut at maximum speed, for best performance.
Elgard™
LED indication for machine overload provides increased productivity and motor life.
Easy angle cutting
Angle guide and adjustable stand are included to facilitate cutting.
Electronic SoftStart™
Provides starting with normal, slow acting fuses.
Smooth start with normal fuses
Softstart™ lowers incoming current to reduce amperage when starting the motor.
| Dimensions | |
|---|---|
| Packaging length | 1,000 mm |
| Packaging length (Calc) | 39.37 in |
| Packaging width | 750 mm |
| Packaging width (Calc) | 29.528 in |
| Packaging height | 700 mm |
| Packaging height (Calc) | 27.559 in |
| Article gross weight | 62,000 g |
| Article gross weight (Calc) | 136.687 lbs |
- 522468410 — BLADE GUARD TILE BLADE GUARD ASSY
- 510225451 — PLATE TILE PLATE SPLASH GRD MTG
- 522957003 — SCREW IHPANM ISO 7380 M5X12 SS-A2
- 734114609 — WASHER ISO 7089 5.3x10x1 SS
- 510225461 — SPLASH GUARD TILE REAR
- 510225462 — SPLASH GUARD TILE SIDE
- 574851102 — KNOB MITER GUIDE M8 X 1.25 X 30 6-LOBE
- 735311220 — E-CLIP SHAFTS 7x0.9 St PP
- 576682301 — NUT HEX M16 X 1.5 THIN DIN439B Z/P
- 576199103 — NOZZLE BLADE GUARD ASSY
- 724123401 — CHAIN ISO 7045 M 3 X 30 5.8 ZPB
- 731231001 — HEXAGON NUT ISO 4032 M3 8 St ZPB
- 725232971 — SCREW EHHM M5x16 8.8 ZPB
- 725545521 — SCREW IHSCM M8x30 10.9 ZPB
- 575636801 — FLANGE OUTER TILE SAW
- 575636401 — FLANGE INNER TILE SAW
- 584225501 — FLANGE INNER
- 725532701 — SCREW IHSCM ISO 4762 M 5 X 12 8.8 ZPB
- 523030901 — BEARING HOUSING MACHINED TSX0
- 525534501 — O-RING 52 x 3
- 574460501 — GASKET BEARING HOUSING TSX0
- 728828501 — SCREW IHSETM M4x6 St ZPB
- 525605401 — BALL BEARING 6003-2RSH
- 523022901 — LOCKING PLATE BEARING TSX0
- 725528701 — SCREW IHSCM ISO 4762 M 4 X 8 8.8 ZPB
- 581113401 — SHAFT OUTPUT ASSY
- 523024301 — SPRING LOCKING DISC TSX0
- 523022601 — BUTTON LOCKING DISC TSX0
- 725537401 — SCREW IHSCM ISO 4762 M 6 X 30 8.8 ZPB
- 734115201 — WASHER ISO 7089 6.4x12x1.6 St 200HV ZPB
- 578864201 — HANDLE KIT PLUNGE
- 734116541 — WASHER ISO 7093 8.4x24x2 St ZPB
- 581114101 — SEAL BLADE LOCK TS60
- 525605701 — SEAL GEAR BOX WIRE OPENING
- 585018701 — SEAL GEAR BOX DIA. 6
- 523054001 — NEEDLE BEARING HK1012
- 522946201 — BUSHING FLG OILITE FM1420-14
- 581014301 — DECAL WARNING TSX0
- 581014302 — DECAL WARNING TSX0 CANADA
- 574876302 — KNOB PLUNGE STOP L 76
- 584146901 — WASHER tight tolerance 8.1x18x2
- 522774403 — KNOB DEPTH ADJUST LOCK
- 522468417 — ARM TILE ARM SUPP W BUSHINGS
- 510225463 — BRACKET TILE Plunge lock
- 734117201 — WASHER ISO 7089 10.5x20x2 St 200HV ZPB
- 574626701 — BUSHING PLUNGE LOCK
- 585595005 — KNOB CPL M8x1.25 6G Large Knob
- 525805201 — MOTOR ASSY TSX0 110V UL
- 525805202 — MOTOR ASSY TSX0 230V EU
- 575335302 — SCREW IHSCM Internal Hexagon Socket Head Cap M 5 X 25 12.9 ZPB
- 510225435 — BRACKET TILE PIN PIVOT BRKT
- 510225433 — BRACKET TILE SWVL BRKT ANODIZED
- 521929401 — SPACER TORSION SPRING
- 522946301 — SPRING TORSION PLUNGE
- 580900502 — FILTER EMC FILTER TS60
- 577858001 — CABLE CLAMP
- 725528901 — SCREW IHSCM ISO 4762 M 4 X 10 8.8 ZPB
- 581577601 — DECAL WARNING
- 510225422 — ARM TILE SUPPORT ARM
- 510225472 — SAW TILE CAP SUPPORT ARM MTG
- 725550021 — SCREW IHSCM ISO 4762 M 10 X 45 10.9 ZPB
- 581720901 — COVER ARM
- 734114601 — WASHER M5 ISO 7089 5.3x10x1 St 200HV ZPB
- 579066101 — DECAL WATER PUMP OUTLET
- 579066102 — DECAL WATER PUMP OUTLET CANADA
- 576139701 — HANDLE REAR TSX0
- 510225426 — ARM TILE SUPPORT ARM CVR BTM
- 510225434 — PEN TILE PIN MITER BRKT
- 510225430 — PLATE TILE MITER PLATE
- 725236671 — SCREW EHHM M6x12 8.8 ZPB
- 525814501 — CABLE INCL FEMALE PLUG US 115V
- 593148602 — CABLE KIT PUMP CONNECTOR TS60
- 510181304 — CABLE Assy 110V US TSX0
- 580917704 — CABLE GENERAL ASSY AUS 230V
- 580917701 — CABLE GENERAL ASSY EU 230V 16A
- 576434101 — CABLE ASSY INCL CABLE SHOES TS60
- 576434102 — CABLE ASSY INCL CABLE SHOES TS 60
- 544123201 — CABLE CLAMP CORE DRILL MOTOR DM 225
- 729577601 — SCREW CCRPANT TYPE F ST4.2x13 St ZPB
- 525476301 — SCREW ITXPANT PT 5x16 10.9 ZPB
- 584658901 — CABLE INTERNAL POWER EXT
- 578864501 — SWITCH KIT MOTOR SWITCH LEVER AND FRAME
- 578864503 — SWITCH KIT MOTOR SWITCH AND FRAME CE 230V
- 523024201 — LEVER SWITCH TSX0
- 523052201 — FRONT COVER TSX0
- 525476303 — SCREW ITXPANT PT 3x22 10.9 ZPB
- 503202182 — SCREW IHSCM M5x82 A2-80 SS
- 503230402 — WASHER LOCK 5.4x9x1.8 Zn FLAKE (DELTA PROTECT)
- 589407101 — STATOR ASSY TS60 120V
- 589409101 — STATOR ASSY TS60 230V
- 735213601 — LOCKWASHER DIN 6798 TYPE A 4.3x8x0.5 St ZPB
- 576421801 — MOTOR HOUSING ASSY WITH INSERTS STD-MTRL
- 576421802 — MOTOR HOUSING ASSY WITH INSERTS UL-MTRL
- 525637901 — PROTECTIVE CAP LIGHT PIPE TSX0
- 546646201 — CONTROL UNIT ASSY ELECTRONICS, ASSY 120V
- 546646202 — CONTROL UNIT ASSY ELECTRONICS, ASSY 230V
- 525476304 — SCREW ITXPANT PT 3x16 10.9 ZPB
- 523052101 — INLET COVER TSX0
- 575335301 — SCREW IHSCM Internal Hexagon Socket Head Cap M 5 X 35 12.9 ZPB
- 582873903 — BRUSH HOLDER KIT 12.6mm DM220/230
- 506225805 — CARBON BRUSH 12,5 DM220/230 TSX0
- 725528501 — SCREW IHSCM ISO 4762 M 4 X 6 8.8 ZPB
- 735113650 — SPRING WASHER DIN 137 TYPE A 4.3x8x0.5 St
- 725529101 — SCREW IHSCM M4x12 8.8 ZPB
- 525476302 — SCREW ITXPANT PT 5x40 10.9 ZPB
- 523054201 — O-RING 25.3 x 2.4
- 523031101 — COVER MOTOR HOUSING MACHINED TSX0
- 582590401 — RADIAL SEAL 12x22x6 BAB1SL05
- 575984901 — BALL BEARING 6001-2RSL / C3
- 501008401 — SPRING WASHER VB7448, CORE DRILL MOTOR DM 230
- 735312810 — CIRCLIP SGH 28x1.2 St PP
- 589407701 — ROTOR ASSY TS60 120V
- 589409201 — ROTOR ASSY TS60 230V
- 579256203 — SCREW HEXAGON HEAD, WITH MAGNET M4X7
- 544123001 — BEARING SUPPORT CORE DRILL MOTOR DM230
- 503263003 — O-RING 31.6X2.4
- 523023301 — AIR CONDUCTOR TSX0
- 580858701 — SWITCH Electromagnetic switch KJD17 - 230V 50Hz
- 580900701 — FILTER EMC FILTER TS60
- 577816801 — SPLASH GUARD FOLDABLE EXTENSION
- 510225415 — SAW TILE REAR SPLASH GUARD
- 577847101 — SLEEVE
- 583951701 — PLUG KIT PURCHASE ASSY W. CHAIN
- 510225414 — TRAY WATER TRAY WATER TRAY
- 579827301 — RAIL SPARE PART KIT TS60
- 581718201 — RAIL MACHINED
- 725532301 — SCREW IHSCM M5x8 8.8 ZPB
- 584444101 — CAP END RAIL B
- 577735801 — HUB CAP Rail hole cap
- 584444201 — CAP END RAIL A
- 578905901 — FRAME KIT FRAME
- 510225450 — STOP CART STOP FRT PAD CART STOP FRT PAD
- 522468411 — VALVE BALL VALVE WITH HANDLE BALL VALVE WITH HANDLE
- 510225446 — STOP RAIL REAR STOP RH RAIL REAR STOP RH
- 541405036 — LEVEL
- 510225418 — FRAME FRAME CAP FRT FRAME CAP FRT
- 510225436 — FRAME FRAME FOOT PAD FRAME FOOT PAD
- 725232571 — SCREW EHHM M5x10 8.8 ZPB
- 578864801 — VALVE KIT ADAPTER
- 522730701 — VALVE WATER FLOW
- 531119208 — SCREW ISO 4014 M 5 X 12 8.8 ZPB
- 510225464 — BRACKET BRKT WATER VALVE BRKT WATER VALVE
- 510225419 — FRAME FRAME CAP RR FRAME CAP RR
- 735311201 — CIRCLIP SGA 10x1 St ZPB
- 510225427 — WHEEL TILE WHEEL ASSY
- 510225429 — BRACKET TILE WHEEL BRACKET
- 510225428 — PEN TILE WHEEL AXLE PIN
- 576879101 — DECAL TS 60 LOGO
- 510225401 — CART TILE CART ASSY
- 578906001 — PAD WITH GLUE KIT
- 576145502 — COVER CART MANIFOLD ASSY
- 724119151 — SCREW CRPANM ISO 7045 M 2.5 X 6 8.8 ZPB
- 576139801 — SCALE TILE TILE SAW CART SCALE
- 579071701 — KNOB WATER RECOVERY
- 510225447 — HANDLE TILE CART LOCK
- 522468404 — CART TILE CART EXTENSION
- 728532301 — SCREW IHSETM M5x8 St ZPB
- 521922101 — GASKET FEEDER BOX
- 521915901 — MANIFOLD CART FEEDER BOX COVER
- 729534001 — SCREW CCRPANT TYPE C ST4.2x9.5 St ZPB
- 579071501 — TRAY WATER RECOVERY
- 579071601 — BAR WATER RECOVERY
- 725233171 — SCREW EHHM M5x20 8.8 ZPB
- 577935101 — SPRING CART ADJUSTMENT
- 510225467 — BRACKET WHEEL ADJUST BRACKET BRKT WHEEL ADJ PC CLEAR
- 510225412 — ROLLER TILE Roller assy, fixed
- 577520105 — PUMP PUMP+CONNECTOR 230V28W1.84mAlunippleØ6.4.Conn.
- 525825603 — PUMP WATER 120V ALU. NIPPLE
- 585427801 — TUBE KIT CPL
- 585169301 — HOSE CLIP
- 522469501 — GUIDE CUTTING FENCE ASSY
- 510225437 — WRENCH PIN PIVOT BRKT
- 578906101 — STAND KIT FIXED LEG TS 60
- 522457319 — STAND TILE SAW LOWER EXTENSION LEG WLDMNT - H-GRY
- 577818301 — BUTTON QUICK RELEASE Ø9.5MM. LONG
- 522457313 — STAND TILE SAW HINGE SLEEVE
- 734116301 — WASHER ISO 7089 8.4x16x1.6 St 200HV ZPB
- 732251801 — HEXAGON LOCKING NUT ISO 7040 M8 8 ZPB. NF
- 577816901 — CLAMP WELDMENT ASSY
- 725246451 — SCREW EHHM ISO 4014 M8x65/22 8.8 ZPB
- 583890201 — WHEEL KIT STAND
577947101
Wheels for stand
578906101
Stand
