Husqvarna Pullman Ermator T 7500 | DUST EXTRACTOR T 7500 | 230 V | 60 Hz | USA DIST | 967734101

$18,389.00

Part Number: 967 73 41-01 (967734101)

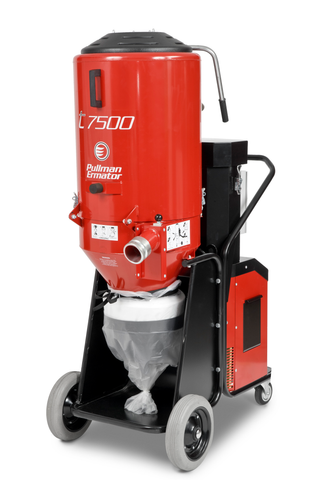

The Husqvarna Pullman Ermator T 7500 is a high-capacity industrial dust extractor designed for heavy-duty construction applications. Engineered for demanding environments, this unit provides efficient dust collection for large floor grinders and shot blasters. The system utilizes a three-stage filtration process, including a primary conical filter and a HEPA H13 filter, to ensure the capture of hazardous airborne particles.

Technical Specifications:

Voltage: 230 V
Frequency: 60 Hz
Article Number: 967734101 / 967 73 41-01
Filtration: Three-stage system with HEPA H13
Application: Industrial dust extraction for construction equipment

Motor
Rated input power	10.1 hp
Phases	3 ph
Voltage	230 V
Rated Current	24.2 A
Max. vacuum	4.06 psi
Power Source	Corded
Product data
Airflow at turbine	353 cfm
Primary filtration area	60.8 ft²
HEPA Filters 99.99% at 0.3 microns	2
Water Lift	110 in
Dimensions
Product size length	49 in
Product size width	27 in
Product size height	69 in
Weight	454 lbs
Packaging length (Calc)	30.984 in
Packaging width (Calc)	47.008 in
Packaging height (Calc)	80.984 in
Article gross weight (Calc)	548.001 lbs

536344201 — WAND TOOL KIT Ø51 SPARE PART KIT HQ
590428101 — HOSE Assembly 2" 25' length All T-line models
590436501 — PIPE Camlock adapter 76mm to 50mm
590437001 — HOSE Complete 76mm x 10m - Conductive
536343901 — NOZZLE 51x450mm FLOOR TOOL
599594201 — BRUSH KIT STRIPS L=390/445
529804202 — RUBBER BLADES for 450mm nozzle
590435001 — FRAME REAR T-LINE
590435201 — FRAME FRONT T7500-T8600
734117201 — WASHER ISO 7089 10.5x20x2 St 200HV ZPB
725250751 — SCREW EHHM ISO 4014 M 10 X 80 8.8
590435701 — WHEEL KIT FRONT T-LINE
536922301 — WHEEL KIT SWIVEL w SCREWS & WASHERS
734116301 — WASHER ISO 7089 8.4x16x1.6 St 200HV ZPB
725244951 — SCREW M6S 8X16 FZ
732212051 — NUT M10-LOCK
590479102 — TANK HALF UPPER ORANGE
590479101 — TANK HALF UPPER RED
590479103 — TANK HALF UPPER BLACK
590434301 — LID TOP T-LINE
590434201 — FILTER CLEANING UNIT T-LINE
590434401 — HANDLE
725249551 — SCREW EHHM
590433201 — STOPPER
590433901 — LATCH
725238851 — SCREW EHHM M6X90 8.8 ZPB
590438801 — FILTER Pre-filter complete T 7500 & T 8600
590479002 — TANK HALF LOWER ORANGE
590479001 — TANK HALF LOWER T7500-T8600
590479003 — TANK HALF LOWER BLACK
590434101 — VALVE KIT INCL. GASKETS
590435502 — INLET 3" CAMLOCK ORANGE
590435501 — INLET 3" CAMLOCK RED
590435503 — INLET 3 CAMLOCK BLACK
732252001 — HEXAGON LOCKING NUT ISO 7040 M10 8 ZPB. NF
596839201 — BOLT BARREL BOLT M6 X 9
590431901 — HOLDER FLAP T-LINE
590456601 — FLAP 215 MM, C5500 COMPLETE
591729601 — PROTECTION SLIDE P1206 DIA 290x25
590433401 — STRAP DUST BAG L 1500mm
590429201 — DUST BAG LONGOPAC® 4x23M MINI SUPER-STRONG (53 microns)
590435801 — HOLDER LONGOPAC
596227301 — REGULATOR AIR PRESSURE
590432101 — CHECK VALVE VACUUM
596229001 — TUBE PVC Ø76
590433101 — HOSE CLAMP 76 MM (3")
590434601 — COVER HEPA FILTER HOUSING T-LINE
590429701 — FILTER HEPA T-LINE
590434702 — LID MOTOR COVER EU/AU
590434701 — LID MOTOR COVER NA
599143501 — ELECTRONIC BOX SCHNEIDER ELECTRIC 300x300x150mm NSYS3D3315P, T7500 EU
596225801 — CASING FILTER CASING
590432701 — MANOMETER 0-40kPa 1 PC
590434501 — FILTER HOUSING HEPA T-LINE
591690201 — LOCK EXL28 EXCENTERLÅS
598974101 — CIRCUIT BREAKER SIEMENS 1P C0.5A 5SL6105-7
592668701 — TRANSFORMER SITAS 4AM3442-5FT10-0FA0
597416101 — PUSH BUTTON TWIN - GREEN / RED 3SU1001-3AB42-0AK0
597249302 — HOUR METER SIEMENS 230VAC 50Hz 7KT5502
599143201 — PLUG PCE 3P+N+PE, 400V 16A 7715-6
591801701 — RELAY 3UG5511-1BR20 PHASE RELAY
598980502 — CONTACTOR SIEMENS 3 kW/400V 1NC AC-3, 3RT2015-1AP02
598983701 — RELAY OVERLOAD SIEMENS 5.5-8A 3RU2116 3RU2116-1HB0
598980501 — CONTACTOR SIEMENS 3 kW/400V 1NO AC-3 3RT2015-1AP01
598978101 — TIMER SIEMENS with STAR-DELTA FUNCTION 1-20s 3RP2574-1NW30
598667701 — RAIL OBO-BETTERMANN DIN rail, 35x7.5mm, 1115669
590479202 — MOTOR COVER KIT HQ ORANGE
599673201 — MOTOR COVER ASSY DAMPER MAT PE RED
599673203 — MOTOR COVER ASSY DAMPER MAT HTC BLACK
590433001 — FAN MOTOR COVER
590479302 — PLATE KIT EXHAUST HQ ORANGE
590479301 — PLATE KIT EXHAUST PE RED
590479303 — PLATE KIT EXHAUST HTC BLACK
596228001 — BRACKET BRACKET
590434801 — INLET PIPE VACUUM PUMP T-LINE
590435401 — BLOWER VACUUM 3x230V T7500 230V
590433501 — BLOWER VACUUM 3X400V T7500 400V
590433601 — BLOWER 3x480V T8600
732212201 — NUT LOC-KING 12
734117801 — WASHER ISO 7089 13x24x2.5 St 200HV ZPB
591880402 — HOOD DAMPER HQ
725253871 — SCREW EHHM M12x35 8.8 ZPB ISO4017
