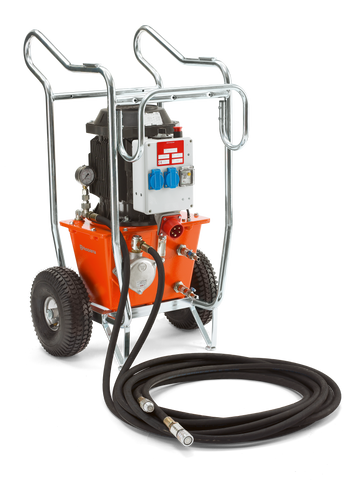

Husqvarna PP 325 E | POWER PACK PP 325 E 480 V | 60 Hz | Y-D start | 4-pin | US | 965156406
Part Number: 965 15 64-06 (965156406)
The Husqvarna PP 325 E is an electrical power pack engineered for high-performance hydraulic equipment, including the DM 406 H drill motor, K 3600 MK II, and K 2500 power cutters. This unit is designed for reliability in environments where maintenance access is restricted.
Specifications:
- Article Number: 965156406 / 965 15 64-06
- Voltage: 480 V
- Frequency: 60 Hz
- Starting Method: Y-D start
- Connection: 4-pin
- Region: US
Product Features
Easy transportation and positioning
Mounted on a heavy-duty single axle trolley.
Water-cooled heat exchanger
For low operating fluid temperature.
Easy and smooth starts
SoftStart™ provides easy startup, even at low temperatures when the oil is thick.
| Motor | |
|---|---|
| Rated Current | 16 A |
| Voltage | 480 V |
| Frequency | 60 Hz |
| Power Source | Corded |
| Hydraulics | |
| Oil capacity | 405.8 fl oz |
| Hydraulic oil flow | 8.8 gal/min |
| Hydraulic pressure, max | 9.65 psi |
| Product data | |
| Pins | 4 |
| Dimensions | |
| Product size length | 30.7 in |
| Product size length | 780 mm |
| Product size width | 22.6 in |
| Product size width | 575 mm |
| Product size height | 40.9 in |
| Product size height | 1,040 mm |
| Weight | 209.44 lbs |
| Weight (complete product w/o side packed articles) | 95 kg |
| Packaging length (Calc) | 47.244 in |
| Packaging width (Calc) | 30.709 in |
| Packaging height (Calc) | 31.496 in |
| Article gross weight (Calc) | 308.647 lbs |
- 501365604 — MOTOR ELECTRIC 200V, PP 325 E (531117274)
- 501365602 — ELECTRONIC BOX 9.2 kW 230V, PP 325 E (531117210)
- 548051101 — MOTOR 400-480V PP325
- 501365603 — MOTOR ELECTRIC 575-600V, PP 325 E (531117233)
- 501366201 — TANK -531141061
- 531115169 — COUPLING SHAFT COMPL.PP325/345
- 531115184 — PIPE COMPL PP 325/345
- 531115186 — PRESSURE PIPE COMPL PP 325
- 531118035 — COUPLING TUBE EVL 15 L
- 531118056 — QUICK COUPLING
- 531118065 — COUPLING TUBE KOR 15/12
- 531118070 — COUPLING TUBE MAV EV 12
- 531118082 — VALVE
- 531118091 — METER
- 531118098 — COUPLING TUBE WSV 15 L
- 531118279 — HYDRAULIC PUMP 2014
- 531118278 — PUMP
- 531119183 — WASHER 13X24X2
- 531119186 — SEALING RING M22
- 531119199 — SCREW M6S 10X30
- 531119207 — SCREW M6S 12X45
- 531119210 — SCREW M6S 6X12
- 531119224 — SCREW DIN 6921 M 8 X 20 ZPB
- 531119293 — O-RING 80X1.6
- 531141159 — BLOCK PRESSURE LIMITING
- 531141167 — NIPPLE HOSE VENTILATION
- 531141179 — SEALING BLOCK SEAL
- 504055101 — LABEL Rotation
- 725238051 — SCREW EHHM ISO 4014 M6x50/18 8.8 ZPB
- 731232001 — HEXAGON NUT ISO 4032 M10 8 ZPB
- 731232201 — HEXAGON NUT ISO 4032 M12 8 ZPB
- 734115201 — WASHER ISO 7089 6.4x12x1.6 St 200HV ZPB
- 740380801 — SEALING WASHER 6.7x11 St ZPB /RUBBER
- 740381801 — SEALING WASHER 10.4x15.9 St ZPB /RUBBER
- 740431400 — O-RING BS 4518 16.3x2.4 NITRILE RUBBER
- 531118050 — QUICK COUPLING MALE 3/8" TEMA IF3820
- 531119181 — WASHER 10.5X22
- 531118163 — HYDRAULIC HOSE 1SNK1/2-
- 531119340 — PLUG VSTI R1/2
- 531119185 — SEALING RING 1/2
- 531117201 — COVER
- 505400601 — ELECTRIC BOX PP 325 E 400V 5-pin
- 505400602 — ELECTRIC BOX PP 325 E 400V 4-pin
- 505400604 — ELECTRIC BOX PP 325 E 480V 4-pin
- 504694802 — RELAY ENGINE PROTECTION 5.4-27A
- 504695102 — BASE ATTACHING FOR RELAY 193-EPB
- 505400901 — HOUR METER 230V 50Hz
- 505461001 — LAMP
- 505461101 — SWITCH
- 505461201 — ADAPTER
- 505461301 — CONTACT
- 505461401 — PLATE CONNECTION
- 505461501 — BOX
- 505461601 — BAR
- 505461701 — BAR HIGH
- 505461801 — SCREW
- 505461901 — NUT PART
- 505462001 — NUT PART
- 505462101 — NUT PART
- 505520301 — SWITCH COMPLETE
- 510249801 — SWITCH
- 531117208 — GUARD PERSONAL SAFETY
- 531117216 — STARTER
- 531117342 — DRIVE CONTROL SOFTSTART 480V Mjukst 3x480V 12A
- 531119385 — SPACER MAINBOARD
- 723532901 — SCREW SLCSFM M5x16 5.8 ZPB
- 725532301 — SCREW IHSCM M5x8 8.8 ZPB
- 725628901 — SCREW IHCSFM M4x10 8.8 ZPB
- 731231001 — HEXAGON NUT ISO 4032 M3 8 St ZPB
- 531119008 — VENTILATING HOSE 4X7
- 547708901 — CONTACTOR 400V 50Hz 23A
- 547709001 — CONTACTOR 480V 60Hz 23A
- 531119030 — AIR FILTER
- 531141099 — PRINTED CIRCUIT ASSY PHASE SEQUENCE INDICATO
- 531141168 — NIPPLE VENTILATION
- 723522201 — SCREW SLCSFM M3x8 5.8 ZPB
- 531115174 — BOX ELECTRIC 200V 60HZ JAP PP 325 E
- 531115066 — BOX ELECTRIC 230/400 V, NOR PP 325 E
- 505400605 — ELECTRIC BOX PP 325 E 575V 4-pin
- 531117138 — SWITCH PP 345 E 400V
- 531117008 — SWITCH Y/D PP 325 E
- 531117036 — GUIDE RAIL DIN CONNECTOR WITH HOLE
- 531117073 — SOCKET ASSEMBLY 193 EAÀ
- 531117074 — RELAY
- 531117184 — CONTACTOR PP 345 E JAPA
- 531117023 — CONTACTOR 230V 23A
- 531117068 — CONTACTOR
- 531117234 — CONTACTOR 575V/60HZ 23A, 100-xxxxxx Can
- 531115073 — LAMP
- 531117187 — LENS CLEAR
- 531117150 — INLET MAINS 32A 230V (N
- 531117148 — INLET MAINS 16A 400V
- 531117236 — INLET ELECTRIC 575V/20A CAN
- 531117010 — SOCKET EXTENSION 220V,
- 586726501 — CONNECTOR 3+N+PE (16A, 400 VAC)
- 531117237 — SOCKET EXTENSION
- 531117238 — FUSE HOLDER US
- 531117239 — METER
- 531119018 — SPACER M3050X15
- 531141171 — BRACKET ELECTRIC INLET
- 531141200 — ELECTRIC BOX PP 325 E,
- 723122801 — SCREW SLCHM M3x16 5.8 ZPB
- 723129301 — SCREW SLCHM ISO 1207 M 4 X 16 5.8 ZPB
- 723132501 — SCREW SLCHM ISO 1207 M 5 X 10 5.8 ZPB
- 503200220 — SCREW IHSCFM M5x20 12.9 TBO
- 723532501 — SCREW M5x10 5.8 ZPB
- 734114601 — WASHER M5 ISO 7089 5.3x10x1 St 200HV ZPB
- 725532901 — SCREW IHSCM M5x16 8.8 ZPB
- 731231401 — HEXAGON NUT ISO 4032 M5 8 ZPB
- 531119007 — WHEEL 300R20/75
- 531119016 — NUT POP
- 531119031 — WASHER 13X36
- 531119153 — RUBBER PLUG GL 19
- 531119197 — SCREW M6S 10X16
- 531119202 — SCREW ISO 4017 M 12 X 25 8.8 ZPB
- 531141133 — HOLDER HOSE
- 531141137 — CARRIAGE
- 725637851 — SCREW IHCSFM M6x40 10.9 ZPB
- 531141185 — PLATE ELECTRIC 53X25 MM
- 531141186 — PLATE ELECTRIC 53X25 MM
- 531141211 — DECAL /PP325E
- 504003901 — TYPE PLATE
- 531141205 — LABEL FLASH 24X40 MM
- 504029904 — LABEL Husqvarna PP 325 E
- 531118030 — SWIVEL DVWE 15R
- 531118034 — CLUTCH
- 531118049 — QUICK COUPLING FEMALE 3/8" TEMA IF3810
- 531115170 — HOSE KIT SET PP 325 E WITH COUPL.
- 531118272 — COUPLING SET WITHOUT COUPLINGS
- 740383401 — SEALING WASHER 17.3x23.9 St ZPB /RUBBER
- 531118003 — COUPLING HYDRAULIC FEMA
- 731231201 — HEXAGON NUT ISO 4032 M4 8 ZPB
- 734113601 — WASHER ISO 7089 4.3x9x0.8 St 200HV ZPB
- 505462301 — REINFORCEMENT PLATE
- 723122401 — SCREW SLCHM ISO 1207 M 3 X 10 5.8 ZPB
- 505462401 — LID 5-PIN
- 505462201 — COVER
- 505463201 — CONTACT 400V 16A
- 531117155 — SOCKET 230V SINGLE
- 723529201 — SCREW SLCSFM M4x14 5.8 ZPB
- 505462402 — LID 4-PIN
- 531115018 — COOLER 19KW, COMPLETE
- 531141163 — COOLER CARTRIGDE 19 KW
- 531119002 — COOLER
- 531141068 — COUPLING BULKHEAD
- 531119525 — SEALING RING GB 3/4 BSP
- 531119017 — O-RING STRING 1240X6
- 531118051 — GAUGE
- 531119219 — SCREW M6S 8X30
- 531118176 — NUT M26X1.5
- 531118355 — NIPPLE 18210 with net
- 531118005 — NIPPLE 1812
- 531119014 — CLAMP HOSE 13-20
- 501365801 — HYDRAULIC TANK (531141059)
- 531118028 — COUPLING HYDRAULIC DSVW
- 531118161 — SLEEVE 20X15 METAL
- 531118149 — FILTER HOUSING PP 325/3
- 531119294 — O-RING 90X5.3
- 531118249 — FILTER FILTERINSATS
- 531119295 — O-RING 98.02X3.53
- 531115166 — HOSE FILTER COMP/PP 325/345
- 531119600 — CLAMP HOSE 22-32
- 731231801 — HEXAGON NUT ISO 4032 M8 8 ZPB
- 734116301 — WASHER ISO 7089 8.4x16x1.6 St 200HV ZPB
