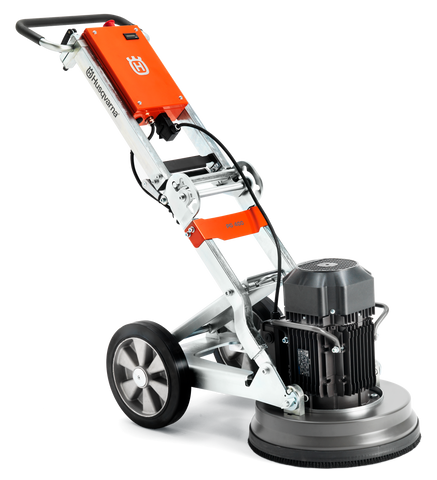

Husqvarna PG 400 II | FLOOR GRINDER PG 400 | 220-240V | 3 ph | 60 Hz | US | 967278304
Part Number: 967 27 83-04 (967278304)
The Husqvarna PG 400 II (Article 967278304) is a single-disc floor grinder engineered for high productivity across a variety of surface preparation tasks. Featuring a 16-inch grinding width, this unit is designed to effectively remove adhesives, paint, epoxy, and spackle from medium to large concrete surfaces. The machine operates on 220-240V, 3-phase, 60 Hz power.
Designed for operational efficiency, the PG 400 II features a compact, foldable frame that simplifies transport and storage. The unit is built to support an ergonomic working posture, reducing operator fatigue during extended use. Key specifications include:
- Grinding width: 16 in.
- Power source: 220-240V, 3 ph, 60 Hz
- Design: Foldable frame for portability
Product Features

Versatile
Productive machine for the small hard to get to areas, as well as larger areas.

Easy removal
Offers efficient grinding of adhesive, paint, epoxy and spackle.

Adhesive residue, paint and spackle
Grinding of adhesive residue, paint and spackle on medium-sized concrete areas.

Easy to transport and set-up
The machine is light and fits easily in any car thanks to the compact design and foldable frame and dividable parts.

Easy to use
The speed is fixed and no settings are required. The machine also has an user-friendly logical control panel with overload protection.

Efficient dust management
Self-adjusting floating cover with brush list follows the surface and gives a tight seal to prevent the dust from entering the working environment.

Time saving tool change
Redi Lock® is an instant and hassle-free system for changing diamond tooling.

Ergonomic working position
Adjustable handlebar makes the setting of an ergonomic position easy.

Hour meter
Possibility to log operating hours.

Redi Lock®
Redi Lock® is an instant and hassle-free system for changing diamond tooling. Robust system design ensures maximum protection and life of your diamond tools.
| Engine | |
|---|---|
| Engine Power (As rated by the engine manufacturer) | 4.53 hp |
| Motor | |
| Power Source | Corded |
| Phases | 3 ph |
| Voltage | 220-240 V |
| Rated Current | 15 A |
| Frequency | 60 Hz |
| Equipment | |
| Grinding width | 16 in |
| Number of grinding discs | 1 |
| Direction of rotation | One direction |
| Grinding disc diameter | 16 in |
| Grinding disc speed min | 0 rpm |
| Grinding disc speed max | 1,740 rpm |
| Grinding pressure, max | 130 lbs |
| Dimensions | |
| Product size length | 53 in |
| Product size width | 18.5 in |
| Product size height | 37 in |
| Weight | 278 lbs |
| Packaging length (Calc) | 45.669 in |
| Packaging width (Calc) | 22.047 in |
| Packaging height (Calc) | 35.433 in |
| Article gross weight (Calc) | 291.01 lbs |
- 589686301 — MOTOR 4kW, 208-480V, 3PH, IE3, B5 CCW GREY
- 585302202 — MOTOR 3 kW 230V 1ph B5 60Hz CCW GREY
- 587174602 — FAN COVER MOTOR MLd112
- 594009901 — FAN COVER WONDER SWEA 112 HVA GREY
- 594010001 — FAN WONDER SWEA 112
- 587174702 — FAN MOTOR MLd112
- 725254271 — SCREW EHHM ISO 4017 M 12 X 50 8.8 ZPB
- 734118041 — WASHER ISO 7093 13x37x3 St ZPB
- 732252201 — HEXAGON LOCKING NUT ISO 7040 M12 8 ZPB. NF
- 731231801 — HEXAGON NUT ISO 4032 M8 8 ZPB
- 585423302 — HANDLE MOTOR HANDLE 170mm
- 725545101 — SCREW IHSCM ISO 4762 M 8 X 20 8.8 ZPB
- 585083303 — SPACER MOTOR SPACER PLATE PG400
- 595838702 — DUST COVER WELD ASSY PG 400 EZ
- 585138404 — BRUSH BRUSH LIST PG400
- 585540301 — BRACKET MOTOR LUG WELD ASSY PG400/450
- 585540302 — BRACKET MOTOR LUG WELD ASSY PG400/450 Rental market
- 721425901 — SPRING PIN ISO 8752 4x26 St ZPB
- 585159001 — MOUNTING PLATE MOTOR PLATE WELD ASSY PG400
- 725637251 — SCREW IHCSFM M6x25 10.9 ZPB
- 510234302 — ATTACHMENT PLATE TOOL HOLDER PG 400 DIA 170
- 589797501 — SEALING PLATE PG 400
- 585514701 — HUB TOOL HOLDER PG280/400 WITH FLOATING COVER
- 725545155 — SCREW IHSCM ISO 4762 M 8 X 20 12.9
- 725644755 — SCREW IHCSFM M8x12 10.9 TBO
- 725644955 — SCREW IHCSFM M8x16 10.9 TBO
- 593438801 — ABSORBER SHOCK 20x25 M6
- 510235101 — WASHER TOOL HOLDER PG280/400 3-Phase
- 725249571 — SCREW EHHM M10x30 8.8 ZPB
- 587795801 — DISC HOLDER PG400 9-SLOT
- 522039701 — HAMMER PG 280/400
- 589925801 — V-RING TYPE A 40 NITRILE RUBBER
- 725536851 — SCREW IHSCM ISO 4762 M 6 X 16 12.9 ZPB
- 575395101 — WASHER BACK WHEEL SHAFT
- 502545001 — WHEEL 300MM (PG820/680/530 DC5500/3300)
- 585109102 — CHASSIS WHEEL CHASSIS PG400
- 586991704 — BOLT BOLT KIT PG400 HDX
- 586991702 — BOLT BOLT KIT PG400
- 721680251 — SPRING COTTER 3 St ZPB
- 732252001 — HEXAGON LOCKING NUT ISO 7040 M10 8 ZPB. NF
- 734117201 — WASHER ISO 7089 10.5x20x2 St 200HV ZPB
- 725549501 — SCREW IHSCM ISO 4762 M 10 X 30 8.8 ZPB
- 590540001 — WIRE KIT PG 400/450 HDX
- 590373701 — LOCKING HANDLE ADJUSTABLE LEVER
- 587158501 — COVER HANDLE TOP PG280/400/450
- 585516601 — BRACKET HANDLE TOP BRACKET
- 725545501 — SCREW IHSCM M8x30 8.8 ZPB
- 585144001 — HANDLE TUBE PG280/400/450 HANDLEBAR
- 729526171 — SCREW CRPANT K35x20 St ZPB
- 587158601 — COVER HANDLE BOTTOM PG280/400/450
- 585382801 — BRACKET HANDLE SUPPORT PG400/450
- 589837701 — BRACKET HANDLE, LOWER
- 585516801 — RUBBER SHOE HANDLE RUBBER STOP
- 725529501 — SCREW IHSCM ISO 4762 M 4 X 20 8.8 ZPB
- 585573511 — FORK UPPER WELD ASSY RIGHT PG 400
- 728828501 — SCREW IHSETM M4x6 St ZPB
- 725546001 — SCREW IHSCM ISO 4762 M 8 X 45 8.8 ZPB
- 734116301 — WASHER ISO 7089 8.4x16x1.6 St 200HV ZPB
- 585416201 — WASHER 15.5x24x1 Nylon
- 585133701 — HANDLE JOINT LOCK PG400/450
- 732211801 — LOCK NUT M8
- 585383101 — WASHER
- 585573512 — FORK UPPER WELD ASSY LEFT PG 400
- 585417301 — SPRING JOINT LOCK SPRING RH
- 585383302 — SLEEVE SPRING HOLDER
- 585133801 — ROD JOINT LOCK PG400/450
- 734116541 — WASHER ISO 7093 8.4x24x2 St ZPB
- 585416101 — SPRING JOINT LOCK SPRING LH
- 585133501 — SPACER ANGLE JOINT
- 585416001 — BUSH SKF PCMF 182017 E
- 725637451 — SCREW MF6S 6x30 10.9
- 585133301 — PLATE JOINT LOCK PG280/400/450
- 725546101 — SCREW IHSCM ISO 4762 M 8 X 50 8.8 ZPB
- 585132901 — SPACER ANGLE PLATE PG280/400/450
- 585383003 — BRACKET LOWER FRAME SUPPORT PG400/450 HDX
- 585383001 — BRACKET LOWER FRAME SUPPORT PG400/450
- 585109702 — SUPPORT WELD ASSY HEIGHT ADJUSTABLE
- 732251801 — HEXAGON LOCKING NUT ISO 7040 M8 8 ZPB. NF
- 585129002 — TUBE M10 SUPPORT INNER TUBE PG400/450
- 725549101 — SCREW IHSCM ISO 4762 M 10 X 20 8.8 ZPB
- 585129101 — BUSH BUSHING SUPPORT LEG
- 593897102 — FRAME TUBE LOWER KIT PG 400
- 590472201 — WING KNOB KIT
- 590203401 — BUSHING COUNTER WEIGHT
- 589837101 — COUNTERWEIGHT BASE
- 589837201 — COUNTERWEIGHT TOP
- 725545301 — SCREW IHSCM M8x25 8.8 ZPB
- 582347201 — DECAL WARNING CRUSHING
- 590518301 — DECAL WARNING UL - EN, FR
- 590518401 — DECAL WARNING
- 724136851 — SCREW CRPANM M6x16 8.8 ZPB
- 521886601 — RIVET M6 NUTSERT
- 586474303 — LID ELECTRONIC BOX HDX (colour light grey)
- 586474301 — LID ELECTRONIC BOX PG280/400/450
- 586467002 — SEALING ELECTRONIC BOX
- 584296301 — HOUR METER
- 586991501 — SWITCH KIT START/STOP SWITCH CPL
- 586991601 — SWITCH KIT EMERGENCY STOP CPL
- 584297101 — LAMP INDICATOR, WARNING, RED 230 VAC
- 584297103 — LAMP INDICATOR, WARNING, RED 415 VAC
- 585365801 — CONTACTOR ABB AF-series AF16-30-10-13 3P, NO, 100-250V
- 585365803 — CONTACTOR ABB AF-series AF16-30-10-14 3P, NO, 250-500V
- 584297802 — RELAY TF42 OVERLOAD 7.6-10A
- 580623501 — PROTECTION ABB OVERLOAD PROTECTION TF42-20 (16-20A)
- 580623502 — PROTECTION ABB OVERLOAD PROTECTION TF42-16 (13-16A)
- 725532501 — SCREW IHSCM ISO 4762 M 5 X 10 8.8 ZPB
- 522747001 — RAIL DIN L=50mm (DC3300)
- 731231601 — HEXAGON NUT ISO 4032 M6 8 ZPB
- 525882601 — FUSE HOLDER PG280/400: 2 poles
- 725536455 — SCREW IHSCM M6x10 12.9 TBO
- 525638101 — FUSE SLOW ACTING 500V 2A
- 732251401 — HEXAGON LOCKING NUT ISO 7040 M5 8 ZPB. NF
- 585366105 — TERMINAL BLOCK PG280/400/450 Screwless Endstop
- 585366103 — TERMINAL BLOCK PG280/400/450 End and intermediate plate
- 585366107 — TERMINAL BLOCK PG280/400/450 End plate for WAGO 2006 series
- 585366101 — TERMINAL BLOCK PG280/400/450 Gray, Regular
- 585613501 — TERMINAL BLOCK WAGO 2002-6301
- 590075801 — MOUNTING PLATE SPG ELECTRONIC BOX
- 725245171 — SCREW EHHM M8x20 8.8 ZPB
- 725236651 — HEXAGONAL SCREW M6X12 ISO 4017 M 6 X 12 8.8 ZPB
- 734115201 — WASHER ISO 7089 6.4x12x1.6 St 200HV ZPB
- 735215301 — LOCKWASHER DIN 6798 TYPE A 6.4x11x0.7 St ZPB
- 510431701 — CABLE GROMMET METAL GLAND 10-14 PG16
- 586586901 — PLUG SCREW PLUG M25x1,5
- 586586902 — PLUG SCREW PLUG PG16
- 582506904 — ELECTRONIC BOX BOX HDX LIGHT GREY
- 582506903 — ELECTRONIC BOX
- 586237801 — CABLE INCL. PLUG 3-PHASE 3-PHASE EU 400V
- 586237802 — CABLE INCL. PLUG 3-PHASE 3-PHASE AUS 400V
- 586237803 — CABLE INCL. PLUG 3-PHASE 3-PHASE US 230V
- 586237805 — CABLE INCL. PLUG 3-PHASE 3-PHASE JPN 220V
- 586236808 — CABLE INCL. PLUG 1-PHASE BR 230V
- 586236812 — CABLE INCL. PLUG 1-PHASE US 230V 30A
- 585638107 — CABLE ASSY 3x12AWG
- 585638110 — CABLE ASSY 3x14AWG
- 585366605 — CONNECTOR Power connector Bulk Head Mounted Housing, 4 Pole + PE
- 590503501 — CONNECTOR INCL HOUSING AND CABLES
- 725522401 — SCREW ISO 4762 M 3 X 10 8.8 ZPB
- 732251001 — HEXAGON LOCKING NUT ISO 7040 M3 8 ZPB. NF
- 587173902 — ELECTRONIC BOX MOTOR ELECTRONIC BOX KIT 3 phase
- 587173901 — ELECTRONIC BOX MOTOR ELECTRONIC BOX KIT 1 phase
- 587174503 — CAPACITOR RUN CAPACITOR Wonder model 45/450
- 587174404 — CAPACITOR START CAPACITOR Wonder model 250/250
- 587174304 — SWITCH ELECTRIC CENTRIFUGAL SWITCH Wonder model WECS-240-65
- 587174201 — GROMMET PLASTIC GLAND M20x1,5
