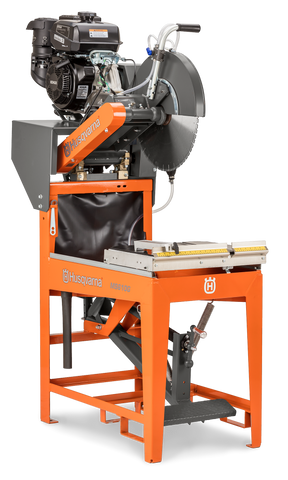

Husqvarna MS 610 G | MASONRY SAW MS 610 G 14 hp | 20" | Kohler | 967673601
Part Number: 967 67 36-01 (967673601)
The Husqvarna MS 610 G is a professional-grade masonry saw engineered for high-production environments. Powered by a 14 hp Kohler engine, this unit is designed for long-term durability and consistent performance on demanding job sites. It accommodates a 20" blade, providing the capacity required for large-scale masonry applications.
- Model: MS 610 G
- Engine: 14 hp Kohler
- Blade Capacity: 20"
- Article Number: 967673601 / 967 67 36-01
Product Features
Easy to transport
The forklift brackets facilitates easy movement.
Low vibrations
The engine mounting system ensures low vibrations for the operator.
Precise cutting
The parallel blade guard and the ergonomically designed steel handle with molded grip ensures accurate and steady cuts.
Effective water management system
The water containment system keeps slurry in the cart trench and the water spray splash guard facilitates a clean work area. The larger diameter nozzles in the brass minimizes clogging.
Easy maneuverability
The RPM throttle enables easy maneuverability and ease of use from the operator’s cutting position.
| Dimensions | |
|---|---|
| Packaging length | 1,549 mm |
| Packaging length (Calc) | 60.984 in |
| Packaging width | 1,270 mm |
| Packaging width (Calc) | 50 in |
| Packaging height | 2,032 mm |
| Packaging height (Calc) | 80 in |
| Article gross weight | 272,155 g |
| Article gross weight (Calc) | 599.999 lbs |
- 542177383 — WRENCH 75 X .50 BOX END Z/P
- 589335701 — FRAME ASSY
- 529335301 — SPLASH GUARD FRAME KIT SPARE PART MS 610 G
- 590960601 — SCREW External Hexagon Head Flanged 1/4-20UNC X 1 '' Grade 5 ZPB
- 510140802 — RAIL CART TS510
- 539990055 — WASHER 1/4 SAE
- 539976978 — NUT.1/4-20.HEX.NYLOC.ZD
- 542030386 — PLUG DRAIN ASSY
- 542032342 — HOSE "DRAIN HOSE. 1.75 I.D. X 14"""
- 542020024 — BOLT CB .625-11 x 2.5 Z/P
- 541205129 — NUT NUT, HEX JAM THIN .625-11 Z/P
- 542020489 — SCREW
- 539990130 — NUT 3/8-16
- 539990517 — WASHER 3/8 FLAT
- 542020022 — BOLT CB .375-16 x 2.5 Z/P
- 542160080 — PEN SNAPPER
- 542195274 — FRAME TILT,WLDMNT,GM HUSQ.GREY
- 576654804 — SCREW EHHFM DIN 6921 M 12 X 40 8.8 ZPB
- 539976979 — NUT 3/8-16 NYLOC
- 510190601 — YOKE TILT
- 576645706 — NUT FLANGE, WITH NYLON RING M12 FZB
- 542020365 — SCREW HHCS .375-16X2.25/GR 5 Z
- 576654812 — SCREW EHHFM DIN 6921 M12x120 8.8 ZPB
- 510190201 — NUT ADJUSTMENT NUT
- 542040139 — FITTING GREASE FITTING, #1610 1/8" NPT STRAIGHT
- 542020261 — CLAMP HOSE A22
- 542040184 — BOOT RUBBER, 4" LG (27 RIBS)
- 542139581 — SPRING
- 542032570 — SCREW SCREW. ADJUSTMENT
- 539300092 — WOODRUFF KEY WOODRUFF #5
- 504538701 — BEARING FLANGE 2 HOLE MOUNT
- 542205352 — PEDAL FOOT, GM,PC H-GRY
- 542205362 — HANDLE ASSY
- 542020211 — NUT
- 535278301 — BOLT EYE .3125-18 X 1.5 Fe/Zn
- 539990196 — NUT 5/16C HEX
- 597593301 — ENGINE KIT KOHLER 14 HP
- 576645705 — NUT FLANGE WITH NYLON RING M10 FZB
- 590376901 — BRACKET ENGINE UPPER
- 536090501 — OIL HOSE OIL DRAIN ASSY MS610G
- 529335101 — ISOLATOR ENGINE KIT SPARE PART MS 610 G
- 529335102 — ISOLATOR ENGINE KIT SPARE PART
- 581548201 — SCREW EHHFM DIN 1665 M10x50
- 542205349 — BRACKET
- 523327701 — NUT JAM 1/2-13
- 542163197 — BUSHING
- 590740601 — BELT GUARD ASSY
- 585975401 — SCREW EHHFM EN 1665 M 8 X 20 8.8 ZPB
- 542195039 — SCREW HHCS .500-13UNCx5.00 FL THD ZP
- 539990250 — WASHER 1/2" FLAT
- 542205347 — BRACKET BRKT, WLDMT, TENSION, PC H-GRY
- 589335601 — BRACKET ENGINE PLATFORM
- 541204780 — WASHER FLATWASHER 5/16 PLTD
- 539990187 — WASHER.LOCK.HVY.HLCL.SPR.5/16
- 542020376 — SCREW HHCS .3125-18 x 4.5 GR 5 Z/P
- 589591801 — GUARD FRONT PULLEY
- 585973101 — SCREW EHHFM EN 1665 M10x25 8.8 ZPB
- 589591901 — SHIELD WATER PUMP WLDMNT
- 542195255 — CLUTCH 3G3V 3.48OD,1.0 BORE
- 523233901 — KEY 1/4 X 2 1/4
- 542195280 — PULLEY 3G3V 3.48OD 1.0 BORE
- 542190416 — V-BELT 3BAND FS 4800D 3GR 3VX
- 510318101 — KEY 1/4 X 1/4 X 1.50
- 542195406 — PULLEY 3G3V 4.50OD 1.0 BORE
- 542139683 — PULLEY 3G3V2.65 - 1.0
- 542045398 — V-BELT
- 542195235 — PULLEY 3G3V 3.35OD .75 BORE
- 542020062 — KEY
- 541403746 — SCREW SETSCSREW 5/16-18 X 1/2
- 542020550 — SCREW
- 732251401 — HEXAGON LOCKING NUT ISO 7040 M5 8 ZPB. NF
- 587696901 — CABLE THROTTLE
- 542181361 — GROMMET
- 585980501 — SCREW EHHFM EN 1665 M 5 X 16 8.8 ZPB
- 590644801 — CONTROLS SYSTEM THROTTLE LEVER & STOP SWITCH
- 541402275 — SCREW SHSS, 10-24 X .312 CUP HK
- 529334201 — BEARING KIT BLADE GUARD SPARE PART MS 610 G
- 539990730 — HCS 3/8-16 X 1 3/4 GR5
- 542199648 — SWITCH
- 593262401 — WIRING ASSY KOHLER ENGINE
- 590719101 — HANDLE TUBING
- 529334301 — VALVE KIT WATER SPARE PART MS 610 G
- 586695101 — VALVE ASSY TSMS new range
- 542032366 — NUT
- 539990188 — FLAT WASHER 5/16 SAE
- 523075201 — BEARING WHEEL PRECISION GROUND
- 522676402 — SCREW SET 5/16-18 X 1.25 FHSCS
- 529333601 — HOSE KIT BLADE GUARD SPARE PART MS 610 G
- 596999501 — BLADE GUARD ASSEMBLY 14"
- 596999502 — BLADE GUARD ASSEMBLY 20"
- 596999503 — BLADE GUARD ASSEMBLY 24"
- 529333901 — SPLASH GUARD KIT SPARE PART MS 610 G
- 596999601 — BLADE GUARD w/TRACK RING 14"
- 589737401 — BLADE GUARD ASSY, 20" BLADE
- 595931801 — BLADE GUARD ASSY 24"
- 542046128 — DECAL BLADE GUARD SIZE
- 529334101 — HOSE KIT INNER BLADE GUARD 14" SPARE PART MS 610 G
- 529334102 — HOSE KIT INNER BLADE GUARD 20" SPARE PART
- 529334103 — HOSE KIT INNER BLADE GUARD 24" SPARE PART
- 505630401 — NUT Nyloc Hex Head
- 577813502 — CLAMP SAE J1508 TYPE CTB .41 NOM OD HOSE
- 542020739 — WASHER FLAT #10(3/16")/"
- 542186073 — SCREW HHMS, #10-24UNC x .50" LG
- 542020424 — BOLT
- 591095303 — TUBE WATER 14"
- 591095301 — TUBE WATER 20"
- 591095302 — TUBE WATER 24"
- 585973301 — SCREW EHHFM EN 1665 M 6 X 12 8.8 ZPB
- 505721901 — BOLT 99-G20-7001-01
- 542186256 — SUPPORTING BEARING PIVOT, UPPER
- 542186254 — SUPPORTING BEARING PIVOT, LOWER
- 539990717 — NUT 5/16 NYLOC
- 542020367 — SCREW HHCS .3125-18 x 3.5 GR 5 Z/P
- 539990122 — WASHER 3/8 SAE FLAT
- 542186129 — BALL BEARING 1.000" ID X 52 mm
- 542195237 — SHAFT COUNTER DRIVE, 1.00 DIA
- 541204624 — BOLT 5/16-18 X 2-1/2 HHCS ZP
- 539990588 — HCS 3/8C X 2
- 542206324 — SCREW SOCKET BUTTON HEAD CAP SCREW ISO 7380 M8 x60
- 731431801 — HEXAGON THIN NUT ISO 4035 M8 St 04 ZPB
- 591200801 — BRACKET DEPTH STOP
- 590377101 — ARM PIVOT
- 590377001 — ARM HEAD
- 542170150 — BOLT " CB. .375-16 x 1"" "
- 734117801 — WASHER ISO 7089 13x24x2.5 St 200HV ZPB
- 731432201 — HEXAGON THIN NUT ISO 4035 M12 04 ZPB
- 725255671 — SCREW EHHM ISO 4017 M 12 X 120 8.8 ZPB
- 542168133 — SCREW 3/8-24X1 POS.33/FUER
- 542020171 — NUT
- 541205197 — BOLT 5/16-24 X 1 GR 5
- 542205342 — HOUSING ARBOR, PC H-GRAY
- 542186028 — RETAINER RING EXTERNAL
- 542195232 — GUIDE BAR INNER,BLADE BELTS,GALV
- 542205346 — BELT GUARD BELT GRD WLDMT,GM-GAS,PC H-GRY
- 592858701 — BOLT 5/16-18 X .75 HEX FLANGE
- 542139273 — BALL BEARING
- 542030004 — SPRING WASHER
- 542195018 — BLADE SHAFT CUTTING
- 542177973 — COLLAR INNER, BLACK OXIDE
- 542030951 — FLANGE
- 542020378 — SCREW HHCS .5-20 X 1 GRADE 5 Z/P
- 542020377 — SCREW HHCS .375-16 X 1.5/GR 5
- 542060460 — YOKE
- 510179401 — LINK ROD
- 539990118 — SLW 3/8 STD
- 539976941 — HCS 3/8C X 1 1/4 GR5
- 542177894 — INSERT WOOD,15.88" LG,BLACK
- 542170038 — TUBE VINYL TUBING 3/8 I.D.
- 510417505 — STOP BACK CART W RUBBER TOP
- 542186057 — CART BKSTOP CONVEYOR CART, SGM N/P
- 542177976 — DECAL KIT SPRING. EXTENSION
- 542020301 — SCREW
- 539990209 — HCS 5/16C X 1
- 542193951 — BRACKET STOP ZP OR PC BLACK
- 542177904 — SCREW "RHWS. #8 x 1.25"" LONG. SLTD"
- 529335201 — BEARING KIT CART WHEEL SPARE PART MS 610 G
- 542030355 — GUIDE GUIDE. MEASURING CAST 6-20 L-L
- 542180987 — KNOB KNOB. TEE 5/16-18UNC X 1.00
- 542197101 — GROMMET
- 542020049 — CLAMP HOSE WORM DRIVE /SAE004
- 574609504 — FITTING HOSE BARB 4290-6-6
- 542177317 — PUMP WATER PUMP. MECHANICAL
- 542020568 — SCREW SHSS, .25-20 x .375
- 542177353 — PULLEY 1G3V2.65-.625
- 542205359 — BRACKET H2O PUMP,GM-GAS,PC H-GRAY
- 542172141 — KNOB
- 539977761 — HCS 1/4C X 1
- 529335501 — PUMP PRIMER KIT SPARE PART MS 610 G
- 585520901 — STRAINER SUCTION, WATER
