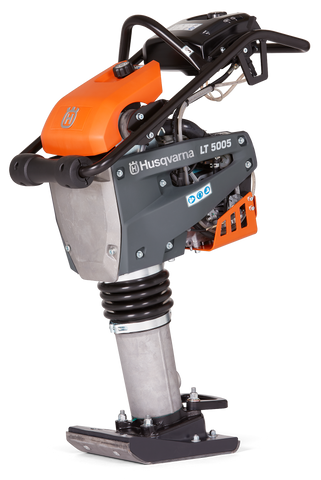

Husqvarna LT 5005 | RAMMER LT 5005 | 9" | 230 mm | INDICATOR | 967854601
Part Number: 967 85 46-01 (967854601)
The Husqvarna LT 5005 (Article 967854601) is a 9-inch (230 mm) rammer engineered for the compaction of granular and cohesive soils, including clay and silt. Its balanced, lightweight design is optimized for confined spaces such as trenches, or areas surrounding pillars and pipes.
This unit is powered by the Honda GXR120 engine, specifically developed for rammer applications to ensure consistent performance, reduced noise levels, and lower emissions. The machine includes an integrated indicator system to assist with operational monitoring.
Product Features
High compaction performance
Efficient compaction thanks to a powerful Honda engine mounted in a compact, durable chassis delivering high speed and high impact force.
Great ergonomics
The single lifting point and rollers on the steering bow make on-site handling easy. Transport wheel kit available as an accessory.
Easy to maneuver
The three-position throttle control (idle, full speed, stop/closed) also closes the fuel line to prevent leakage. The balanced design provides excellent traction and maneuverability.
Easy to service
Easy access to all service points including oil level checking (engine and foot), air filter cleaning/replacing. Equipped with hour meter, air filter indicator and oil warning indicator.
| Engine | |
|---|---|
| Motor/engine model | 4-stroke air-cooled |
| Engine Power (As rated by the engine manufacturer) | 3.6 hp |
| Exhaust emissions (CO₂ EU V) | 976 g/kWh |
| Power Source | Petrol |
| Product data | |
| Speed | 54 ft/min |
| Dimensions | |
| Plate width | 9.06 in |
| Weight | 134 lbs |
| Packaging length (Calc) | 43.307 in |
| Packaging width (Calc) | 17.717 in |
| Packaging height (Calc) | 38.189 in |
| Article gross weight (Calc) | 163.142 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 106 dB(A) |
| Sound pressure level at operators ear (LpA) | 104 dB(A) |
- 529755701 — FUEL TANK KIT TANK+CAP LT 5005/6005
- 590324603 — TANK CAP ASSY FUEL DISPENSER ICON ON TOP
- 595044702 — FUEL TANK PETROL LT5005/6005 NEW FILLER NECK
- 594193701 — FUEL HOSE KIT
- 594189601 — FUEL HOSE
- 594759301 — FUEL HOSE
- 594189501 — FUEL HOSE
- 594758901 — FUEL HOSE
- 594192901 — FUEL FILTER
- 594189401 — THROTTLE CONTROL
- 594523301 — SCREW M6SF M6X16
- 594125701 — PIPE CLAMP
- 595349701 — SOCKET Hex. Screw
- 595036501 — PLANE WASHER Ø6.4x12x1.6
- 595036001 — LOCK NUT
- 594125801 — HOSE CLAMP
- 594119601 — SCREW M6x20 8.8 A2K
- 594126001 — CABLE Tie
- 598044102 — CABLE CONDUIT 640mm
- 598044201 — CABLE CABLE CONDUIT
- 598053701 — MANIFOLD Y-MANIFOLD
- 595112601 — NUT
- 595111201 — SCREW
- 594125601 — PIPE CLAMP
- 546476601 — THROTTLE LEVER
- 594168701 — AIR FILTER
- 594168001 — HOUSING AIR FILTER COMPLETE
- 594179001 — GASKET
- 595367601 — CASE AIR FILTER
- 594169101 — VALVE EVACUATOR
- 596687001 — BRACKET Top
- 595363702 — HOLDER HOUR METER AND AIR INDICATOR LT5005 and LT6005
- 594178301 — INDICATOR AIR FILTER, COMPLETE
- 595111101 — SCREW M6x14 8.8 ZPB DIN912
- 594169201 — HOUR METER
- 594121701 — SCREW RXK Phil ST 2.9 X 6.5
- 595043901 — WASHER 8.7
- 595348301 — SCREW HEX. SOCKET MC6S M8x20 8.8 FZB DIN912
- 595348101 — SOCKET Hex, Screw. Capscrew
- 594177101 — ENGINE OIL INDICATOR, COMPLETE
- 594125901 — HOSE CLAMP
- 594168301 — HOSE Air intake
- 594168101 — HOSE CONNECTOR Air intake
- 594437601 — HOSE
- 594122701 — NUT Fine Pitch, M12 X 1.25 MM
- 594161701 — CENTRIFUGAL CLUTCH
- 594592201 — STUD
- 595035501 — NUT Fine Pitch
- 594177001 — ENGINE HONDA GXR 120
- 594460001 — KEY
- 594189901 — PUMP Primer
- 594191201 — COVER HEAD
- 594191301 — BOLT Flange
- 595374201 — CAP Packing, Oil Filler
- 595374301 — CAP Assy, Oil Filler
- 594585101 — SPARK PLUG
- 595048901 — GASKET
- 595374401 — BOLT Drain Plug
- 595372401 — GASKET Muffler
- 595129001 — MUFFLER
- 595372301 — MUFFLER Comp
- 594213801 — CARBURETTOR Honda
- 594215601 — STARTER ASSY Recoil
- 594190201 — KNOB Recoil starter
- 594190301 — STARTER ROPE Recoil
- 594190101 — RECOIL SPRING STARTER
- 594189801 — SPACER Recoil Starter Mountign
- 594442101 — GEAR WHEEL
- 594537401 — ROLLER BEARING Needle
- 594442201 — CONNECTING ROD
- 594258501 — BALL BEARING
- 594124701 — RETAINER RING For Shaft
- 594537301 — ROLLER BEARING Needle
- 595114001 — SNAP RING 35x1.5 DIN471 SS1581
- 594531701 — BALL BEARING
- 595046201 — SNAP RING
- 594537601 — SEALING
- 594444001 — SHAFT
- 594166901 — CRANKCASE
- 595355201 — O-RING NBR 70 SHORE
- 595362901 — COVER
- 595179801 — SCREW
- 594501701 — PIN
- 595117701 — O-RING
- 594747401 — WASHER PLAIN 10.5x22x2
- 595348701 — SCREW
- 594488501 — TUBE Outer
- 594444101 — BOLT
- 595052201 — PLUG
- 594461401 — PISTON Head
- 594459901 — COVER
- 594461301 — SPRING
- 594461201 — SPRING
- 594461801 — STOP
- 594461501 — PISTON
- 594461701 — STOP
- 594490401 — CLAMP
- 594546301 — SCREW
- 594651901 — BELLOWS
- 594490301 — CLAMP
- 594459701 — BRACKET
- 594518501 — LEVEL GLASS
- 594462301 — GASKET
- 594459801 — TUBE Inner
- 595174901 — COVER
- 594537501 — PLUG Threaded
- 595047001 — O-RING
- 595974401 — SCREW Int.Hex
- 594127701 — SEALING WASHER
- 594518401 — WASHER Fibre
- 595052301 — HANDLE
- 594123301 — NUT M12, 10.9
- 594760001 — FOOTPLATE Ramming mount 6 in
- 594193501 — FOOTPLATE 9 Inch LT 5005
- 594168501 — PLATE Base
- 594461901 — FOOTPLATE Plastic
- 594122101 — BOLT
- 594123401 — WASHER 8.4 X2 2 X 3 MM
- 594123001 — LOCK NUT
- 594168601 — PLATE Base
- 594462201 — SUPPORT LEG Plastic
- 548481901 — SERVICE KIT LT 5005 12 MONTHS + BOX | LT 5005/6005
- 595363801 — INDICATOR KIT
- 594211301 — REPAIR KIT Shock Absorber
- 594167001 — ABSORBER Shock
- 595036601 — WASHER
- 595034501 — SCREW HEXAGON SOCKET M8x25 8.8 FZB ISO 4762
- 594655101 — REPAIR KIT Transmission
- 595045601 — SNAP RING
- 595353501 — CIRCLIP D 072
- 595111301 — SCREW
- 595112901 — WASHER
- 595033401 — SCREW M6S M8x25 FZB
- 594657101 — REPAIR KIT Spring Unit
- 594211501 — REPAIR KIT Foot 150 mm, 6 Inch
- 594122401 — BOLT
- 594122201 — BOLT
- 594123201 — LOCK NUT
- 596764701 — FOOTPLATE "9", Rep Kit"
- 594120301 — SCREW M6x35 8.8 FZB DIN912
- 595383801 — REPAIR KIT BELLOWS LT 5005
- 596023801 — WHEEL KIT DEVICE
- 594661401 — LABEL Start Instruction
- 594660901 — LABEL Lifting Point
- 594660001 — LABEL Air filter Indicator
- 594659801 — LABEL Safety, Hot surfaces
- 595344001 — RIVET Pop, D2,4X8,6 AD 34 ABS
- 594660201 — LABEL Fuel
- 594660101 — LABEL Start instruction
- 594661101 — LABEL Engine Choke and Primer
- 595512601 — DECAL Spring Warning
- 594661301 — LABEL Engine
- 594659601 — LABEL Safety
- 594661501 — DECAL Noise 106 DB
- 597194401 — DECAL EPA Fuel Tank
- 595319801 — DECAL LG 300 Crown flat 55 mm
- 594754801 — LABEL Product, LT 5005
- 596280201 — DECAL Compliance RCM
- 594661801 — LABEL Filter Knob
- 594191501 — FRAME Protective, CPL
- 594458501 — VALVE Shaft
- 594167301 — COVER Rear
- 594959401 — ENGINE COVER
- 595034201 — SCREW
- 594167401 — COVER Right side
- 594167501 — COVER Left side
- 595035701 — NUT Hexagon
- 594181501 — SPACER
- 594759801 — BRACKET Top, Complete
- 531043301 — HOUSING ASSY KIT FILTER BOX and HOOD RETROFIT KIT LT 5005/6005
- 595367602 — CASE AIR FILTER ADAPTED FOR RUBBER LATCH
- 599995201 — HOOD WITH RODS LT5005, LT6005, LT8005
- 598291901 — LOCK ASSY
- 595187301 — SCREW M5x16 BLACK
- 595352401 — NUT M05х0.80
- 598046101 — SCREW HEX SOCKET M4x25 10.9 FZB
- 529371401 — CONICAL TUBE F HOUR METER FIX
- 599995401 — BRACKET LT HOOD
- 595187101 — LOCK NUT M6 DIN985
- 598083901 — FLAP VANE
594214502
Service kit LT 5005/6005
