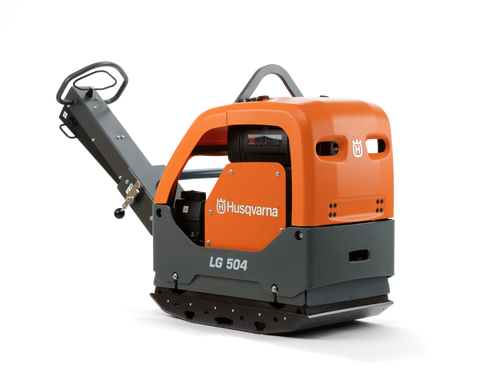

Husqvarna LG 504 | REVERSIBLE PLATE LG 504 | Hatz | 700 mm | 2x75 | EPA | CI | EL | 967855522
Part Number: 967 85 55-22 (967855522)
The Husqvarna LG 504 is a reversible plate compactor engineered for the efficient compaction of medium-deep to deep granular soils. Designed as a high-performance alternative or complement to rollers, this unit is optimized for operation in confined spaces. It is powered by a Hatz 1D81Z diesel engine and features a 700 mm plate width, providing robust performance and reliability for demanding job sites.
- Model: LG 504
- Engine: Hatz 1D81Z diesel
- Plate Width: 700 mm
- Article Number: 967855522 / 967 85 55-22
- Design: Ergonomic and service-friendly
Product Features
Plates made to last
The plates are made from extremely durable and wear-resistant Hardox® 400 steel. The special design keeps rocks from getting stuck between the plate and frame.
Strong protection, easy transportation
The heavy-duty steel frame protects the engine and transmission. The frame is also equipped with a lifting eye for easy transportation.
Know when you’re done
The compaction indicator tells you when the ground is ideally compacted and when to move on to the next task, saving you time and money.
Ergonomics and efficiency
The vibration damping handle allows you to work efficiently for hours.
Easy operation
The forward/reverse lever and fixed handle grip make handling easy on all surfaces. You don’t have to push/pull constantly during operation.
| Engine | |
|---|---|
| Motor/engine model | 1D90E |
| Engine Power (As rated by the engine manufacturer) | 14.1 hp |
| Starter | Electric |
| Power Source | Diesel |
| Product data | |
| Centrifugal force | 14,612 lbf |
| Speed | 105 ft/min |
| Compaction Indicator | Yes |
| Dimensions | |
| Plate width | 27.56 in |
| Weight | 1,093 lbs |
| Packaging length (Calc) | 51.181 in |
| Packaging width (Calc) | 37.008 in |
| Packaging height (Calc) | 62.205 in |
| Article gross weight (Calc) | 1,236.793 lbs |
- 594756801 — COVER
- 595110301 — SCREW M12x35 8.8 FZB ISO4017
- 595066501 — WASHER 13X30X4 HB305
- 594756701 — ENGINE PLATE
- 594121001 — SOCKET Hexagon, Screw
- 594141501 — STRAP
- 595345201 — BOLT Hexgon
- 594124001 — WASHER 13X36X6 FZB
- 594182101 — COVER
- 595344601 — SCREW
- 594123501 — PLANE WASHER (A) DIN 9021 10.5x30x2.5
- 595127201 — COVER PLASTIC BLACK
- 594187001 — ABSORBER Shock
- 595035801 — NUT
- 595036701 — WASHER M16 200HV ISO7089
- 594185101 — STOP Rubber
- 594747401 — WASHER PLAIN 10.5x22x2
- 594188701 — PLATE SINGLE EXTENSION 150 MM LG 504
- 595128701 — PLATE
- 594119401 — SCREW Hexagon Head
- 594124301 — WASHER Conical
- 594182001 — GROUND PLATE
- 594759901 — O-RING
- 594179501 — HOUSING Eccentric
- 594175201 — HYDRAULIC CYLINDER
- 595287401 — SCREW Hex. Sock
- 594643001 — CAP
- 594127501 — NIPPLE Elbow
- 595031101 — PIN
- 594184301 — SEALING
- 594182301 — PISTON ROD
- 595113901 — CIRCLIP
- 594183601 — BALL BEARING
- 595046301 — RING
- 594182401 — PISTON
- 594443901 — STOP SCREW
- 595037201 — CIRCLIP DIN 471 D055
- 594183401 — BEARING
- 594124901 — CIRCLIP For Shaft
- 594547601 — BALL BEARING
- 594186701 — PIN
- 595034701 — SCREW
- 594179701 — ECCENTRIC Weight
- 594183501 — SPRING
- 594322801 — STOP
- 595037401 — CIRCLIP for shaft
- 594186801 — COVER
- 594191701 — BEARING COVER
- 594184201 — RADIAL SEAL Lip Type
- 594547501 — RING
- 594124801 — CIRCLIP 60x2 DIN471 SS1581
- 594174901 — GEAR
- 594547001 — KEY
- 594179801 — SHAFT Eccentric
- 594187501 — KEY
- 594175301 — SHAFT Eccentric
- 595036401 — WASHER
- 594191801 — COVER
- 594118401 — SCREW HEX. HEAD M10x20 FZB ISO4017 DIN933
- 594321601 — WASHER
- 595374901 — PULLEY
- 594191901 — BELT COVER Seald
- 595355301 — PLUG
- 594124601 — WASHER Lock, M6
- 595039701 — O-RING
- 595349401 — SCREW M6MMX20MM
- 594179901 — GEAR Reverser
- 594175001 — GEAR
- 595050801 — KEY
- 595347901 — SOCKET Hex. Screw
- 594120901 — SCREW
- 594757101 — PROTECTION Heat
- 594757001 — INSULATION Sound
- 594756901 — INSULATION Sound
- 595051701 — WASHER INSULATED
- 595367401 — EXHAUST PIPE
- 594548601 — NUT
- 595067901 — WASHER 13X24X4 HB305
- 594486101 — SCREW
- 595050001 — BRACKET
- 594330501 — SHAFT
- 594368201 — KEY Flat
- 595067301 — WASHER
- 595344301 — SCREW M8x30 DIN 933 A4 SCREW
- 594827501 — COVER Inner
- 594646801 — CLUTCH
- 595348301 — SCREW HEX. SOCKET MC6S M8x20 8.8 FZB DIN912
- 595036601 — WASHER
- 594759701 — INSULATION Wall
- 594757701 — INSULATION
- 594189102 — V-BELT
- 595276501 — COVER COMPLETE
- 595089001 — BELT COVER
- 594119901 — SCREW Flange, M8
- 594180801 — V-BELT Cover
- 594329501 — CLIP
- 594329401 — SCREW
- 594336901 — HOSE Oil Drain
- 595049601 — HOSE 3/4 CLEAR PVC
- 594164501 — PROTECTION Rubber
- 594753001 — FLANGE
- 595034401 — SCREW M 8X 16;SOC HD CAP,$STL
- 594182801 — BRACKET
- 594119501 — SCREW Hex. Head
- 595029401 — NUT M10 DIN 934-8 Zn
- 594431401 — DRIVE BELT Stretcher
- 595045501 — SNAP RING
- 594259101 — BALL BEARING
- 595046101 — SNAP RING
- 594440101 — PULLEY BELT
- 594431501 — SHAFT
- 595345301 — SCREW Hex. Head, M12-1,75X25 8.8
- 595034501 — SCREW HEXAGON SOCKET M8x25 8.8 FZB ISO 4762
- 596241206 — ENGINE Hatz 1D81Z-342B Ref. S02446902 EU
- 594192401 — BELT GUIDE
- 595345001 — SCREW Hex. Head
- 594192701 — BALL BEARING
- 594192301 — DRIVE BELT Pulley
- 594192601 — SHAFT
- 594126501 — BALL BEARING
- 595370801 — PROTECTION Heat
- 596241207 — ENGINE Hatz 1D81Z-344B Ref. S02449402 EU
- 595373201 — ENGINE Hatz, 1D81Z EL EPA
- 529605701 — ENGINE 1D90E El EPA for LG504
- 594207701 — FUEL TANK CPL
- 594309201 — CAP Filler
- 594573801 — WASHER
- 594574001 — SPACER
- 594583201 — WATER SEPARATOR CPL
- 594579901 — FUEL FILTER HATZ REF. 40089401
- 594593301 — CLUTCH Lining
- 594593201 — WEIGHT
- 594593401 — COVER
- 594593501 — SCREW
- 594494501 — SPRING
- 594593101 — HUB
- 594593601 — COVER
- 594593701 — LOCKWASHER
- 594194801 — BALL BEARING
- 594593001 — WASHER
- 594584401 — RING Snap
- 595069901 — RING Nilos
- 594584501 — RING Snap
- 594592901 — DRIVE BELT PULLEY
- 594175501 — HANDLE
- 594153001 — ABSORBER Shock
- 594427301 — COVER
- 595110101 — SCREW SCREW
- 594333601 — HANDLE Grabb, Ball
- 594501401 — NUT
- 594347101 — HOOK
- 595030801 — PIN
- 594333901 — ABSORBER Shock
- 594152501 — HANDLE
- 594336801 — STOP Rubber
- 595060001 — NUT HEX DOMED CAP M12
- 594153501 — BUSHING
- 594119101 — SCREW
- 595113001 — WASHER
- 594153601 — CLAMP
- 594153301 — RETAINER
- 594153101 — STUD
- 594153201 — ABSORBER SHOCK
- 594153401 — RETAINER
- 595112701 — NUT
- 595069501 — STRIP Rubber, Adhesive face
- 595064801 — TRIM Edge
- 595118901 — LOCKWASHER
- 598089801 — COVER LID LG 504
- 595065601 — SCREW
- 594483001 — THROTTLE CONTROL
- 594490701 — LEVER
- 594482901 — THROTTLE CONTROL CABLE
- 595064501 — NUT M6
- 595057801 — SCREW Cap, SKTHD 8.8 ZN
- 595037501 — CLAMP
- 595036501 — PLANE WASHER Ø6.4x12x1.6
- 594331201 — NIPPLE
- 594645101 — BRACKET
- 594747101 — SCREW M5 X 30MM ISO A2-70
- 594176401 — THROTTLE CONTROL
- 594210201 — THROTTLE CABLE
- 595350001 — SCREW HEX M5x55
- 595348001 — SCREW
- 595472501 — CLAMP
- 595375901 — SPACER
- 595110801 — SCREW M4x16 8.8 FZB ISO4762 DIN912
- 594192001 — LATCH LG 504
- 594960101 — HOOD Rear RP505-PATRON
- 595067701 — SCREW
- 594535101 — WASHER
- 594446802 — HINGE
- 594534901 — SCREW
- 594180101 — FRAME Safety
- 594191601 — STOP Plate
- 595113201 — WASHER M4 200HV ZP ISO7089
- 595069201 — LOCK NUT M4 NYLON INSERT DIN 985
- 594957801 — COVER RP505-RATRON
- 594180601 — BEAM Cross
- 595113401 — WASHER
- 595111401 — SCREW
- 596889719 — SCREW Hex. Sock. MC6S M8x12 8.8 fzb
- 594330401 — CRANK Holder
- 595127101 — BRACKET
- 594192501 — CRANK Safety, Handle 140 mm
- 595117001 — NIPPLE
- 594219601 — CONNECTION
- 595354701 — WASHER BSP 1/4G
- 594186301 — HYDRAULIC PUMP
- 595347701 — SOCKET Hex. Screw M5х65 8.8 DIN 912 fzb
- 594123801 — PLANE WASHER
- 595128001 — ADAPTER
- 594520101 — ADAPTER
- 595287501 — HEXAGON NUT M6
- 594185801 — HYDRAULIC HOSE
- 594186001 — HYDRAULIC HOSE
- 594426301 — HYDRAULIC TANK Oil
- 594838801 — SCREW
- 594445401 — FILTER HOLDER
- 595033401 — SCREW M6S M8x25 FZB
- 595066601 — WASHER Plain STL
- 594443101 — COVER
- 594445501 — AIR FILTER
- 595047301 — O-RING
- 594120701 — SCREW Hex. Sock
- 595367201 — BRACKET
- 595116401 — NIPPLE
- 594127601 — HOSE COUPLING
- 595160701 — HOSE CLAMP
- 594181301 — HYDRAULIC HOSE
- 594455201 — HOSE Holder
- 594120401 — SOCKET Hexagon, Screw
- 594147401 — BRACKET
- 595055801 — SCREW Cap, M6-1X50 8.8
- 594324001 — BLOCK Rubber
- 594181101 — HYDRAULIC HOSE
- 594642601 — CONTROL LEVER
- 594185901 — VALVE Hydraulic, Complet
- 594208901 — COVER Rubber, For new control valve
- 594208801 — LEVER For new control valve
- 594208701 — PIN For new Control Valve
- 594209001 — SCREW For new Control Valve
- 594209101 — WASHER For new Control Valve
- 594208601 — LEVER Housing, For new control valve
- 594209601 — NIPPLE Mesuring
- 595036001 — LOCK NUT
- 595112601 — NUT
- 594127301 — CONNECTOR
- 595351601 — NUT
- 594125301 — PIPE CLAMP
- 595454701 — CLAMP
- 594186101 — CONNECTOR Elbow, 90
- 594186201 — HOSE CONNECTOR Straight
- 595113501 — WASHER
- 595287101 — SCREW
- 595055701 — SCREW Cap, M8-1,25X55 8.8
- 595118001 — O-RING
- 594432201 — CONTROL PANEL
- 531043801 — IGNITION SWITCH and CAP LH 700/LG 504
- 595070101 — KEY Starter
- 594513701 — DIODE Lamp
- 594463401 — BUZZER
- 594426701 — COVER
- 595470001 — NUT
- 594827101 — HOUR METER
- 594432301 — CABLE Harness
- 595054001 — SCREW CAP, M8-1,25X16 8.8
- 594347201 — CABLE Harness
- 594330701 — CABLE Battery
- 594118601 — SCREW
- 594747301 — WASHER 10.5 X 22 X 4 MM
- 594187401 — CABLE Battery Positive
- 594180501 — HOLDER
- 599212501 — INSULATION KIT LG 504
- 594485901 — BATTERY
- 595347801 — SOCKET Hex. Screw
- 595114601 — PIPE CLAMP
- 595366901 — HOLDER Battery
- 594187201 — ABSORBER Shock
- 594606401 — RELAY Charging
- 594218401 — SERVICE KIT Start Up Kit
- 594217201 — SERVICE KIT 12 MONTHS / 500 HOURS
- 594302401 — OIL FILTER
- 594305401 — AIR FILTER Element
- 594215001 — SERVICE KIT EACH 250 HOURS / 6 MONTHS
- 529723301 — SHEET Cover for throttle opening
- 594535701 — SCREW
- 536887801 — FUEL FILTER MAIN
- 536887701 — FUEL FILTER PRE
- 529636701 — CONTROL PANEL LG 504
- 536802901 — CAP IGNITION SWITCH LH 700/LG 504
- 594537801 — SCREW
- 596695246 — LOCK NUT
- 529679501 — HARNESS LG504 Hatz EPA, ECU to Conrol Panel
- 594330702 — CABLE Battery Negative
- 529637101 — BRACKET Locking plate for battery fixation of LG504
- 529637001 — HOLDER ASSY Battery holder for LG504
- 529636301 — SWITCH TWO POSITION, ROCKER, SPST, 20A, BLACK CARLING TECHNOLOGIES V1D2S00B-AZC00-000
- 537600701 — ELECTRIC MODULE RESISTOR ARRAY
- 529731601 — SPACER SLEEVE for LG 504
- 595110001 — BOLT
- 529605601 — PLATE for LG 300
- 529723201 — SPACER SLEEVE for LG 300/504
- 529725201 — IGNITION MODULE ECU LG 504 Hatz
- 594117701 — SCREW Hex. Head
- 529734101 — NUT DIN 439 M6 BZn
- 529679401 — HARNESS Hatz EPA, SpeedButten to ECU
- 595384501 — REPAIR KIT SHOCK ABSORBER LG 504
- 594218402 — SERVICE KIT START UP KIT
- 594217202 — SERVICE KIT 12 MONTHS / 500 HOURS
- 594215002 — SERVICE KIT 6 MONTHS / EVERY 250 HOURS
- 595390201 — REPAIR KIT Eccentric Element
- 598046301 — SCREW 6-P. SOCK SCREW
- 595390301 — REPAIR KIT Forward and Reverese Piston
- 595128901 — BLOCK PAVING KIT LG 504 950x700mm
- 594759001 — PLATE Polyurethane LG 504 950X700 MM
- 594446901 — BRACKET
- 594119801 — SCREW Flange screw M8x30 DIN6921
- 594758701 — PLATE EXTENSION KIT 75mm
- 595065201 — WASHER 21X36X6 HB305
- 594758801 — PLATE EXTENSION 6” 2x150mm
- 594761701 — INDICATOR KIT COMPACTION
- 594755701 — HARNESS Wiring Power Compaction Indication
- 595111201 — SCREW
- 595114801 — PIPE CLAMP
- 594125601 — PIPE CLAMP
- 595034801 — SCREW
- 595034201 — SCREW
- 594187701 — COMPACTION INDICATOR KIT LG 504
- 595133201 — SERVICE KIT
- 594660401 — LABEL Electric Engine Start
- 594660601 — LABEL Safety, Lock Handle
- 594660801 — LABEL Safety, Rotating V-Belts
- 585294801 — DECAL HUSQVARNA
- 595095601 — DECAL MODEL CODE LG 504
- 594869701 — LABEL Safety, Read instruction
- 576973401 — DECAL HUSQVARNA CROWN 70mm
- 594660501 — LABEL Throttle Control Non EPA
- 594661001 — LABEL Throttle Control EPA
- 594660301 — LABEL Charging, Hour MTR/Engine Oil Press
- 594660901 — LABEL Lifting Point
- 594659601 — LABEL Safety
- 594660701 — LABEL Operator Panel
- 594869601 — LABEL Manual start
- 595512801 — LABEL Hydraulic Oil Level
- 595469401 — DECAL
- 594661601 — LABEL Fuel
- 595871701 — LABEL Carton Prop 65
- 595513201 — LABEL Sound level
- 596280201 — DECAL Compliance RCM
- 594207601 — AIR FILTER COVER Cover Complete
- 594313501 — CYLINDER
- 594313401 — ELBOW
- 594571501 — NUT
- 594308301 — GASKET
- 596651101 — AIR FILTER COVER Complete
- 594800601 — PLUG
- 594308201 — GASKET
- 594307601 — BRACKET
- 594307501 — HOUSING
- 594207001 — INJECTOR Complete
- 594608901 — INJECTOR Fuel
- 596655101 — INJECTOR Complete
- 596651501 — INJECTOR Complete
- 594207201 — PIPE Fuel
- 594601801 — PIPE Fuel
- 594609001 — FUEL PUMP
- 594207301 — BOLT Banjo
- 595383301 — WASHER Gasket
- 595471501 — GASKET
- 595472101 — GASKET
- 595472001 — GASKET
- 595471901 — GASKET
- 594597101 — GASKET
- 594852801 — CLAMP
- 594853001 — SPACER
- 596655001 — PUMP Injection
- 596651401 — PUMP Injection
- 596655401 — SHIM 5.7 mm, 0.224 in.
- 594595001 — COVER Valve
- 594302801 — GASKET
- 594305601 — OIL Dip Stick
- 595131801 — O-RING
- 594557301 — COVER
- 594302901 — GASKET
- 594305701 — MUFFLER COVER
- 594305301 — MUFFLER CPL
- 594207401 — SEALING
- 594207501 — GASKET
- 594574701 — GASKET
- 596464901 — CLAMP CLAMP
- 594560101 — GASKET
- 596651301 — SUPPORT Bearing
- 596464401 — BLADE BUSHING
- 594306501 — STARTER Motor
- 594313901 — HOSE CLAMP
- 594313601 — COVER
- 594306801 — LEVER
594758701
Extension plates
594758801
Extension plates
