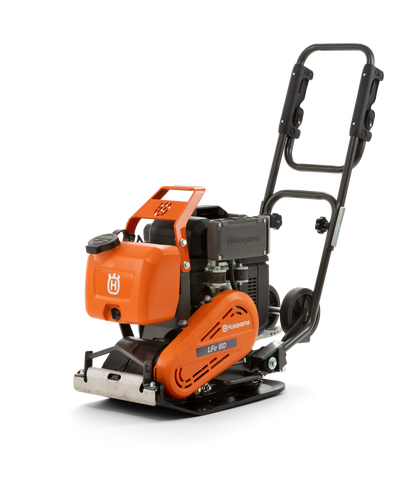

Husqvarna LFe 60 LAT | FORWARD PLATE LFe 60 LAT | Honda eGX | 350 mm | 970516901
Part Number: 970 51 69-01 (970516901)
The Husqvarna LFe 60 LAT (Article 970516901) is a battery-powered forward plate compactor engineered for the compaction of asphalt and soil. Designed for maintenance and repair applications, such as driveways and parking lots, this unit utilizes a brushless electric motor compatible with the Honda eGX battery platform. The machine features a 350 mm plate width and is optimized for zero CO₂ emissions and low noise operation.
Key design elements include a removable, easy-to-refill water tank and a specialized bottom plate and sprinkling system that prevent asphalt adhesion and surface marking. The unit is designed for minimal maintenance requirements and reduced operational costs compared to traditional combustion-engine compactors.
Product Features

Zero CO₂ emissions during use
Enjoy the freedom of working with an electric machine. Explore the potential of new applications by running the machine indoors or in urban areas where emissions or noise levels might be regulated.

Smoother workday and lower running cost
You're good to go with a simple push of a button and no need to refill fuel. The low need for maintenance means lower running cost and comfortable ownership for you.

Hours of ergonomic work
The patented low-vibration handle considerably reduces hand-arm vibrations. Thus, operators experience less fatigue and can work longer hours. This machine is equipped with transport wheels and a foldable handle for convenient transport.

Easier yet heavier
The electric motor and its battery is easy to handle and maintain. Yet, the machine in total is heavier than our corresponding petrol compactors, to ensure even better compaction results.

More work with the right amount of water
The adjustable water tank allows to precisely control the water flow to prevent the bottom plate from sticking to hot asphalt. To complement is the smart convex bottom plate which leaves no mark on asphalt.
| Engine | |
|---|---|
| Motor/engine model | Egx BLDC 36 V |
| Starter | Electric |
| Power Source | Battery |
| Product data | |
| Compaction application | Asphalt and Soil |
| Frequency | 50-60 Hz |
| Centrifugal force | 2,338 lbf |
| Speed | 72 ft/min |
| Dimensions | |
| Plate width | 13.78 in |
| Product size length | 39.6 in |
| Product size width | 13.8 in |
| Product size height | 38 in |
| Weight | 194 lbs |
| Packaging length (Calc) | 33.268 in |
| Packaging width (Calc) | 24.409 in |
| Packaging height (Calc) | 33.071 in |
| Article gross weight (Calc) | 233.69 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 100 dB(A) |
| Sound pressure level at operators ear (LpA) | 85 dB(A) |
| Vibration | |
| Vibrations left/front handle | 1.53 m/s² |
| Vibrations right/rear handle | 1.53 m/s² |
- 594183301 — GROUND PLATE
- 594480801 — SHAFT Eccentric
- 594526001 — BALL BEARING
- 594490101 — COVER
- 594128301 — SEAL Lip-type, oil
- 594486701 — PULLEY V-Belt
- 594123401 — WASHER 8.4 X2 2 X 3 MM
- 594120001 — SCREW Flange screw M8x25 DIN6921
- 595033201 — SCREW
- 594490201 — COVER
- 531160301 — ABSORBER Shock absorber A50/30 M10 Shore A 60
- 595067601 — WASHER 10.5x28x6 HB305
- 594122601 — HEXAGON NUT M10x10
- 594124601 — WASHER Lock, M6
- 531159901 — ENGINE PLATE Engine plate complete for LFe 60
- 594178501 — SPRINKLER BAR FRONT LF 60
- 599965901 — HANDLEBAR ASSY Front handle for LF60
- 594123001 — LOCK NUT
- 594120101 — SCREW
- 598046201 — SCREW COUNTERSUNK HEX. SOCK. SCREW
- 598125001 — PLATE
- 598125101 — RUBBER PLUG POLYURETHANE
- 598125401 — CLIP
- 594117701 — SCREW Hex. Head
- 598125601 — ANGLE BRACKET
- 598125701 — SPACER
- 594119801 — SCREW Flange screw M8x30 DIN6921
- 595990101 — SCREW WITH FLANGE
- 531234901 — HOLDER ASSY Holder assy welded assy for LFe 60 lifting eye
- 595112601 — NUT
- 529961601 — HOOK Lifting eye LFe 60
- 538643801 — HOLDER
- 538836801 — GROUND PLATE CPL LFe 60
- 596327401 — WATER TANK COMPLETE
- 598097701 — WATER TANK
- 594757501 — CAP
- 595061001 — WASHER NB 8,4x25x2
- 595033401 — SCREW M6S M8x25 FZB
- 595319801 — DECAL LG 300 Crown flat 55 mm
- 598097601 — TAP WATER TAP
- 598097501 — SPRAY NOZZLE SPRINKLER NOZZLE
- 531164601 — MOTOR Honda GXE2.0H integrated type, for LFe 60
- 538629901 — HOLDER ASSY Holder assy Welded assembly for LFe 60 HMI holder
- 594646001 — STOP
- 595349601 — SOCKET Hex. Button Head Screw
- 536830601 — ABSORBER RUBBER SPACER LFe
- 529961701 — PANEL HMI Panel LFe 60
- 594525901 — ABSORBER Shock
- 546257102 — HARNESS ASSY MAIN CIRCUIT HMI LFe 60
- 595110101 — SCREW SCREW
- 594125301 — PIPE CLAMP
- 538629601 — BASE ASSY Base assy Welded assy for LFe 60 HMI holder
- 596891203 — SCREW Countersunk Hex. Sock. MF6S M8x16
- 531163601 — SLEEVE Distance sleeve for LFe 60
- 546257202 — PARALLEL KEY FOR CRANKSHAFT eGX REWORKED
- 531163501 — PULLEY Pulley Driver pulley for LFe 60
- 594501601 — WASHER
- 599283701 — BOLT ASME B18.2.1-201 5/16-24UNF x 3/4" G5 ZPB
- 594488701 — DRIVE BELT 782 MM
- 970564301 — BATTERY HONDA eGX 72V 720Wh
- 534091801 — SHEET HMI plate plate for LFe 60 HMI box
- 503203476 — Screp Combi cross pan head
- 595036601 — WASHER
- 536830501 — ABSORBER Polyurethane washer LFe
- 531431201 — CONNECTOR HOUSING Carling Technologies VC2-01
- 546257502 — CABLE ASSY LED INDCATORS ASSY GREEN LFe 60
- 546257602 — CABLE ASSY LED INDCATORS ASSY YELLOW LFe 60
- 546257702 — CABLE ASSY LED INDCATORS ASSY RED LFe 60
- 546257802 — HARNESS ASSY POWER SWITCH LFe 60
- 537647501 — SEAL Rocker switch seal R711FC1-SXXXNXDNNX
- 536111701 — SWITCH Start stop switch
- 594484301 — BELT GUARD Inner
- 594960601 — BELT GUARD Outer
- 594648001 — SCREW
- 594650201 — LOCKING SPRING ISO 4042
- 594647801 — WASHER
- 597126701 — SCREW FLANGE М8Х12
- 598333001 — NUT M8
- 594168801 — HANDLE
- 594654401 — BRACKET
- 594654201 — SLEEVE
- 594654301 — KNOB
- 594123801 — PLANE WASHER
- 594265501 — RING Retainer
- 594168901 — HANDLE Lower, Part
- 594524801 — SCREW
- 595061901 — WASHER
- 594480401 — RUBBER SHOE
- 594481201 — BEARING SLEEVE
- 535751601 — TRANSPORT GUARD PLASTIC
- 594205101 — HANDLE DEVIBRATED LF50-60
- 594526601 — WASHER
- 594482201 — BRACKET
- 594480501 — ABSORBER Shock
- 594482101 — BRACKET
- 594525001 — SCREW
- 594524701 — NUT
- 594526701 — SCREW
- 595363901 — HANDLE
- 538627801 — AXLE Axle assembly Welded assembly for LFe 60 wheel kit
- 594455501 — WHEEL
- 598054801 — SCREW Hex Sock. Screw
- 537765101 — ARM Absorber arm Welded assembly for LFe 60 wheel kit
- 594120501 — SCREW
- 597867401 — SCREW Hexagon screw with flange M
- 594462701 — ABSORBER Shock
- 538628201 — LEVER Lever assembly Welded assembly for LFe 60 wheel kit
- 537679901 — ARM Arm for LFe 60 wheel kit
- 538628501 — SUPPORT Axle support Welded assembly for LFe 60 wheel kit
- 594747401 — WASHER PLAIN 10.5x22x2
- 595064701 — LOCK NUT w. Flange
- 595367501 — BLOCK PAVING KIT LF 60 ASPHALT
- 595127501 — PLATE
- 594181801 — BRACKET
- 594522501 — SCREW
- 546257901 — REPAIR KIT SHOCK ABSORBER LFe 60
- 594194301 — REPAIR KIT Eccentric Element
- 970564401 — BATTERY CHARGER HONDA eGX EU
- 970564402 — BATTERY CHARGER HONDA eGX US
- 970564403 — BATTERY CHARGER HONDA eGX UK
- 595180201 — SCREW
- 594659601 — LABEL Safety
- 594660901 — LABEL Lifting Point
- 594515401 — DECAL Sound Power Level" 100 DB"
- 596287701 — DECAL SPECIAL LOGO LF 50/60
- 531164401 — DECAL Decal model code for LFe 60
- 595186101 — DECAL Hot Surface
- 531164301 — DECAL Decal start instruction for LFe 60
970564301
Honda eGX battery
970564402
Honda eGX charger
595367501
Block paving kit
596327401
Water tank
