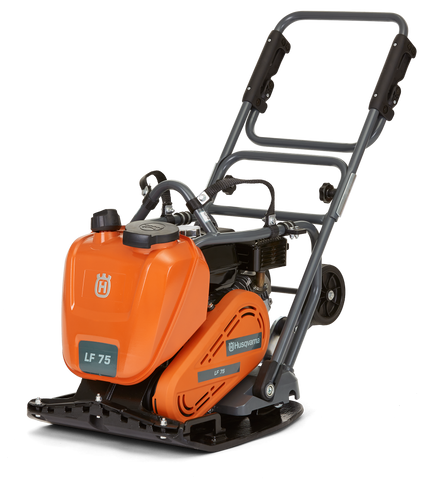

Husqvarna LF 75 LAT | FORWARD PLATE LF 75 LAT | 500mm | Honda | 967854902
Part Number: 967 85 49-02 (967854902)
The Husqvarna LF 75 LAT (Article 967854902) is a high-speed forward plate compactor engineered for the efficient compaction of asphalt and soil. This 500mm unit is specifically designed for maintenance and repair applications, including driveways and parking lots.
Key technical features include:
- Engine: Honda
- Plate Width: 500mm
- Water Management: Large-capacity water tank with an oversized cap for rapid refilling.
- Operational Design: The system is optimized to prevent sticking on hot asphalt and minimizes surface marking.
- Versatility: Capable of utilizing available on-site water sources.
Product Features
Hours of efficient work
The efficient, patented low-vibration handle lowers the vibration levels below 2 m/s², allowing you to work for hours without becoming fatigued or exceeding any regulatory threshold limit values.
Easy handling, excellent results
The watering system, that prevents the bottom plate from sticking to the hot asphalt, uses only a minimum of water thanks to the easily adjustable water flow.
More work with less water
The large corrosion-free water tank and smart water distribution system enable you to work longer with less stops for re-filling.
Easy to transport
Equipped with transport wheels for effortless transportation.
Saving storage space
The handle completely folds to save space, making transport and storage easy.
Optimized for asphalt
The bottom plate is specially designed for asphalt work, ensuring it will not get stuck on hot asphalt or leave turning marks.
| Engine | |
|---|---|
| Motor/engine model | GX160 |
| Engine Power (As rated by the engine manufacturer) | 4.8 hp |
| Starter | Recoil |
| Exhaust emissions (CO₂ EU V) | 757 g/kWh |
| Power Source | Petrol |
| Product data | |
| Compaction application | Asphalt and Soil |
| Centrifugal force | 3,372 lbf |
| Speed | 75.46 ft/min |
| Dimensions | |
| Plate width | 19.69 in |
| Product size length | 40.8 in |
| Product size width | 19.6 in |
| Product size height | 43.8 in |
| Weight | 209 lbs |
| Packaging length (Calc) | 33.465 in |
| Packaging width (Calc) | 24.016 in |
| Packaging height (Calc) | 33.465 in |
| Article gross weight (Calc) | 220.462 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 105 dB(A) |
| Sound pressure level at operators ear (LpA) | 91 dB(A) |
| Vibration | |
| Vibrations left/front handle | 6 m/s² |
| Vibrations right/rear handle | 1.2 m/s² |
- 594650701 — PLATE Bottom
- 594650601 — PLATE LF
- 594643801 — SHAFT Eccentric
- 594526101 — BALL BEARING
- 594490101 — COVER
- 594128301 — SEAL Lip-type, oil
- 594486701 — PULLEY V-Belt
- 594123401 — WASHER 8.4 X2 2 X 3 MM
- 594120001 — SCREW Flange screw M8x25 DIN6921
- 595033201 — SCREW
- 594490201 — COVER
- 594341901 — ABSORBER Shock
- 594122601 — HEXAGON NUT M10x10
- 594653301 — BAR Sprinkler, 420 mm
- 594653201 — BAR Sprinkler, 500 mm
- 594123001 — LOCK NUT
- 595033501 — SCREW
- 595287101 — SCREW
- 594124601 — WASHER Lock, M6
- 594486801 — HANDLE LIFTING RIGHT
- 594486901 — HANDLE LIFTING LEFT
- 595287301 — SCREW HEX. FLANGE SCREW M8x16 CL8.8 DIN 6921
- 594144601 — FRAME Protective
- 594958001 — COVER
- 594145401 — ENGINE PLATE
- 594838501 — WASHER
- 596392901 — WATER TANK SYSTEM KIT
- 594961101 — WATER TANK
- 594212301 — VALVE Sprinkler System, rod complete
- 594127901 — O-RING
- 594481901 — VALVE Rod
- 594128001 — O-RING
- 595061001 — WASHER NB 8,4x25x2
- 595062701 — NUT M8 -8 DIN985
- 594483301 — DECAL
- 594481401 — CAP
- 595033401 — SCREW M6S M8x25 FZB
- 595036401 — WASHER
- 594481101 — HANDLE
- 574382101 — DECAL HUSQVARNA CROWN HEIGHT 55MM
- 548866101 — TANK WATER LF
- 541049101 — SPRINKLE SHAFT SYSTEM KIT
- 548872501 — SHAFT WATER DISTRIBUTION
- 548872801 — SEALING PLUG WATER TANK
- 541049301 — NOZZLE ASSY KIT
- 548872601 — NOZZLE INNER
- 548880501 — O-RING WATER TANK NOZZLE 37 x 2,4 mm - NBR
- 548872701 — NOZZLE OUTER
- 599608301 — SCREW ITXSCT PT5xL T27 10.9 Zn/Fe L=20
- 541049201 — CAP AND O-RING KIT
- 505142901 — CAP Water cap
- 510242701 — O-RING Water cap NBR 100/90/4
- 594161101 — ENGINE Honda GX160UH2-SX-S4-SD
- 595112901 — WASHER
- 594484201 — WASHER
- 594499101 — SCREW
- 594480101 — CENTRIFUGAL CLUTCH
- 594488801 — V-BELT
- 594204001 — SPARK PLUG
- 594203801 — OIL Dip Stick
- 595374201 — CAP Packing, Oil Filler
- 595048801 — GASKET
- 594204601 — FUEL CAP
- 594204501 — FUEL TANK
- 594302101 — AIR FILTER ELEMENT HONDA GX160
- 594300601 — STARTER Recoil, Cpl
- 595049101 — ROPE STARTER
- 594204801 — STARTER Recoil, Complete Honda
- 594960701 — BELT GUARD
- 594483101 — BELT GUARD Inner
- 594119801 — SCREW Flange screw M8x30 DIN6921
- 594648001 — SCREW
- 594650201 — LOCKING SPRING ISO 4042
- 594647801 — WASHER
- 595503101 — FORK LIFT DEVICE LF 75/130
- 594489901 — FORK LIFTING DEVICE/STRAPS
- 595182701 — WASHER
- 594761101 — HANDLE CPL (honda)
- 595071601 — SOCKET Hexagon, Head cap
- 594654701 — SLEEVE
- 594480401 — RUBBER SHOE
- 594654001 — HANDLE
- 594654101 — HANDLE
- 594654401 — BRACKET
- 594654201 — SLEEVE
- 594654301 — KNOB
- 594123801 — PLANE WASHER
- 594265501 — RING Retainer
- 594205001 — HANDLE DEVIBRATED LF75/100
- 594526601 — WASHER
- 594482201 — BRACKET
- 594480501 — ABSORBER Shock
- 594482101 — BRACKET
- 594525001 — SCREW
- 594524701 — NUT
- 594526701 — SCREW
- 594166301 — HANDLE
- 594204901 — WHEEL KIT DEVICE KIT LF
- 594648701 — BRACKET Left
- 594648901 — BRACKET Right
- 594648801 — FORK
- 594455501 — WHEEL
- 596889707 — SCREW Hex. Head M6S M8x12 8.8 fzb
- 594462701 — ABSORBER Shock
- 594651001 — HOOK
- 595064701 — LOCK NUT w. Flange
- 594747401 — WASHER PLAIN 10.5x22x2
- 594118401 — SCREW HEX. HEAD M10x20 FZB ISO4017 DIN933
- 595466301 — SCREW
- 595068501 — CLAMP
- 594646001 — STOP
- 595112601 — NUT
- 594868101 — BLOCK PAVING KIT LF 75/80 420mm
- 594484601 — PLATE Polyurethane
- 594484701 — BRACKET
- 595036601 — WASHER
- 594522501 — SCREW
- 594868201 — BLOCK PAVING KIT LF 75/100/130 500mm
- 594484801 — PLATE Polyurethane
- 594484901 — BRACKET
- 548481801 — SERVICE KIT 12 MONTHS + BOX | LF 75/80/100/130
- 595385301 — SERVICE KIT Start Up
- 595051301 — SPARK PLUG HONDA 98079-56846
- 594194601 — REPAIR KIT Shock Absorber
- 594526401 — WASHER
- 594530001 — SCREW M12x50, 8.8, AZK
- 594194401 — REPAIR KIT Eccentric Element
- 594523301 — SCREW M6SF M6X16
- 594486201 — DECAL
- 594486301 — DECAL Warning
- 595513202 — DECAL SOUND LEVEL NOISE 104dB
- 595180201 — SCREW
- 594660901 — LABEL Lifting Point
- 595094501 — DECAL LF 75 Model Code
- 595900401 — DECAL Model code LF 75
- 596280201 — DECAL Compliance RCM
- 594660201 — LABEL Fuel
- 595186101 — DECAL Hot Surface
- 595094201 — DECAL LF 75/LF 80/LF 100/LF 130 Special Logo
- 594659601 — LABEL Safety
- 595871701 — LABEL Carton Prop 65
594868101
Block paving kit
594868201
Block paving kit
548481801
Service kit LF 75/LF 80/LF 100/LF 130 Honda
595503101
Fork lift device
594204901
Transport wheel kit
594216202
Service kit LF 75/80/100/130
