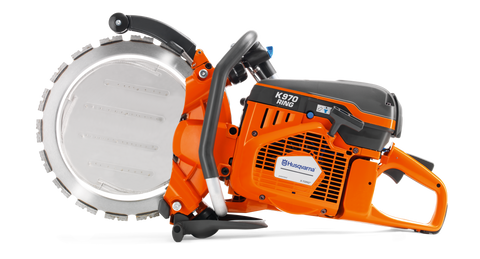

Husqvarna K 970 Ring | POWER CUTTER K 970 Ring 17" / 430 mm | 970608201
Part Number: 970 60 82-01 (970608201)
The Husqvarna K 970 Ring (Article 970608201) is a specialized power cutter engineered for applications requiring significant cutting depth. With a 17-inch (430 mm) blade capacity, this unit provides double the cutting depth of standard power cutters, allowing for deep cuts to be completed from a single side. It is designed for high-capacity performance in small to medium-sized cutting tasks.
Product Features
Deep cutting
Irregular deep cutting.
Sturdy and reliable
Less sensitive to outdoor conditions and fuel variations, thanks to the cylinder design and muffler with integrated heat deflector.
Light and powerful
A light, compact and powerful machine with superior power-to-weight ratio.
Easy to start
The unique design of the carburetor, cylinder and digital ignition system, together with air purge and decompression valve, ensure an easy start.
Long service intervals
A strong Poly-V belt combined with our maintenance-free DuraStarter™ and efficient filter-system Active Air Filtration™ ensure long service intervals.
Less slurry and low water consumption
Excellent dust control with our wet cutting kit. A progressive water valve for exact adjustment of the water volume to efficiently bind the dust and reduce slurry.
Anti-vibration system
Our anti-vibration system reduces vibrations in the cutter handles, so they are more comfortable to hold and can be used for longer periods. To provide the user a comfortable operating position reduced strain, the distance between the handles is large. The handles and the short engine body mean the user always stands close to the machine, for easier handling and control.
Pipes
Pipe cutting.
Blocks, curbstones and pavers
Cutting building blocks, curbstones and garden pavers.
Cast concrete
Cutting cast concrete.
Floors and walls
Regular cutting in floors and walls.
| Engine | |
|---|---|
| Output power | 6.5 hp |
| Cylinders | 1 |
| Number of strokes | 2-stroke engine |
| Exhaust emissions (CO₂ EU V) | 736 g/kWh |
| Power Source | Petrol |
| Cutting equipment | |
| Cutting depth, max | 12.8 in |
| Blade diameter, max | 17 in |
| Blade thickness, max | 0.22 in |
| Peripheral speed, max | 9,300 fpm |
| Coolant | Wet |
| Dimensions | |
| Product size length | 32.07 in |
| Product size length | 814.6 mm |
| Product size width | 8.82 in |
| Product size width | 224.2 mm |
| Product size height | 19.47 in |
| Product size height | 494.5 mm |
| Weight | 31.3 lbs |
| Weight (complete product w/o side packed articles) | 14.2 kg |
| Packaging length (Calc) | 36.22 in |
| Packaging width (Calc) | 11.614 in |
| Packaging height (Calc) | 20.866 in |
| Article gross weight (Calc) | 62.611 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 115 dB(A) |
| Sound pressure level at operators ear (LpA) | 104 dB(A) |
| Vibration | |
| Vibrations left/front handle | 3.5 m/s² |
| Vibrations right/rear handle | 3.4 m/s² |
- 574267601 — CRANKSHAFT ASSY
- 503250002 — BALL BEARING 6203
- 506414401 — CUP KPL
- 503256101 — NEEDLE BEARING Wristpin bearing 13x17x17.5
- 506280907 — BELT GUARD ASSY SPARE W/O SCREWS
- 538965102 — BELT COVER ASSY K970 RING 17"
- 575628502 — DECAL BELT GUARD K7000
- 503215321 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 20 10.9 ZnFe Lock
- 503701504 — CLUTCH ASSY HUB
- 503144903 — CLUTCH ASSY CLUTCH ASSY
- 588421501 — CLUTCH SPRING
- 503145101 — CLUTCH SPRING
- 525621001 — DRIVING PULLEY ASSY Ring saw K970
- 529352401 — DRIVING PULLEY ASSY K970 RING 17
- 529602601 — BALL BEARING 6001
- 506316901 — DUST COVER
- 544908401 — DRIVE BELT MICRO-V 8PJ607 K970 Ring
- 544908408 — DRIVE BELT MICRO-V 8PJ610 K970 Ring 17"
- 506280607 — BELT TENSIONER ASSY RING SPARE PART
- 544218437 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 37 12.9 Lock
- 735312810 — CIRCLIP SGH 28x1.2 St PP
- 732211601 — LOCK NUT M6
- 544218401 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 25 12.9
- 505283310 — HOSE CLAMP Jalmarson-MPC Mini
- 506414101 — INLET PIPE K960
- 544150101 — FLANGE Inlet
- 503215316 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 16 10.9 ZnFe
- 544113901 — CONSOLE Inlet pipe
- 503215330 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 30 12.9
- 506414201 — PLATE INSUGSRÖR
- 584913001 — CARBURETTOR K970II RWJ-7
- 505148401 — LEVER outer
- 576490401 — THROTTLE CABLE ASSY SPARE K970
- 598602501 — FLANGE Inlet pipe
- 521926701 — INLET PIPE
- 510243901 — FILTER insert bellows K1250 Mark II
- 501971803 — SCREW ITXSCM Internal Torx Socket Head Cap M4x62,5 ESLOK
- 586062101 — CHISEL GUIDE Carburetor K970 II
- 506232011 — CHOKE RESERVDEL
- 506272501 — WEAR PROTECTION CHOKE
- 502445801 — GASKET KIT carburetor D10-RWJ
- 502445903 — REPAIR KIT carburettor
- 593777701 — CHOKE SHAFT CARBURETTOR KIT
- 593776901 — THROTTLE SHAFT CARBURETTOR KIT
- 503215356 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 56 10.9 ZnFe Lock
- 503215326 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 25 10.9 ZnFe
- 584913308 — DECAL WARNING K970 II CE (UK & Rest of the world) 115db
- 584913301 — DECAL WARNING K970 II USA CANADA MEXICO (ENG_FR_SPA)
- 584913303 — DECAL WARNING K970 II JAPAN
- 587005109 — FILTER COVER ASSY W DECAL SPARE PART K970-II/-III R/C
- 510244106 — AIR FILTER With knob Polyester
- 586564002 — CYLINDER COVER ASSY ONLY SPARE PARTS HANDLING K970-II R/C
- 525617004 — SEALING Cover 2.1x3.4 700mm
- 585428301 — PLUG Topp DK
- 525571603 — DECAL CYL. COVER K970 RING
- 594071201 — SCREW BUFAB: TPPT400101 PT4x10 T20 St ZnFe
- 576431401 — COVER AIR INLET K970RING/CHAIN
- 578065301 — SEALING K970 RING/CHAIN
- 574507318 — STARTER ASSY SPARE PART K970/-II/-III
- 503216722 — SCREW IHSCFT PW4.8x22 CH DS
- 740431300 — O-RING BS 4518 15.3x2.4 NITRILE RUBBER
- 510000801 — SEALING
- 506263101 — SPACING SLEEVE START
- 506253001 — COMPRESSION SPRING
- 525887402 — SCREW CITXPANT PW3.5x10 T10 CH TBO
- 596293101 — RECOIL SPRING ASSY
- 588155801 — STARTER PULLEY
- 544287502 — AIR CONDUCTOR COOLING K970
- 506335615 — CORD STARTER
- 506335650 — STARTER ROPE LÅNGLIVS
- 584257903 — STARTER HANDLE ASSY WITH COVER GREY
- 505349402 — STARTER COVER K970II
- 501981020 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 20 10.9 Lock
- 525571102 — DECAL STARTER
- 525887403 — SCREW CITXPANT PW3.5x6.5 T10 CH TBO
- 506318604 — STOP SWITCH Plate 1.0mm
- 501839801 — CABLE stop switch 4.8x0.8
- 590504501 — SPARK PLUG CAP
- 503235111 — Spark plug NGK BPMR7A
- 594729604 — IGNITION MODULE ASSY HDS2.8.3CCN114 ICS695
- 576851602 — PROTECTIVE HOSE IGNITION CABLE protection L=115mm
- 505574120 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 20 10.9 ZnFe
- 503230101 — WASHER 8.4x16x1.5 St
- 503221011 — HEXAGON NUT M8x1 10 TBO
- 587702101 — FLYWHEEL ASSY D120
- 503230042 — WASHER 5.3x10x1 1778-04 MNPP
- 501634801 — SPRING PAWL D=0.6mm
- 501673203 — PAWL
- 506006901 — SCREW M5x14 T27 10.9 Zn/Fe LOCK
- 544218440 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 40 12.9
- 586351004 — CYLINDER ASSY W PISTON SPARE PART
- 577997602 — HEAT DEFLECTOR
- 585280901 — GASKET
- 587631101 — MUFFLER ASSY 94cc
- 503215325 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 25 12.9
- 503230402 — WASHER LOCK 5.4x9x1.8 Zn FLAKE (DELTA PROTECT)
- 584912201 — DECOMPRESSION VALVE TOP K970 II
- 594890101 — GASKET Cylinder
- 506413202 — PISTON ASSY SPARE PART
- 503289035 — PISTON RING D56X1.2 G2
- 737441300 — CIRCLIP B13X1
- 578119101 — SLEEVE CYLINDER
- 544229808 — GASKET KIT K960 K960/K970/K970-II INCL RING&CHAIN
- 503260204 — SEALING RING 15X26X6
- 506413904 — GASKET Crankcase K960 DC/C/R K970 DC/C/R
- 577988901 — GASKET Crankcase K970
- 576499401 — GASKET cylinder K970
- 536853907 — FUEL TANK ASSY SPARE PART K970-III/RING
- 546291601 — PIN Parallell Pin 25x3 SS
- 537208501 — Cable lever
- 510255201 — THROTTLE LOCKOUT GREY K970
- 537205601 — COVER Double Injection Husqvarna Grey
- 574444201 — CLIP fuel hose
- 581756202 — FUEL HOSE spiral 300
- 537042418 — FUEL HOSE L=183
- 598836601 — FUEL FILTER KIT KIT SPARE PART
- 598700501 — TANK VENT ASSY K970
- 501152901 — TANK VENT ASSY
- 502471601 — GROUND SUPPORT REAR GREY K970
- 540054901 — PURGE AIR CLEANER | AIR CLEANER Zama
- 502471803 — THROTTLE CONTROL GREY K970
- 537209801 — SPRING GASREGLAGE
- 576139901 — FUEL HOSE purge return K970
- 522620001 — TANK CAP ASSY Grey
- 537215001 — SEALING
- 503578901 — Holder tank cap
- 544061201 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 27,5 10.9 ZnFe
- 537210309 — ANTIVIBRATION ELEMENT
- 537210310 — ANTIVIBRATION ELEMENT
- 537210305 — ANTIVIBRATION ELEMENT
- 525572003 — DECAL START INSTRUCTION K970 II
- 506313001 — LABEL 25:1 JPN
- 503230080 — WASHER 6.4x15x1 St MNPP
- 588058607 — CRANKCASE ASSY RING SPARE PART (KIT)
- 503215349 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 49 12.9
- 544096401 — BELT GUIDE
- 544097701 — BUSHING 9/5/13
- 593806001 — GUIDE BUSHING
- 522856101 — RUBBER BUSHING K970_ICS 695GC
- 506033202 — SCREW M8x37 12.X TBO
- 506349101 — BRACKET ASSY S-SIDA
- 505574116 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 16 10.9 ZnFe
- 582123301 — WEAR PROTECTION CHOKE
- 582564502 — NUT INSERT
- 503215420 — SCREW ITXSCT Internal Torx Socket Head Cap MT6x20 T27 10.9 Zn/Fe
- 585905601 — ANTIVIBRATION ELEMENT ASSY
- 599440601 — HANDLE Front K970 Tucan 14"
- 585019902 — HOSE GUARD K970
- 503266003 — COUPLER TYPE GARDENA 3/4" GHT W STOP ORIGINAL
- 503266004 — COUPLER HOSE CONNECTOR GARDENA 1/2" HOSE WITH STOP
- 581476219 — HOSE KIT VALVE ASSY K970-III Ring
- 506246907 — BLADE GUARD ASSY RING SPARE PART
- 506246908 — BLADE GUARD ASSY K6500-II RING 17" SPARE PART
- 503214601 — SCREW PW5x14 10.9
- 734488001 — WASHER
- 506262202 — WHEEL BLADE GUARD GREY
- 506312801 — COVER PLATE
- 506314501 — SPACING TUBE 8X6X35
- 504116701 — SPRING BLADE GUARD K950R&K3600
- 503263025 — O-RING 8.0X2.0
- 544218447 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 47 10.9 ZnFe Lock
- 506352701 — PROTECTIVE SPRING
- 505067603 — HOSE PVC 6/10 w spring L240
- 506498701 — HOSE CLAMP Norma cobra 10.5
- 506383307 — DISC Water blade Spare part K6500-II Ring 17"
- 506383308 — DISC Water blade RING SPARE PART
- 506382902 — NIPPLE
- 740421000 — O-RING BS 4518 12.1x1.6 NITRILE RUBBER
- 503215320 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 20 10.9 ZnFe Lock
- 506352206 — SPRAY GUARD ASSY GREY SPARE PART
- 506334902 — BUSHING
- 531048901 — O-RING 7.5x1.5 70NBR
- 506339501 — DRAW SPRING
- 506339601 — BOLT STÄNKSKYDD
- 506349001 — SEALING PLUGG
- 581478302 — NIPPLE ASSY WITH O-RING
- 589780701 — STRAINER wet cutting kit
- 505103501 — O-RING 10.5X2.7 EPDM
- 589638601 — HOSE CLAMP Oetiker stepless 9.4-11.9
- 578198111 — HOSE PVC Armerad 6 x 10 (grey) 355 mm
- 578243308 — VALVE ASSY Spare part
- 581357001 — LEVER ASSY W O-RINGS SPARE PART
- 503226504 — SQUARE NUT M5 12 TBO
- 503215341 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 40 10.9 ZnFe Lock
- 506351810 — LEVER ASSY SUPPORT ROLLER SPARE PART
- 506352104 — SUPPORT ROLLER KIT SLIT MUTTER R.DEL
- 503220401 — NUT WASHER M8x1 PP
- 506303401 — DRIVER LAGERH.
- 506399501 — SEALING
- 506321701 — WASHER DAMMTÄTNING
- 506379302 — SPACING SLEEVE TÄTNING
- 503262001 — SEALING RING 17X28X7
- 506316804 — SPACING SLEEVE OUTER 3,9
- 506303304 — SPACING SLEEVE INNER 3.9
- 506493202 — SHAFT RING CUTTER SUPPORT ROLLER NUT
- 506346301 — WASHER
- 503220001 — HEXAGON NUT FLANGE M8 St Zn/Fe
- 503263008 — O-RING O-RING 8X1
- 503263026 — O-RING 10.0X2.2
- 506346401 — SCREW
- 506334903 — BUSHING
- 506493303 — COVER SUPPORT ROLLER RING SPARE K960/950 DIE-CAST
- 506493305 — COVER SUPPORT ROLLER ASSY SPARE PART
- 503230403 — WASHER LOCK 8.7x13.5x2.5 Zn FLAKE (DELTA PROTECT)
- 503205435 — SCREW Internal Hexagon Socket Head Cap M 8 X 35 12.9 DS
- 740420400 — O-RING BS 4518 6.1x1.6 NITRILE RUBBER
- 506330801 — THREAD INSERT
- 505574901 — ADJUSTMENT WHEEL RING CUTTER K960/K3600MKII
- 506376301 — SPACER
- 506376401 — RUBBER BUSHING
- 544218455 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 55 10.9 ZnFe Lock
- 506351903 — WEAR PROTECTION ASSY SPARE K960RING/K3600II T27 SCREW
- 738881001 — LUBRICATION NIPPLE M6 St ZPB
- 503230401 — WASHER LOCK 8.7x16.6x2.5 Zn FLAKE (DELTA PROTECT)
- 725545905 — SCREW IHSCM ISO 4762 M 8 X 40 8.8
- 503200045 — SCREW EHHFM External Hexagon Head Flanged M 8 X 16 12.9
- 506277502 — PULLEY RING CUTTER K960 ALUMINIUM
- 501981080 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 80 12.9 Lock
- 547171301 — GROOVED PIN DIN 1469 C4x12
- 522657508 — CHASSIS ASSY K950/K960RING SPARE PART
- 506257301 — COMPRESSION SPRING
- 506328001 — LOCKING BUTTON AXELLÅSN
- 721440600 — SPRING PIN ISO 8752 10x10 St
- 735310800 — CIRCLIP SGA 6x0.7 St PP
- 503230112 — WASHER 6.5x10x0.8 St
- 503263022 — O-RING 5.85X2.4
- 506351503 — DRIVE SHAFT KPL
- 583953301 — BALL BEARING 6202-C3-Jr-LLU 15x35x11
- 544077602 — SLEEVE ASSY SPARE PART
- 506343901 — GASKET KIT 32X38.8X5
- 740482502 — O-RING BS 1806 31.47x1.78
- 506352305 — GEAR WHEEL ASSY SPARE PART
- 506374901 — SLEEVE TÄTNING
- 506374602 — FLANGE WASHER
- 506178305 — GEAR WHEEL Varantysis ratukas
- 506312202 — DRIVER SPAREPART
- 581855201 — SCREW External Hexagon Head Flanged M 8 X 37 12.9 ZPB
- 721425250 — SPRING PIN ISO 8750 4x12 St
- 740422400 — O-RING BS 4518 37.1x1.6 NITRILE RUBBER
- 506374801 — SEALING
- 503215312 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 12 10.9 ZnFe
- 506374701 — SEALING COLLAR
- 503262101 — SEALING RING 20X30X5
- 506363804 — TOOL KIT K960RING (T27)
- 506382601 — TOOL COMBINATION 13mm | 19mm | T27
- 501192201 — TOOL
- 506355201 — SPANNER COMBINATION RING 19 MM
- 506363601 — HEX KEY L-SPANNER 6 MM
- 506384902 — GUN LUBRICATION 400 cc
- 588814801 — 400 gr
- 503230116 — WASHER 8.4x20x1.2 St ZPB
- 584271202 — PULLEY PJ-profile Anodized, black
- 720130710 — PARALLEL PIN CP5h6x14
- 597166501 — LOCKING BUTTON KIT K6500-II RING 17"
- 522657510 — CHASSIS ASSY K6500-II RING 17" SPARE PART
- 581709801 — SPACER Ring Chassi K6500 Ring
- 506139511 — WASHER KUPAD 8.2X30
- 588487411 — ENGINE KIT K970-III RING
- 506493405 — BEARING CAGE NUT SPARE PART
- 506352007 — GUIDE ROLLER KIT SLIT 1SPÅR MUTTER R.DEL
- 506303303 — SPACING SLEEVE INNER 11.3
- 506316803 — SPACING SLEEVE OUTER 11,3
- 506493201 — SHAFT RING CUTTER GUIDE ROLLER NUT
- 506381101 — HUB CAP LAGERHÅLLARE
- 740482012 — O-RING BS 1806 23.52x1.78
- 506380901 — BEARING CAGE
- 506347603 — COMPRESSION SPRING ZINK FOSFATED
- 506303501 — BUMPER
- 506389701 — PEN VREDSTOPP KPL
- 544077601 — SLEEVE complete
- 506382202 — KNOB Assy
- 506336502 — SEALING RING
- 506382102 — HUB CAP KNOB,ORANGE
- 546903002 — SERVICE KIT K 970/K 1270
- 510244103 — AIR FILTER With knob P50
593351001
Pipe cutting clamp
587126701
Transport box
548738302
WT 60i
590708803
Pipe cutting clamp adapter
