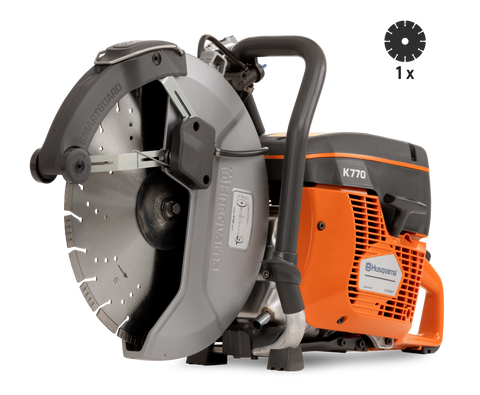

Husqvarna K 770 SmartGuard | POWER CUTTER K 770 SmartGuard 14" | Blade Incl | 970460002
Part Number: 970 46 00-02 (970460002)
The Husqvarna K 770 SmartGuard is a high-performance 14-inch power cutter designed for versatility and operational safety. This model features the SmartGuard blade guard, which is engineered to minimize the risk of kickback by promoting proper cutting technique and identifying the optimal cutting zone.
The unit utilizes the semi-automatic SmartTension system to ensure consistent power transmission and extended belt longevity. Engineered for high productivity, the K 770 offers a superior power-to-weight ratio, reliable starting mechanisms, and low vibration levels to reduce operator fatigue. It is compatible with the KV7 trolley for precise straight or curved cuts in roadwork and infrastructure applications.
- Article Number: 970460002 / 970 46 00-02
- Blade Size: 14 inches
- Key Technology: SmartGuard, SmartTension, DuraStarter, Active Air Filtration
Product Features
Easy and optimal belt tensioning
The semi-automatic SmartTension minimises the risk of under- and over tensioning.
Light and powerful
A light, compact and powerful machine with superior power-to-weight ratio.
Exceptionally low vibrations
Vibrations below 2.5 m/s2 in the cutter handles for more comfort and longer operation periods.
Long service intervals
A strong Poly-V belt combined with our maintenance-free DuraStarter™ and efficient filter-system Active Air Filtration™ ensure long service intervals.
Heavy-duty cutting arm
The new-designed cast magnesium crankcase has a three-bolt joint to attach the cutting head, enabling higher torsional rigidity than the previous two-bolt solution.
Easy to start
The unique design of the carburetor, cylinder and digital ignition system, together with air purge and decompression valve, ensure an easy start.
Less slurry and low water consumption
Excellent dust control with our wet cutting kit. A progressive water valve for exact adjustment of the water volume to efficiently bind the dust and reduce slurry.
Cuts close to walls or ground
The cutting arm is reversible which lets you cut closer to walls or the ground. The drive belt has a fully sealed transmission. This keeps out cutting dust etc, reducing wear.
Asphalt
Asphalt cutting in roadworks.
Blocks, curbstones and pavers
Cutting building blocks, curbstones and garden pavers.
Burying of cables
Burying of all kinds of cables.
Cast concrete
Cutting cast concrete.
Floors and walls
Regular cutting in floors and walls.
Rescue cutting
Cutting in rescue operations.
Blade shaft and bearings
Provide extended blade life and reduces maintenance.
| Engine | |
|---|---|
| Output power | 5 hp |
| Max engine/motor | 9,300 rpm |
| Maximum power speed | 9,000 rpm |
| Cylinders | 1 |
| Number of strokes | 2-stroke engine |
| Exhaust emissions (CO₂ EU V) | 711 g/kWh |
| Power Source | Petrol |
| Cutting equipment | |
| Cutting depth, max | 5 in |
| Blade diameter, max | 14 in |
| Arbor diameter | 1-7/8B |
| Blade thickness, max | 0.2 in |
| Peripheral speed, max | 18,000 fpm |
| Coolant | Wet |
| Dimensions | |
| Product size length | 30.27 in |
| Product size length | 769 mm |
| Product size width | 8.86 in |
| Product size width | 225 mm |
| Product size height | 16.89 in |
| Product size height | 429 mm |
| Weight | 24.7 lbs |
| Weight (complete product w/o side packed articles) | 11.2 kg |
| Packaging length (Calc) | 30.709 in |
| Packaging width (Calc) | 10.236 in |
| Packaging height (Calc) | 18.976 in |
| Article gross weight (Calc) | 35.053 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 115 dB(A) |
| Sound pressure level at operators ear (LpA) | 101 dB(A) |
| Vibration | |
| Vibrations left/front handle | 2.1 m/s² |
| Vibrations right/rear handle | 2 m/s² |
- 581357402 — GASKET KIT K760-II
- 588932501 — GASKET MUFFLER 70cc
- 506377003 — GASKET CRANKCASE
- 544219302 — INSERT inlet manifold
- 503260204 — SEALING RING 15X26X6
- 581285301 — GASKET CYLINDER BASE
- 574362302 — AIR FILTER ASSY ASSY SPARE PART
- 525470602 — AIR FILTER ASSY ASSY GREY, W SYMBOL
- 575354001 — CARBURETTOR BRACKET K770 WITH SHIELD
- 581774801 — NUT M5 10x12
- 503215310 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 10,5 10.9 ZnFe Lock
- 506370601 — FLANGE INLET PIPE LUFTK750
- 525733201 — INLET PIPE AIR K750
- 503215320 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 20 10.9 ZnFe Lock
- 576890101 — HEAT SHIELD K760 Carburettor shield
- 525733101 — INLET PIPE K750
- 586227701 — IMPULSE HOSE
- 574231802 — PLATE Inlet Assy K760
- 503215356 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 56 10.9 ZnFe Lock
- 596875601 — CARBURETTOR Z014/07E
- 506376804 — GASKET CARBURETTOR t=1.5 Reinforced
- 506376701 — GASKET BASE GASKET
- 506377002 — GASKET CRANKCASE
- 597809101 — HANDLE LOOP Tucan Handle
- 597808601 — SPRING
- 598445901 — SUPPORT ASSY Tucan Rear Arm Assy 14"
- 599359701 — SUPPORT ASSY Tucan Arm Assy Rear 12"
- 526834502 — SCREW HANDGUARD M5x14 T27 CH DS LOCK
- 599477701 — BLADE GUARD Extended Guard 12"
- 597808802 — BLADE GUARD SmartGuard Husqvarna Grey
- 597794501 — SCREW BAR BOLT M5x57,6 T27 ZnFe
- 597809501 — WHEEL Tucan & Kvack wheel
- 599359501 — SUPPORT ASSY Tucan Arm Assy Front 12"
- 598445701 — SUPPORT ASSY Tucan Arm Assy Front 14"
- 529705301 — WEAR PLATE SMARTGUARD 12
- 529705201 — WEAR PLATE SMARTGUARD 14
- 525887402 — SCREW CITXPANT PW3.5x10 T10 CH TBO
- 599471402 — WHEEL GUARD Tukan
- 597576602 — WHEEL GUARD Tukan Non machined tower
- 597808901 — COVER OPEN SIDE TUCAN
- 525755112 — SCREW ITXSCFM Internal Torx Socket Head Cap Flanged M 5 X 16 10.9 ZnFe Lock
- 597809301 — SPRING Tucan open side spring
- 598489002 — WEAR PLATE Tukan Ø6,5 Hål
- 544218460 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 25 10.9 ZnFe LOCK
- 599661701 — BUSHING ASSEMBLY SPARE PART
- 597809201 — SPRING Tucan Closed side spring
- 597809001 — COVER Cover Closed Side Tucan
- 548836701 — HOLDER Disk Holder bearing housing
- 584438301 — SUPPORT FLANGE
- 506070904 — FLANGE WASHER D119mm/3.5mm Domex Grinded Domex 13mm Black
- 583874402 — FLANGE D105mm/3mm Domex 13mm Black
- 506379601 — BUSHING KIT D20 SKIVLAGR. D20 SKIVLAGR.
- 506379622 — BUSHING D22.2 SKIVLAGR.
- 578398201 — BUSHING ASSY 20 MM AND 25.4MM
- 581605404 — BUSHING ASSY Blade with O-ring 30.5mm
- 590503801 — SCREW ASSY M10
- 544218430 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 30 10.9 ZnFe
- 584438202 — SLEEVE spring Black
- 584438101 — SPRING wheel guard
- 584437801 — SHIM WHEELGUARD BEARING
- 584437901 — LINING bearing housing
- 584438001 — LINING disc
- 581117704 — DECAL MG bladeguard bushing size 12" Bushing 20mm
- 581117705 — DECAL MG Bladeguard bushing size 12" Bushing turnable 1" and 20mm UL
- 581117706 — DECAL MG bladeguard bushing size 14" Bushing turnable 1" and 20mm UL
- 584992601 — DECAL CAUTION JAPAN D300 MG BLADE GUARD
- 584992602 — DECAL CAUTION JAPAN D350 MG BLADE GUARD
- 582233101 — WASHER 8.3x13.5x0.5 St ZPB
- 582233201 — WASHER 7.6x13.5x0.215 PTFE
- 501057103 — BELT GUARD KIT 14"
- 586743701 — NUT WASHER ASSY
- 503200045 — SCREW EHHFM External Hexagon Head Flanged M 8 X 16 12.9
- 503230116 — WASHER 8.4x20x1.2 St ZPB
- 588470403 — PULLEY ASSY PJ6 SPARE PART
- 590895801 — PULLEY PJ6
- 505445405 — CASSETTE FRICTION RETARDER SPARE PART
- 544441001 — DRAW SPRING
- 544440402 — BRAKE SHOE
- 544908406 — DRIVE BELT MICRO-V 6PJ822 K770
- 588992003 — BEARING HOUSING ASSY
- 584994301 — SCREW wheel guard rotation stop M6x12 T27 10.9 Zn/Fe
- 503875402 — BAR BOLT M8x46.5 12.9 DS
- 588992403 — SHAFT KIT M10
- 583953301 — BALL BEARING 6202-C3-Jr-LLU 15x35x11
- 586801002 — SLIP RING HOLDER Water deflector
- 593310001 — CHOKE SHAFT KIT CARBURETTOR K770
- 506396501 — ROD
- 593332901 — VALVE KIT AIRHEAD SHAFT
- 506397501 — SPRING AIR-HEAD RET.
- 506409902 — GASKET KIT K760-II
- 506410004 — GASKET KIT CARB K760-II
- 544836501 — SPRING TROTTLE RETURN
- 593309902 — THROTTLE SHAFT KIT K770 CARBURETTOR
- 593282507 — CRANKCASE KIT SPARE PART
- 503215341 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 40 10.9 ZnFe Lock
- 593806001 — GUIDE BUSHING
- 738220225 — Ball bearing 15x35x11 C3
- 503226504 — SQUARE NUT M5 12 TBO
- 503215316 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 16 10.9 ZnFe
- 522474801 — PLATE SPRING RETAINER POWER CUTTER
- 598586902 — SPRING RETAINER Assy Black, std
- 588915101 — HEAT DEFLECTOR MUFFLER 70cc
- 503846101 — BUFFER
- 586760901 — RUBBER SHOE CONTACT ABSORBER
- 596423701 — CRANKSHAFT KIT SPARE PART
- 537203301 — CUP KPL
- 577572401 — NEEDLE BEARING Piston pin 12x15x15
- 586099201 — BELT GUARD Rear K 770
- 583842201 — BELT TENSIONER ASSY
- 501981020 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 20 10.9 Lock
- 583851601 — PIVOT PIN
- 503744406 — CLUTCH ASSY Short wings
- 503744301 — CLUTCH SPRING
- 590805901 — DRIVING PULLEY KIT
- 525831801 — BALL BEARING 6001 LLU
- 506316901 — DUST COVER
- 501981001 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 12 10.9 Lock
- 503230070 — WASHER 10x22x1 MS37914
- 579744202 — ANTIVIBRATION ELEMENT ASSY
- 544061201 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 27,5 10.9 ZnFe
- 503715301 — DECOMPRESSION VALVE
- 503552201 — Plug
- 503215340 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 40 12.9 Lock
- 576717602 — SLEEVE CYLINDER
- 581476104 — CYLINDER ASSY D51 SPARE PART
- 506368801 — BRACKET INSUGSPLATTA
- 506372408 — PISTON ASSY D51 SPARE PART
- 546313101 — PISTON RING HK51x1.2
- 522990101 — PISTON RING Piston Ring
- 737431200 — SNAP RING PISTON PIN TYPE B 12x1
- 592778301 — MUFFLER KIT K760-II
- 503215325 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 25 12.9
- 503230402 — WASHER LOCK 5.4x9x1.8 Zn FLAKE (DELTA PROTECT)
- 503215321 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 20 10.9 ZnFe Lock
- 525763502 — DECAL Decompression valve K760 & K1260
- 583965209 — FILTER COVER ASSY SPARE PART K760-II
- 574362103 — FILTER HOLDER ASSY K760 ORANGE SPARE PART
- 575355001 — SEALING STRIP D 3.5mm 505mm K760
- 503215349 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 49 12.9
- 506367003 — CYLINDER COVER GREY PURGE
- 579240301 — DECAL Start instructions
- 574231605 — DECAL Model K770
- 574459401 — COVER Cooling air
- 587933002 — BELLOWS Precleaned air
- 525584301 — AIR NOZZLE Assy K750II
- 586379309 — DECAL WARNING K760/K970-I/K1260 CE (UK & RoW)
- 586379307 — DECAL WARNING K760/K970-I/K1260 Japan
- 593282510 — CRANKCASE KIT SPARE PART ENGINE KIT
- 593281804 — FUEL TANK ASSY SPARE PART NEW PARALLEL PIN
- 546291602 — PIN Parallell Pin 30x3 SS
- 588086201 — THROTTLE CONTROL GREY
- 579379201 — THROTTLE ROD K760-II
- 595835701 — SPRING Throttle trigger
- 588137701 — THROTTLE LOCKOUT new tank Grey
- 598836601 — FUEL FILTER KIT KIT SPARE PART
- 581756203 — FUEL HOSE spiral 330
- 598611001 — TANK VENT ASSY K770
- 501152901 — TANK VENT ASSY
- 544229002 — CHOKE CONTROL MODIFIED FOR PURGE
- 506318604 — STOP SWITCH Plate 1.0mm
- 506378001 — GROMMET CHOKE
- 544393201 — HOSE CLIP
- 581756117 — FUEL HOSE straight 60
- 501371301 — LID tank
- 588198201 — GROUND SUPPORT K760
- 522620001 — TANK CAP ASSY Grey
- 537215001 — SEALING
- 503578901 — Holder tank cap
- 540054901 — PURGE AIR CLEANER | AIR CLEANER Zama
- 505195201 — FUEL HOSE PURGE RETURN HOSE
- 537042414 — FUEL HOSE L=50
- 506394602 — HUB CAP TANK, GREY
- 506381501 — HEAT SHIELD
- 537210312 — ANTIVIBRATION ELEMENT
- 544238201 — BAND Restriction
- 503215420 — SCREW ITXSCT Internal Torx Socket Head Cap MT6x20 T27 10.9 Zn/Fe
- 506371902 — BASEPLATE grey
- 506313001 — LABEL 25:1 JPN
- 506382601 — TOOL COMBINATION 13mm | 19mm | T27
- 586497201 — CABLE Stop switch
- 503235111 — Spark plug NGK BPMR7A
- 590504501 — SPARK PLUG CAP
- 594729601 — IGNITION MODULE ASSY HDS2.8.3CCN114 K770
- 505574120 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 20 10.9 ZnFe
- 506378501 — CABLE Ground
- 503230101 — WASHER 8.4x16x1.5 St
- 503221011 — HEXAGON NUT M8x1 10 TBO
- 587702102 — FLYWHEEL ASSY D120 -WITH WEIGHT
- 725532956 — SCREW IHSCM M5x16 LOCK 12.9 TBO
- 574250901 — WEIGHT FLYWHEEL K960
- 503230042 — WASHER 5.3x10x1 1778-04 MNPP
- 576492601 — SPRING Pawl D=0.7mm
- 501673203 — PAWL
- 506006901 — SCREW M5x14 T27 10.9 Zn/Fe LOCK
- 577242801 — CABLE HOLDER K760II
- 584886806 — STARTER ASSY (ONLY SPARE PART HANDLING)
- 510269222 — SCREW ITXSCT PW4.8x22 T27 CH TBO
- 740431300 — O-RING BS 4518 15.3x2.4 NITRILE RUBBER
- 510000801 — SEALING
- 506263101 — SPACING SLEEVE START
- 506253001 — COMPRESSION SPRING
- 588155801 — STARTER PULLEY
- 596293101 — RECOIL SPRING ASSY
- 506335615 — CORD STARTER
- 506335650 — STARTER ROPE LÅNGLIVS
- 584257903 — STARTER HANDLE ASSY WITH COVER GREY
- 525446001 — STARTER COVER
- 525571102 — DECAL STARTER
- 501859401 — COOLING AIR CONDUCTOR
- 577981602 — HOSE GUARD Inlet hose K760mkII
- 575267703 — SPRING RETAINER Front handle
- 585620501 — GROUND SUPPORT with nut
- 522832401 — GROUND SUPPORT Flywheel side
- 581110609 — HANDLE ASSY FRONT SPARE PART
- 506387102 — STOP HANDLE GREY
- 581476220 — HOSE KIT VALVE ASSY 25MM HANDLE K760-II
- 581478302 — NIPPLE ASSY WITH O-RING
- 589780701 — STRAINER wet cutting kit
- 505103501 — O-RING 10.5X2.7 EPDM
- 589638601 — HOSE CLAMP Oetiker stepless 9.4-11.9
- 578198101 — HOSE PVC Armerad 6 x 10 (grey) 312mm
- 578243306 — VALVE ASSY Spare part Spare part
- 581721508 — HOSE KIT BLADE GUARD SMARTGUARD
- 506498704 — HOSE CLAMP Norma cobra 8.0
- 578198305 — HOSE PVC 4 x 8 (Grey) SPARE PART L=800
- 504634602 — SCREW ITXSCM Internal Torx Socket Head Cap M6x11.5 T27 SS
- 578190701 — HOUSING WHEEL GUARD NOZZLE LEFT
- 576798403 — NIPPLE K3000 Mg di 1mm
- 578190801 — HOUSING WHEEL GUARD NOZZLE RIGHT
- 583833001 — HOSE CLAMP
- 503266003 — COUPLER TYPE GARDENA 3/4" GHT W STOP ORIGINAL
- 503266004 — COUPLER HOSE CONNECTOR GARDENA 1/2" HOSE WITH STOP
- 581357002 — LEVER ASSY W O-RINGS SPARE PART
- 734114741 — WASHER ISO 7093 5.3x15x1.2 St ZPB
- 529355702 — BRACKET HOSE FIXTURE Elongated
- 546903001 — SERVICE KIT K770/K760 all variants
598937802
SmartGuard™ blade cover
589334301 Discontinued
Wheel kit
598742401
WT2GO
536504601
Helmet PE 10 H SmartGuard™
536089802
WT 10 MP
599582304
WT 15i
