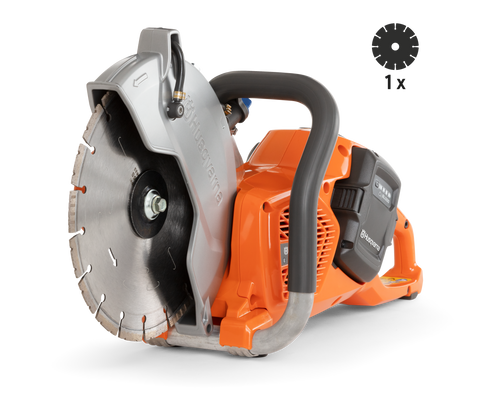

Husqvarna K 540i | POWER CUTTER K 540i NA | 970664002

$1,011.00

Part Number: 970 66 40-02 (970664002)

The Husqvarna K 540i (Article 970664002) is a battery-powered cutter engineered for hardscaping, masonry, and landscaping applications. This unit features the X-Halt™ brake function to enhance operational safety and is designed with an optimal power-to-weight ratio for improved balance during use. The machine provides a 4 in (100 mm) cutting depth and includes an adjustable blade guard, supporting both wet and dry cutting methods. As an electric tool, it produces zero CO₂ emissions during operation and is designed to minimize vibrations for increased user comfort.

Product Features

Specially developed blades

Specially designed battery blades with 100 mm cutting depth.

Excellent for both wet and dry cutting

Wet cutting kit with vac attachment and Gardena coupling as standard.

One battery system

You can easily move the battery from one product to another without interrupting your work.

Safe operation

X-Halt™ blade brake function, capable of immediate motor stop.

Zero CO₂ emissions during use

Enjoy the freedom of working with an electric machine. Explore the potential of new applications by running the machine indoors or in urban areas where emissions or noise levels might be regulated.

Strong resource-smart plastic

80% of the plastic in this product is made out of biomass mass-balanced* plastic. * The mass balance approach makes it possible to track the amount and sustainability characteristics of circular and/or bio-based material in the value chain and attribute it based on verifiable bookkeeping.

Easy to change blade guard position

The light magnesium blade guard facilitates cutting, thanks to its stepless adjustment.

Engine
Power Source	Battery
Motor
Battery eco system	BLi-X
Cutting equipment
Cutting depth, max	3.94 in
Blade diameter, max	10.5 in
Arbor diameter	1"
Blade thickness, max	0.118 in
Peripheral speed, max	15,200 fpm
Dimensions
Product size length	21.97 in
Product size length	558 mm
Product size width	7.87 in
Product size width	200 mm
Product size height	13 in
Product size height	330 mm
Weight	9.19 lbs
Weight (complete product w/o side packed articles)	4.17 kg
Packaging length (Calc)	23.583 in
Packaging width (Calc)	8.661 in
Packaging height (Calc)	13.386 in
Article gross weight (Calc)	15.219 lbs
Sound and noise
Sound pressure level at operators ear (LpA)	101.5 dB(A)
Vibration
Vibrations left/front handle	2.2 m/s²
Vibrations right/rear handle	1.9 m/s²

536254101 — SLIP RING HOLDER K540i
579733301 — SHIM Wheel guard bearing T=0.5mm
593216601 — LINING c-side Power Cutter
537565801 — BLADE GUARD ASSEMBLY SPARE PART
504909410 — SCREW ITXSCT Internal Torx Socket Head Cap MT5x10 T27 10.9 Zn/Fe
581620301 — STOP WHEEL GUARD
504634602 — SCREW ITXSCM Internal Torx Socket Head Cap M6x11.5 T27 SS
593216801 — WEAR PROTECTION WHEEL GUARD K 1 PACE
576798403 — NIPPLE K3000 Mg di 1mm
593216701 — LINING FLANGE SIDE POWER CUTTER
594024201 — SLIDE RING Blade Guard Power Cutter
536254201 — BUSHING BLADE SHAFT
536254301 — FLANGE PLATE
503215316 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 16 10.9 ZnFe
536476201 — FLANGE D67/3mm Domex
546261803 — BUSHING ASSY 25,4mm
581855201 — SCREW External Hexagon Head Flanged M 8 X 37 12.9 ZPB
503215326 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 25 10.9 ZnFe
536071601 — BELT GUARD K540
538699501 — DRIVE BELT KIT SPARE PART
544218420 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 20 10.9 ZnFe
504038302 — SPACING SLEEVE DRIVING PULLEY POWER CUTTER
536108001 — PULLEY Drive PJ5 D22
503200045 — SCREW EHHFM External Hexagon Head Flanged M 8 X 16 12.9
536107901 — PULLEY FRONT PJ5 D54
537565901 — CUTTER ARM ASSEMBLY SPARE PART
536913301 — BEARING SINGLE ROW - 02 6201-2RSH/C3
536262001 — SPACING SLEEVE BLADE SHAFT
536108101 — SHAFT BLADE K540i
584994301 — SCREW wheel guard rotation stop M6x12 T27 10.9 Zn/Fe
538818301 — TOOL Belt assembly K540i
580292901 — SCREW ITXSCT PW4.2x18 10.9 Zn/Fe
537565701 — HANDLE HALF LEFT ASSEMBLY SPARE PART
577996601 — PUSH BUTTON
585480001 — SPRING PUSH OUT
594035702 — AIR INTAKE
595834001 — THROTTLE TRIGGER Magnet Assy
506495701 — THROTTLE LOCKOUT
599373501 — SPRING THROTTLE K 1 PACE
590888601 — WEAR PROTECTION Ground support front
590488001 — DAMPER SUPPORT
590488101 — BUSHING SLEEVE
536071401 — HANDLE HALF RIGHT K540
595871301 — HANDLE INSERT Husqvarna
590888701 — GROUND SUPPORT Rear
595307201 — COVER Air Outlet
536381701 — FRONT HANDLE K540i
506498704 — HOSE CLAMP Norma cobra 8.0
578198308 — HOSE PVC 4 x 8 (Grey) L=180
578190701 — HOUSING WHEEL GUARD NOZZLE LEFT
578190801 — HOUSING WHEEL GUARD NOZZLE RIGHT
578198312 — HOSE PVC 4 x 8 (Grey) L=140mm
529998202 — HOSE ASSEMBLY SPARE PART
529963901 — NIPPLE ASSY SPARE PART
589780701 — STRAINER wet cutting kit
505103501 — O-RING 10.5X2.7 EPDM
578198114 — HOSE PVC Armerad 6 x 10 (grey) L=255mm
589638601 — HOSE CLAMP Oetiker stepless 9.4-11.9
578243306 — VALVE ASSY Spare part Spare part
581357002 — LEVER ASSY W O-RINGS SPARE PART
503215341 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 40 10.9 ZnFe Lock
503226504 — SQUARE NUT M5 12 TBO
503266004 — COUPLER HOSE CONNECTOR GARDENA 1/2" HOSE WITH STOP
503266003 — COUPLER TYPE GARDENA 3/4" GHT W STOP ORIGINAL
536503401 — MOTOR ASSY Power Cutter K540i
503215330 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 30 12.9
599274801 — BRACKET Control unit
525755107 — SCREW ITXSCFM M5X8 T27 10.9 Zn/Fe
535323401 — CONTROL PANEL Small 2Btn BT Power Cutter - Deka
535323501 — CONTROL PANEL Small 2Btn noBT Power Cutter - Deka
537565601 — CONTROL UNIT KIT SPARE PART
536456301 — WIRING ASSY SIGNAL K540i
536456401 — WIRING ASSY POWER Power cutter
537494101 — FAN Spare part K540i
536641602 — DECAL Deka No Bluetooth
536641601 — DECAL Deka Bluetooth
536641704 — DECAL Warning, Deka RoW incl JPN
536641702 — DECAL Warning, Deka US Sparepart
