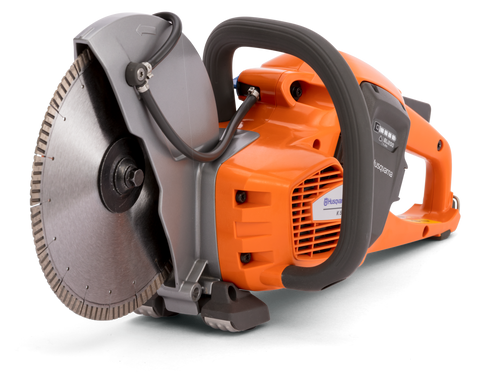

Husqvarna K 535i | POWER CUTTER K 535i 36 V | 9" NA | 967795902
Part Number: 967 79 59-02 (967795902)
The Husqvarna K 535i is a 36 V battery-powered cutter designed for portability and ease of use. Featuring a 9-inch blade capacity, this tool is engineered for lighter hardscaping and landscaping applications, including cutting concrete garden plates, granite, and roof or floor tiles. The unit supports both wet and dry cutting methods and is compatible with Husqvarna 40-B220X and 40-B330X battery systems.
Specifications:
- Article Number: 967795902 / 967 79 59-02
- Voltage: 36 V
- Blade Diameter: 9 inches
Product Features

One battery system
You can easily move the battery from one product to another without interrupting your work.

Lightweight maneuverability
The slim design and low weight makes it easy to lift, control and manoeuvre during operation, which combined with exceptionally low vibrations makes this an ideal machine for lighter concrete jobs.

Smart battery placement
The side-feeded battery placement maximises cooling and minimise slurry and dust containment.

Zero CO₂ emissions during use
Enjoy the freedom of working with an electric machine. Explore the potential of new applications by running the machine indoors or in urban areas where emissions or noise levels might be regulated.

Intuitive keypad
For perfect control, the intuitive keypad is designed for quick commands and features a SavETM function for maximum runtime.

Efficient brushless motor
Our in-house developed, advanced brushless motor is 25 % more efficient than a standard brush motor. This means that the motor provides a high and consistent torque.

Perfect balance
The centered placement of the blade provides increased stability and control.

Ergonomic handles
The handles are specially developed to be comfortable and increases control for extra safety while cutting.

Rope eyelet
A foldable rope eyelet integrated in ground support for maximised convenience.

Electric blade brake
For increased safety and ease of use, the blade will stop its rotation – from full throttle to zero in 3.1 seconds.
| Engine | |
|---|---|
| Power Source | Battery |
| Motor | |
| Battery eco system | BLi-X |
| Cutting equipment | |
| Cutting depth, max | 3 in |
| Blade diameter, max | 9 in |
| Arbor diameter | 7/8" |
| Blade thickness, max | 0.12 in |
| Peripheral speed, max | 13,800 fpm |
| Coolant | Wet /dry |
| Dimensions | |
| Product size length | 22 in |
| Product size length | 560 mm |
| Product size width | 8.66 in |
| Product size width | 220 mm |
| Product size height | 12.2 in |
| Product size height | 310 mm |
| Weight | 7.7 lbs |
| Weight (complete product w/o side packed articles) | 3.5 kg |
| Packaging length (Calc) | 22.047 in |
| Packaging width (Calc) | 8.661 in |
| Packaging height (Calc) | 12.205 in |
| Article gross weight (Calc) | 12.346 lbs |
| Sound and noise | |
| Sound pressure level at operators ear (LpA) | 100.5 dB(A) |
| Vibration | |
| Vibrations left/front handle | 2.1 m/s² |
| Vibrations right/rear handle | 2.5 m/s² |
- 577261901 — HANDLE INSERT Husqvarna-Grey
- 590888202 — HANDLE HALF Right
- 506495701 — THROTTLE LOCKOUT
- 590910901 — LOOP
- 590888701 — GROUND SUPPORT Rear
- 544099901 — SPRING throttle trigger
- 577312701 — THROTTLE CONTROL Husqvarna-Grey
- 577855101 — THROTTLE ROD ASSY Battery chainsaw
- 503215326 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 25 10.9 ZnFe
- 577063501 — FRONT HANDLE Husqvarna-Grey
- 525798103 — SCREW ITXSCFT PL6x25 T27 10.9 Zn/Fe
- 580292901 — SCREW ITXSCT PW4.2x18 10.9 Zn/Fe
- 590888301 — HANDLE HALF Left
- 593199301 — DECAL Right
- 593199201 — DECAL Left US
- 593199203 — DECAL Left RoW
- 596997001 — DECAL K 535i
- 596327101 — PIN Carry loop
- 590888401 — BELT GUARD
- 503200045 — SCREW EHHFM External Hexagon Head Flanged M 8 X 16 12.9
- 597300401 — DRIVE BELT KIT Spare part - K 535i
- 593161001 — PULLEY Drive PJ4 D36
- 596591401 — LOCKING BUTTON ASSY K535i XP - Spare part
- 596591501 — LOCKING BUTTON KIT K535i XP - Spare part
- 590503801 — SCREW ASSY M10
- 597415901 — VALVE ASSY SPARE PART
- 591146302 — VALVE ASSY INCL HOSES K 535i
- 586443101 — SCREW ITXSCFT WASHER PW5.5X16/13 T27 8.8 TBO
- 593161101 — PULLEY Front PJ4 D61.5
- 583953301 — BALL BEARING 6202-C3-Jr-LLU 15x35x11
- 590884601 — SHAFT Blade M10
- 596591701 — CUTTER ARM ASSY K535i XP - Spare part
- 738220119 — Ball bearing (12 × 32 × 10)
- 576798403 — NIPPLE K3000 Mg di 1mm
- 590888501 — GROUND SUPPORT Front
- 503215325 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 25 12.9
- 590888601 — WEAR PROTECTION Ground support front
- 590488001 — DAMPER SUPPORT
- 590488101 — BUSHING SLEEVE
- 590884701 — SUPPORT FLANGE Blade shaft
- 591107701 — BUSHING Assy 22.2mm
- 590890301 — FLANGE D60/3mm Domex 13mm Black
- 582487501 — HOSE CLAMP Oetiker stepless 7.8-9.5
- 578190701 — HOUSING WHEEL GUARD NOZZLE LEFT
- 578190801 — HOUSING WHEEL GUARD NOZZLE RIGHT
- 504634602 — SCREW ITXSCM Internal Torx Socket Head Cap M6x11.5 T27 SS
- 578198307 — HOSE PVC 4 x 8 (Grey) L=160mm
- 596552602 — SERVICE TOOLS BELT ASSEMBLY K535i and K550
- 578776103 — SCREW ITXPANT WN 1452 3.5x12 TBO
- 577315802 — MOTOR ASSY BLDC D70
- 591115802 — CONTROL UNIT BLDC G2 High Spec with brake
- 526818101 — SCREW ITXSCM M4x15 T27 12.9 TBO
- 595943901 — SHAFT MOTOR K 535i
- 581300901 — FAN MOTOR BLDC
- 592634201 — WIRING ASSY Signal Battery Cutter 9 inch
- 582050701 — TRIGGER SWITCH IPX4
- 506382601 — TOOL COMBINATION 13mm | 19mm | T27
- 967964101 — BATTERY BLi200 36V, professional, RoW
- 967964102 — BATTERY BLi200 36V, professional, US/CA
- 967964302 — BATTERY BLi300 36V, 8.9Ah, Li-Ion, US/CA
- 967964301 — BATTERY BLi300 36V, 8.9Ah, Li-Ion, RoW
- 967964901 — BATTERY CHARGER QC330 CON, EU
- 967964903 — BATTERY CHARGER QC330 CON, US
- 967964902 — BATTERY CHARGER QC330 CON, UK
- 967964904 — BATTERY CHARGER QC330 CON, JP
- 967964905 — BATTERY CHARGER QC330 CON, AU/NZ
- 967964907 — BATTERY CHARGER QC330 CON, BR
- 967964906 — BATTERY CHARGER QC330 CON, SZ
- 967965004 — BATTERY CHARGER QC500 CON, JP
- 967965003 — BATTERY CHARGER QC500 CON, US
- 967965001 — BATTERY CHARGER QC500 CON, EU
- 967965002 — BATTERY CHARGER QC500 CON, UK
- 967965005 — BATTERY CHARGER QC500 CON, AU/NZ
- 967965006 — BATTERY CHARGER QC500 CON, SZ
- 574853801 — VARI-CUT™ FR3 230 22.2
- 596520301 — TACTI-CUT™ S35S BAT 230 10 22.2
- 596826601 — ELITE-CUT™ S35S BAT 230 12 22.23
- 596826701 — VARI-DISC™ STEEL 230 1.9 22.2
- 581295001 — MAINS CABLE QC 330 (AUS/NZ)
- 582639701 — WIRING ASSY BATTERY CHARGER CH
- 579130401 — Cable
- 579130601 — CABLE MAINS CABLE (UK)
- 578081901 — MAINS CABLE
- 581294901 — MAINS CABLE QC 330 (J)
- 510361603 — SCREW THUMB SCREW DIN 464 M6X14 St KNU-SL TBO
- 594077701 — SPRING Vac attachment
- 597322201 — RIVET Bufab artikelnummer 30SS4820 ø4.8mm L:21.6mm Grepp:14,4-15,9
- 721680151 — SPRING COTTER 2 St ZPB
- 595944301 — CLEVIS PIN ø8 L70 BUFAB HCB SMS 2360 12:14
- 594077501 — ANVIL Vac attachment
- 594077401 — HOUSING Vac attachment
- 594077601 — PLATE Sliding plate Vac attachment
- 594077801 — VAC KIT Attachment for K 535i
