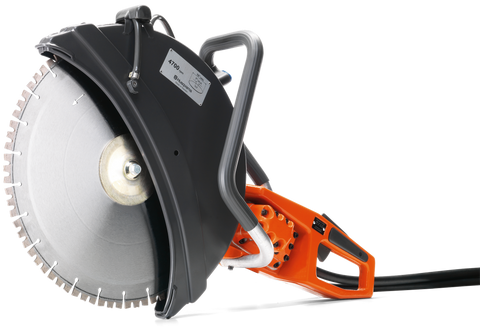

Husqvarna K 2500 | POWER CUTTER K 2500 7 hp | 16" | 1" | 968365401
Part Number: 968 36 54-01 (968365401)
The Husqvarna K 2500 is a hydraulic power cutter designed for precision and efficiency in professional cutting applications. Engineered to accommodate a 16-inch blade with a 1-inch arbor, this unit is frequently utilized for pre-cutting tasks in conjunction with the K 3600. Its design prioritizes operator comfort and maneuverability, making it suitable for extended use in demanding environments. By utilizing hydraulic power, the K 2500 eliminates exhaust emissions and reduces noise output, rendering it an effective solution for indoor construction and renovation projects.
- Power output: 7 hp
- Blade diameter: 16"
- Arbor size: 1"
- Article number: 968365401 / 968 36 54-01
Product Features
Light with high power
Hydraulics is an excellent way to transfer high power without the cutter becoming heavy.
No fumes and low noise levels
Running a hydraulic cutter means you avoid fumes and high noise levels, so they are ideal for both indoor and outdoor jobs.
| Engine | |
|---|---|
| Engine Power (As rated by the engine manufacturer) | 7 hp |
| Power Source | Hydraulic |
| Cutting equipment | |
| Cutting depth, max | 6 in |
| Blade diameter, max | 16 in |
| Arbor diameter | 1" |
| Blade thickness, max | 0.2 in |
| Peripheral speed, max | 19,600 fpm |
| Coolant | Wet |
| Dimensions | |
| Product size length | 28.62 in |
| Product size length | 727 mm |
| Product size width | 10.24 in |
| Product size width | 260 mm |
| Product size height | 18.19 in |
| Product size height | 462 mm |
| Weight | 18.3 lbs |
| Weight (complete product w/o side packed articles) | 8.3 kg |
| Packaging length (Calc) | 29.331 in |
| Packaging width (Calc) | 11.22 in |
| Packaging height (Calc) | 17.323 in |
| Article gross weight (Calc) | 26.455 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 107 dB(A) |
| Sound pressure level at operators ear (LpA) | 85 dB(A) |
| Vibration | |
| Vibrations left/front handle | 7.5 m/s² |
| Vibrations right/rear handle | 5.2 m/s² |
- 506030603 — BELT TENSIONER ASSY 120MM T27 TORX SCREW
- 503207220 — SCREW CITXSCM Combi Internal Torx Socket Head Cap M 6 X 120 10.9 ZnFe
- 506219501 — COMPRESSION SPRING
- 503226601 — SQUARE NUT M6 5 ZPB
- 503220001 — HEXAGON NUT FLANGE M8 St Zn/Fe
- 506098702 — BELT GUARD ORANGE K2500
- 503200045 — SCREW EHHFM External Hexagon Head Flanged M 8 X 16 12.9
- 503230116 — WASHER 8.4x20x1.2 St ZPB
- 544976303 — DRIVE BELT PK 3PK 790
- 578110501 — PULLEY PK3 K1260 D104,5 K2500
- 503230104 — WASHER 15x21x1.8 St
- 506413404 — BEARING HOUSING ASSY SPARE K2500/K30/K40 ORANGE W BOLT
- 505574116 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 16 10.9 ZnFe
- 506143201 — NUT CAP Torison Stop
- 506033202 — SCREW M8x37 12.X TBO
- 583953301 — BALL BEARING 6202-C3-Jr-LLU 15x35x11
- 506201801 — SPACING SLEEVE "94"
- 506288401 — SCREEN PATTERN FLANG FAST
- 503215310 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 10,5 10.9 ZnFe Lock
- 506298371 — SHAFT ASSY K2500/K30/K40
- 506139511 — WASHER KUPAD 8.2X30
- 581855201 — SCREW External Hexagon Head Flanged M 8 X 37 12.9 ZPB
- 506309705 — LABEL JAPAN HVA BELT TENSIONER
- 506340546 — BLADE GUARD ASSY 16 GREY
- 503215320 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 20 10.9 ZnFe Lock
- 506344602 — HANDLE SPRÄNGSK GRÅ
- 506266302 — LINING SPRÄNGSKYDD
- 506266401 — SCREEN PATTERN FLANG WHEEL GUARD
- 506266501 — FLANGE LAGRINGSHUS
- 506324801 — SUPPORT FLANGE ASSY LABYRINTH SEAL
- 506028701 — FLANGE WASHER D105
- 506070903 — FLANGE WASHER D119mm/3.5mm Domex Grinded Dinex 12mm Bright
- 506379601 — BUSHING KIT D20 SKIVLAGR. D20 SKIVLAGR.
- 506379622 — BUSHING D22.2 SKIVLAGR.
- 578398201 — BUSHING ASSY 20 MM AND 25.4MM
- 581605404 — BUSHING ASSY Blade with O-ring 30.5mm
- 506284122 — LABEL HUSQV.400-20
- 506284124 — LABEL HUSQV.400-25.4
- 584992603 — DECAL CAUTION JAPAN D400 MG BLADE GUARD
- 544872702 — LABEL K2500 BELT GUARD
- 503215341 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 40 10.9 ZnFe Lock
- 506202802 — BELT GUARD REAR ORANGE K2500
- 506201602 — HANDLE HALF K2500 ORANGE
- 503215349 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 49 12.9
- 506203302 — THROTTLE ROD K2500
- 503212810 — SCREW CCRPANT PW3.5x9.5 CH TBO
- 506203403 — THROTTLE TRIGGER GREY K3600MK-II K2500
- 720131000 — PARALLEL PIN ISO 2338 TYPE A 5x20 UH St
- 506014506 — THROTTLE LOCKOUT
- 506203602 — CHASSIS K2500 ORANGE
- 501628909 — HANDLE INSERT GREY K2500 HVA
- 724321905 — SCREW MFX 3X5-5.8-H
- 503215316 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 16 10.9 ZnFe
- 503226504 — SQUARE NUT M5 12 TBO
- 506202903 — FRONT HANDLE GREY K2500 HVA
- 585427903 — DECAL
- 544218430 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 30 10.9 ZnFe
- 504038302 — SPACING SLEEVE DRIVING PULLEY POWER CUTTER
- 544980901 — PULLEY 3PK K2500/K30/K40
- 506202702 — SUPPORT FLANGE New variant
- 544886612 — HYDRAULIC MOTOR SPARE PART K2500
- 735313110 — CIRCLIP SGH 32x1.5 St PP
- 506346715 — KIT DRIVAXEL14 KPL K2500
- 735880600 — WOODRUFF KEY DIN 6888 3x3.7
- 506301114 — SEALING HYDMOTOR
- 506110301 — O-RING NITRIL 28X2
- 503263028 — O-RING VITON 14X3
- 738220125 — BALL BEARING SINGLE ROW - 02 6201-C3
- 735311400 — CIRCLIP SGA 12x1 St PP
- 588222101 — Hexagon nut flange
- 506203101 — LEVER
- 506203801 — SPRING HÄVARM
- 506218301 — SPRING PLUNGE
- 506218201 — PLUNGE
- 593806001 — GUIDE BUSHING
- 506110501 — BEARING D 12/14X12
- 740430200 — O-RING BS 4518 4.3x2.4 NITRILE RUBBER
- 506216001 — VALVE SLEEVE
- 506320002 — SHAFT L56 KPL
- 503240701 — PARALLEL PIN 3X13
- 506218501 — VALVE SEAT
- 740420300 — O-RING BS 4518 5.1x1.6 NITRILE RUBBER
- 740431100 — O-RING BS 4518 13.3X2.4 NITRILE RUBBER
- 506218001 — VALVE CONE
- 506229609 — GEAR WHEEL 9
- 506218101 — SPRING VENT.KÄGLA
- 735310820 — E-CLIP SHAFTS 4x0.7 St PP
- 506215901 — VALVE SPINDLE
- 503215345 — SCREW ITXSCM M5x45/25 T27 10.9 Zn/Fe
- 503215321 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 20 10.9 ZnFe Lock
- 740382701 — SEALING WASHER 13.7x20.6 St ZPB /RUBBER
- 506109502 — HYDRAULIC HOSE KPL
- 740383401 — SEALING WASHER 17.3x23.9 St ZPB /RUBBER
- 506109621 — QUICK COUPLING HYDRAULIC FEMALE
- 506109821 — QUICK COUPLING HYDRAULIC MALE
- 505095501 — HOSE KIT VALVE ASSY FOR 25MM HANDLE
- 506295702 — NIPPLE RAK M.O-RING OCH SIL RESERVDEL
- 589780701 — STRAINER wet cutting kit
- 505103501 — O-RING 10.5X2.7 EPDM
- 576129701 — HOSE CLAMP Oetiker stepless 15.3-706R
- 581893601 — HOSE PVC 8x13 GREY reinforced, softener DOTP L=230mm
- 506386012 — VALVE ASSY 25MM HANDLE SPARE K750 K960 (GREY)
- 503215420 — SCREW ITXSCT Internal Torx Socket Head Cap MT6x20 T27 10.9 Zn/Fe
- 505524201 — VALVE SPINDLE ASSY K3000 CnB
- 544926801 — INTERLAYER
- 505095416 — HOSE KIT WHEEL GUARD SPARE PART
- 506498701 — HOSE CLAMP Norma cobra 10.5
- 581893506 — HOSE PVC 6x10mm GREY 620mm
- 504634601 — SCREW ITXSCM M6x10 T27 4.8 Cr
- 504634401 — HOUSING Right Wet cut kit
- 504634201 — NIPPLE M8 di 1mm
- 504634503 — HOUSING Wheel guard nozzle Left
- 503266003 — COUPLER TYPE GARDENA 3/4" GHT W STOP ORIGINAL
- 503266004 — COUPLER HOSE CONNECTOR GARDENA 1/2" HOSE WITH STOP
- 506382601 — TOOL COMBINATION 13mm | 19mm | T27
