Husqvarna K 1 PACE Rail | POWER CUTTER K 1 PACE Rail 14" / 350 mm | RA11 | BLE | NA | 970621507

$3,818.00

Part Number: 970 62 15-07 (970621507)

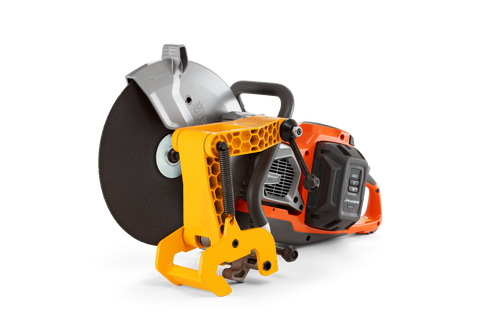

The Husqvarna K 1 PACE Rail (Article 970621507) is a 14-inch (350 mm) battery-powered power cutter engineered specifically for railway, tram, and metro track maintenance. This unit combines high torque output with the operational flexibility of the PACE battery system, ensuring consistent performance for demanding rail cutting applications.

Key technical specifications and design features include:

Blade Diameter: 14 inches / 350 mm
Safety: Integrated X-Halt™ brake function for rapid blade rotation stoppage
Mounting: Double attachment mountings allow for cutting from any direction
Precision: Specialized rail attachment for fast, straight, and right-angle cuts
Efficiency: Optimized power-to-weight ratio for improved balance and handling

Product Features

High performance

Powerful and efficient, Husqvarna-designed, brushless motor that delivers high and consistent torque.

More freedom

Zero direct emissions during use makes working in tunnels, subways, indoors and other spaces where emissions are regulated or controlled easier and more comfortable.

Perfect right-angle cuts

Cutter arm designed for a fast and firm fit to the rail. A two clamp switch provides precise right-angle cuts in all positions and a folding guide to mark the exact cutting position.

X-Boost – decreased cutting time

K 1 PACE Rail is now updated with X-Boost, a feature that automatically optimises your power cutter for the B750X battery. This gives you both more power and a faster blade speed, reducing the time it takes to cut through a 60 kg/m rail by as much as 20% compared with the previous version.

Zero CO₂ emissions during use

Enjoy the freedom of working with an electric machine. Explore the potential of new applications by running the machine indoors or in urban areas where emissions or noise levels might be regulated.

Work faster

Compact design, great ergonomics, and a very low weight help you to work faster, move more easily, and make operation more comfortable.

Part of PACE battery eco system

This machine is part of the PACE battery eco system which makes it compatible with many other Husqvarna machines. This means flexibility and the potential for cost savings.

Safe operation

X-Halt™ blade brake function capable of stopping the rotation of the blade in fractions of a second.

Engine
Power Source	Battery
Motor
Battery eco system	PACE
Cutting equipment
Cutting depth, max	5.23 in
Blade diameter, max	14 in
Arbor diameter	1"
Blade thickness, max	0.16 in
Peripheral speed, max	13,200 fpm
Coolant	Wet /dry
Rail type	Vignole rails
Clamp switch	Yes
Dimensions
Head width, max	77 mm
Product size length	25.83 in
Product size length	656 mm
Product size width	9.17 in
Product size width	233 mm
Product size height	16.65 in
Product size height	423 mm
Weight	18.96 lbs
Weight (complete product w/o side packed articles)	8.6 kg
Packaging length (Calc)	35.827 in
Packaging width (Calc)	13.78 in
Packaging height (Calc)	19.685 in
Article gross weight (Calc)	69.666 lbs
Sound and noise
Sound power level, guaranteed (LWA)	112 dB(A)
Sound pressure level at operators ear (LpA)	101 dB(A)
Vibration
Vibrations left/front handle	1.6 m/s²
Vibrations right/rear handle	0.8 m/s²

503215420 — SCREW ITXSCT Internal Torx Socket Head Cap MT6x20 T27 10.9 Zn/Fe
584994301 — SCREW wheel guard rotation stop M6x12 T27 10.9 Zn/Fe
738220219 — BALL BEARING SINGLE ROW - 02 6202-2RS1
546322701 — CUTTER ARM ASSEMBLY SPARE PART
590525801 — BALL BEARING 6001-2Z / C3 Ø28xØ12x8 mm
593773001 — SHAFT Drive shaft GEAR BOX
597736702 — SHAFT BLADE L 72
522474801 — PLATE SPRING RETAINER POWER CUTTER
503215320 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 20 10.9 ZnFe Lock
598586903 — SPRING RETAINER Assy DryCut, VAC
597736601 — PULLEY MOTOR Ø48mm
597736602 — PULLEY MOTOR Ø55mm
504038302 — SPACING SLEEVE DRIVING PULLEY POWER CUTTER
544218420 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 20 10.9 ZnFe
597736901 — GASKET GEAR BOX K 1 PACE
593806001 — GUIDE BUSHING
531333102 — LID ASSEMBLY SPARE PART
503215316 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 16 10.9 ZnFe
590895801 — PULLEY PJ6
503230116 — WASHER 8.4x20x1.2 St ZPB
503200045 — SCREW EHHFM External Hexagon Head Flanged M 8 X 16 12.9
529959601 — DRIVE BELT KIT 14" SPARE PART
529959602 — DRIVE BELT KIT 12" | 14" Rail
599474601 — BELT GUARD CUTTER ARM K 1 PACE
503215326 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 25 10.9 ZnFe
506227501 — SLEEVE RAIL ATTACHMENT LAGRINGSHUS
546193601 — SPRING WAVE Ø28xØ22x14
735312810 — CIRCLIP SGH 28x1.2 St PP
537508801 — GUIDE BUSHING CUTTER ARM 8x6,5x12
536857501 — SUPPORT K 1 PACE RAIL MACHINED
544218440 — SCREW ITXSCM Internal Torx Socket Head Cap M 6 X 40 12.9
503215312 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 12 10.9 ZnFe
735313310 — CIRCLIP SGH 35x1.5 St PP
596552602 — SERVICE TOOLS BELT ASSEMBLY K535i and K550
529863702 — HANDLE HALF LEFT ASSEMBLY SPARE PART
577996601 — PUSH BUTTON
585480001 — SPRING PUSH OUT
580292901 — SCREW ITXSCT PW4.2x18 10.9 Zn/Fe
599528201 — PLATE BATTERY SLIDER K 1 PACE
597734101 — BUTTON BATTERY RELEASE K 1 PACE
597734001 — SPRING Battery release Ø1,2mm
597623901 — COVER AIR OUTLET K 1 PACE
529863602 — HANDLE HALF RIGHT ASSEMBLY SPARE PART
599528401 — PLATE BATTERY REAR K 1 PACE
546052201 — SPRING RETAINER ASSY Ø3,6mm
599373501 — SPRING THROTTLE K 1 PACE
595834001 — THROTTLE TRIGGER Magnet Assy
506495701 — THROTTLE LOCKOUT
588198201 — GROUND SUPPORT K760
578198114 — HOSE PVC Armerad 6 x 10 (grey) L=255mm
537630501 — COVER WATER HOSE K 1 PACE RAIL
536234801 — HANDLE FRONT K 1 PACE RAIL
546302101 — SPRING RETAINER ASSY Ø3,6mm
597623401 — GROUND SUPPORT FRONT K 1 PACE
544811601 — BASE GROUND SUPPORT POWER CUTTER
525824401 — SCREW ITXSCM WASHER M5x12 T27 12.9 TBO
589583301 — SCREW HEXABOULAR SOCKET HEAD PT6X46 T27 ZnFe
590503801 — SCREW ASSY M10
536775901 — FLANGE Flange washer Ø90
546261801 — BUSHING ASSY 20mm
546261803 — BUSHING ASSY 25,4mm
597759001 — FLANGE PLATE Ø25,4mm
536777601 — SUPPORT FLANGE BLADE SHAFT K 1 PACE
594024201 — SLIDE RING Blade Guard Power Cutter
593216701 — LINING FLANGE SIDE POWER CUTTER
529863902 — BLADE GUARD ASSEMBLY 14" / 350mm SPARE PART
504909410 — SCREW ITXSCT Internal Torx Socket Head Cap MT5x10 T27 10.9 Zn/Fe
593216801 — WEAR PROTECTION WHEEL GUARD K 1 PACE
593216601 — LINING c-side Power Cutter
579733301 — SHIM Wheel guard bearing T=0.5mm
593217001 — SLIP RING HOLDER Blade Guard Power Cutter
597623501 — MOTOR COVER AIR INLET K 1 PACE
529708601 — DAMPER Motor Cover K 1 PACE
595871402 — MOTOR ASSY 40mm MOTOR SHAFT DIRECTION - CCW
503215330 — SCREW ITXSCM Internal Torx Socket Head Cap M 5 X 30 12.9
597794001 — GROMMET AIRFLOW K 1 PACE
546261201 — FAN Spare part K 1
597793601 — COVER CU K 1 PACE
537576601 — CONTROL UNIT PACE 3K PMSM CU G4 BOOTLOADER
525755107 — SCREW ITXSCFM M5X8 T27 10.9 Zn/Fe
536866801 — WIRING ASSY CLAMP SWITCH K1 PACE RAIL
597750602 — WIRING ASSY INTERNAL K 1 PACE RAIL
598867101 — CONTROL PANEL Small 2Btn BT HP Power Cutter BT
598872901 — CONTROL PANEL Small 2Btn noBT HP Power Cutter noBT
597792701 — DECAL WARNING K 1 PACE - RIGHT
597792402 — DECAL MOTOR COVER K1 PACE Rail
597792604 — DECAL WARNING K 1 PACE Rail - Left - RoW
584224502 — RAIL RAIL SPARE PART RA11 SPARE PART
546376502 — RAIL RAIL SPARE PART RA10S SPARE PART
593114301 — LOCKING HANDLE M16 SHAFT RA 11
735311000 — CIRCLIP SGA 8x0.8 St PP
596474301 — KNOB PLASTIC RA10/S
544399701 — SPRING HANDLE RAIL ATTACHMENT
723637001 — SCREW SLCSFM M6x20 5.8 ZPB
732211601 — LOCK NUT M6
505270609 — GASKET GAUGE RAIL ATTACHMENT
506236303 — BAR GAUGE
735311800 — CIRCLIP SGA 16x1 St PP
584865201 — SHAFT ROCKER RA 11
584225701 — ARM ROCKER RA11
583973901 — SPRING RAIL ATTACHMENT RA11
735311320 — E-CLIP SHAFTS 8x1 St PP
584225901 — BALL JOINT ADJUSTMENT RA11
734117201 — WASHER ISO 7089 10.5x20x2 St 200HV ZPB
506227702 — DRAW SPRING ARM RAIL ATTACHMENT
503767501 — DUST COVER
593207401 — LOCKING HANDLE INTERFACE RA10
732252201 — HEXAGON LOCKING NUT ISO 7040 M12 8 ZPB. NF
502446601 — PARALLEL KEY RK 5x5x10 St h9
503252101 — BALL BEARING 6202 C3 DDU 15x35x11
738218904 — BALL BEARING SINGLE ROW - 10 61904-2RS1
593176501 — SHAFT INTERFACE RA 11
970495001 — BATTERY CHARGER 100-C900X CON, EU
970495003 — BATTERY CHARGER 100-C900X CON, US
970495004 — BATTERY CHARGER 100-C900X CON, JP
970495005 — BATTERY CHARGER 100-C900X CON, AU
970495006 — BATTERY CHARGER 100-C900X CON, CH
970495002 — BATTERY CHARGER 100-C900X CON, UK
970495101 — BATTERY CHARGER 100-C1800X CON, EU
970495103 — BATTERY CHARGER 100-C1800X CON, US
970495104 — BATTERY CHARGER 100-C1800X CON, JP
970495105 — BATTERY CHARGER 100-C1800X CON, AU/NZ/AR
970495106 — BATTERY CHARGER 100-C1800X CON, CH
970495102 — BATTERY CHARGER 100-C1800X CON, UK
970494102 — BATTERY 100-B380X US/CA
970494001 — BATTERY 100-B380X RoW
970494202 — BATTERY 100-B750X US/CA
970494301 — BATTERY 100-B750X RoW
970494101 — BATTERY 100-B380X EU, AU, NZ, JP
970494201 — BATTERY 100-B750X EU, AU, NZ, JP
506382601 — TOOL COMBINATION 13mm | 19mm | T27
529750701 — ELITE-DISC™ RAIL 356 4.0 25.4
546059801 — BOX Plywood K1 PACE Rail
