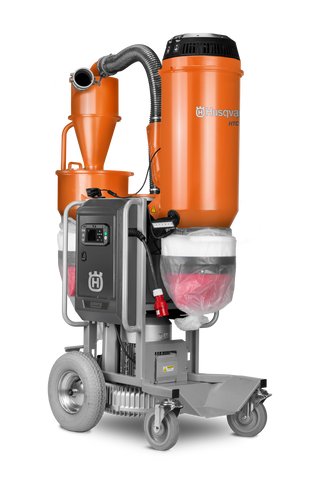

Husqvarna HTC D60 | DUST EXTRACTOR HTC D60 | 5.5 kW | 3x220-240V | 50-60 Hz | A | R | 967839910
Part Number: 967 83 99-10 (967839910)
The Husqvarna HTC D60 is a high-performance dust extractor engineered for integration with floor grinders utilizing Duratiq Technology. This unit features a 5.5 kW motor and operates on 3x220-240V at 50-60 Hz. It is designed to provide real-time operational data, including airflow, under-pressure, and filter status, via an integrated LCD display.
Key Specifications:
- Power Output: 5.5 kW
- Voltage: 3x220-240V
- Frequency: 50-60 Hz
- Article Number: 967839910 / 967 83 99-10
The system supports remote connectivity with compatible Duratiq grinders, such as the HTC 6, allowing operators to manage start/stop functions and filter cleaning directly from the grinder interface. An optional auto-purge function is available to maintain filter efficiency during operation.
| Motor | |
|---|---|
| Rated input power | 7.4 hp |
| Phases | 3 ph |
| Power Source | Corded |
| Dimensions | |
| Packaging length (Calc) | 55.118 in |
| Packaging width (Calc) | 35.433 in |
| Packaging height (Calc) | 63.386 in |
| Article gross weight (Calc) | 535.723 lbs |
- 593495901 — SCREW M12x25 8.8 ZP ISO 4017
- 595662501 — WHEEL SWIVEL
- 593496301 — CIRCLIP EXTERNAL CIRCLIP EXTERNAL 20X1.2 DIN471
- 595682501 — WASHER 21x32x4 ZP DIN 1441 WASHER FOR CLEVIS PIN
- 593964601 — WHEEL Grey Ø380X90
- 593527001 — SPRING TENSION SPRING TENSION HTC 80 ID SPARE
- 595662601 — PIPE CLAMP Ø17,2 (3/8")
- 595658101 — BRAKE KIT HTC D60
- 593464001 — HOSE DURABLE 3" NR/SBR by the Meter
- 593445001 — HOSE CLAMP HOSE CLAMP 3" 80ID/1500/25-35
- 900000002 — DUMMY PART
- 595715201 — EXHAUST PIPE HTC D60
- 593502801 — SCREW MC6S M8x20 8.8 FZB DIN912
- 595715301 — GASKET BLOWER HTC D60
- 595658201 — SCREW KIT SIDE CHANNEL BLOWER
- 595743701 — FAN CHANNEL BLOWER 5.5KW
- 595743801 — FAN BLOWER 5,5KW 400/690V
- 595663701 — BARREL PLUG Ø85MM BARREL PLUG 85MM D60
- 595715101 — CHASSIS FRAME D60
- 595664201 — DECAL WARNINGS VAC HTC D60 EN/FR
- 595772701 — POWER UNIT DUST EXTR. 15-24A BLACK (BLACK MACHINE)
- 595772801 — POWER UNIT UNIT DUST EXTR. 9-15A BLACK (BLACK MACHINE)
- 529522802 — COVER ELECTRICAL CABINET GREY
- 593583101 — RIVET BLIND 4,8X16 ISO 15977
- 529508201 — DECAL DURATIQ TECHNOLOGY
- 595662801 — CONNECTOR BLACK ELBOW 4MM - M5
- 593630201 — SCREW RXS 5,5X16 FZB
- 595716201 — COVER SIDE CHANNEL BLOWER HTC D60
- 593495401 — SCREW M6X10 8.8 ZP DIN 912
- 593545501 — FILTER HEPA 13 HEPA 13 FILTER 295X402
- 595764601 — DRUM LOCKING RING Ø350
- 595718301 — CABLE HOOK HTC D60
- 529523202 — COVER SIDE COVER GREY
- 529522201 — DECAL HUSQVARNA CROWN LARGE D60
- 595721401 — BAG BAG SHELF
- 595764402 — DRUM LOCKING RING Ø400
- 596788602 — SEPARATOR PRE LOWER SECTION
- 595658301 — BRACKET WHEEL KIT D60
- 593534701 — HOLDER LONGOPAC HOLDER LONGOPAC WITH DUCK BILL
- 593446401 — DUST BAG 4x20M MINI MEGA-STRONG (66 microns)
- 593457401 — THREAD INSERT CAMLOCK MALE 3", INT. 2.5"
- 593457701 — THREAD INSERT CAMLOCK THREAD INSERT CAMLOCK FEMALE 3
- 595721102 — SEPARATOR PRESEPARATOR TOP D60 ORANGE
- 595764502 — DRUM LOCKING RING Ø275 ORANGE
- 593444203 — STRIP RUBBER 15X8 L=100CM
- 529523402 — CONE PRESEPERATOR ORANGE
- 593444204 — STRIP RUBBER 15X8 L=140CM
- 595719901 — VALVE BYPASS VALVE CMPL D 60
- 595718901 — SEPARATOR BYPASS FILTER
- 593545901 — FILTER COARSE COARSE FILTER CONICAL PTFE
- 597255202 — FILTER TANK ORANGE
- 593457801 — HOSE COUPLING CAMLOCK FEMALE 3" HOSE SHANK HOSE NIPPLE CAMLOCK FEMALE 3"
- 593478601 — HOSE PU ANTISTATIC 3" TRANSP. by the Meter
- 595663002 — HOSE 4/2.5 MM BLACK L=65CM
- 593500701 — SCREW SCREW MC6S M6X16 8,8 FZB
- 595662901 — CONNECTOR BLK ELBOW 10MM - 43167
- 595721201 — INLET VALVE LID WASHER
- 595720701 — INLET VALVE GASKET
- 595717102 — PURGE VALVE TOP D60 GREY
- 595682601 — SCREW 5X16 ZP
- 595746601 — SOLENOID LINEAR
- 595662701 — HOSE 10/8 MM BLACK by the Meter
- 595663601 — O-RING SEAL 76x3.0 HTC D60
- 593504201 — SCREW M6x35 8.8 ZP DIN912
- 593498901 — PIN CP PIN H8 6X20 ISO 2338 PARALLEL PIN CP 6H8X20
- 595717001 — PURGE VALVE BUTTON D60
- 595717701 — PURGE VALVE RUBBER SEAL D60
- 595663401 — PURGE VALVE SPRING D60
- 595683001 — SCREW M3x16 8.8 ZP DIN 912 HEX SOCKET HEAD CAP SCREW
- 595664101 — DECAL FILTER PURGING HTC D60
- 595682901 — SCREW DIN 912 M6x55 8.8 ZP
- 595717901 — BRACKET PLATE SPRING HTC D60
- 595658401 — PURGE VALVE MEMBRANE KIT
- 595718101 — PURGE VALVE GASKET D60
- 595718502 — FILTER TANK TOP D60 GREY
- 595718201 — PURGE VALVE MEMBRANE D60
- 595718401 — PURGE VALVE LID GASKET HTC D60
- 593557901 — FUSE MAIN CIRCUIT BOARD 4A 32VDC
- 595531401 — CONTROL PANEL CMPL D60
- 595531501 — CONTROL PANEL CIRCUIT BOARD
- 595683501 — SCREW 3X8 ZP
- 595683601 — SCREW 3.5X8 ZP
- 595664001 — DISPLAY 3.5" 320X240
- 595716801 — CONTROL PANEL SEAL D60
- 595658501 — CONTROL PANEL - FRONT D60
- 593511101 — LOCKWASHER SERRATED M8
- 593500601 — SCREW SCREW MC6S M8X16 FZB
- 595746901 — PLUG M16 RUBBER
- 595665801 — CONNECTOR PUSH-IN FITTING
- 593559401 — CONTACTOR CONTACTOR 32A 24VDC
- 595684001 — CONTACTOR 18A 24VDC
- 595746701 — RELAY 10-16A
- 595747001 — RELAY RELAY 6-10A
- 593560101 — CIRCUIT BREAKER CIRCUIT BREAKER 2-P 5A
- 595746501 — POWER UNIT SUPPLY 24VDC 5A
- 595772901 — CABLE CABLE - D60 - 16A
- 595773001 — CABLE CABLE - D60 - 30A
- 593584601 — PLUG 3x440-480V, 16A. 3P+N+E 7h, S51S50A 20A 5P 3X480V
- 593584701 — PLUG 3x380-415V, 16A. 3P+N+E 6h, S51S30A 20A 5P 3X400V
- 593557601 — PLUG Plug 3x200-240V, 32A 3P+E 9h, S42S20 30A 9H 3P+E BLUE, 250V, IP44, UL/CSA
- 593557101 — CONNECTOR 30A 4P 3X250V
- 593560601 — CONNECTOR 20A 5P 3X400V
- 593560801 — CONNECTOR 20A 5P 3X480V
- 595773101 — CABLE MOTOR CABLE D60 - 16A
- 595773201 — CABLE MOTOR CABLE D60 - 30A
- 593460001 — THREAD INSERT CAMLOCK MALE 2" ALU
- 593459801 — ADAPTER PIPE ADAPTER PIPE 51 TO 2" THREAD
- 593444601 — PIPE CLEANING 50
- 593477501 — PIPE CLEANING CLEANING WAND INCL. FLOOR TOOL
- 590428502 — RUBBER BLADES 450 mm
- 590428503 — RUBBER BLADES L=400/445
- 593467401 — NOZZLE FLOOR 450MM RUBBER, 80I
- 538716001 — WHEEL KIT FLOOR TOOL D40/6 W16 2 PCS
- 595655801 — CAM LOCK MALE 3" HOSE SHANK 2"
- 593478401 — HOSE PU ANTISTATIC 2 TRANSP. by the Meter
- 593459701 — HOSE COUPLING CAMLOCK FEMALE 2" HOSE SHANK HOSE NIPPLE CAMLOCK FEMALE 2"
- 595655901 — HOSE KIT 2" 3.3M CAMLOCK HOSE KIT
- 593478801 — HOSE KIT CAMLOCK 3" 10M
- 593457601 — HOSE COUPLING CAMLOCK MALE 3" HOSE SHANK HOSE NIPPLE CAMLOCK MALE 3" AL
