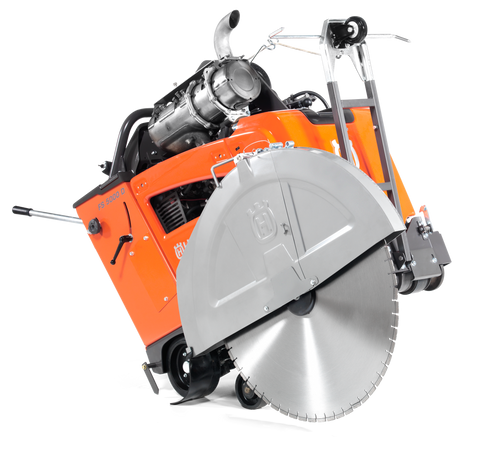

Husqvarna FS 5000 D | FLOOR SAW FS 5000 D 48 hp | T4 | 36" | 3-SPD ETRK BLD CLUTCH | 967207347

Part Number: 967 20 73-47 (967207347)

The Husqvarna FS 5000 D is a high-performance, walk-behind diesel floor saw engineered for professional concrete and asphalt cutting. Featuring a 48 hp Tier 4 compliant engine, this unit delivers high production rates for mid-sized road work and service applications. It supports cutting depths of up to 14 3/4" using a 36" blade.

Key Specifications:

• Engine: 48 hp diesel, Tier 4 compliant
• Max Cutting Depth: 14 3/4"
• Blade Capacity: 36"
• Transmission: 3-speed gearbox with electronic tracking
• Blade Clutch: Integrated for safety and operational flexibility

The machine is designed for efficiency and ease of use, featuring an intuitive digital control panel that monitors critical functions such as blade rpm, forward speed, and service intervals. Its compact, well-balanced design ensures maneuverability and stability during operation.

Product Features

❮

Powerful and fuel-efficient

Common-rail diesel engine with low emissions.

Low emissions

Equipped with diesel particle filter (DPF). Complies with Stage IIIB / Tier 4 regulations.

Intuitive and ergonomic control panel

All important functions are easy to reach and monitor, such as blade rpm, forward speed, electronic tracking, depth gauge, belt and pulley ratios, runtime and service minder.

Easy adjustment of tracking for straight cuts

Electric tracking system includes position indicator on the display, it can automatically return to neutral position and has the ability to memorise last used setting.

Powerful and productive

The power transmission system with right-angle gearbox transmits high power to the blade shaft with optimum torque and minimised vibrations.

Ergonomic

Adjustable handlebars, intuitive control layout, easy manoeuvrability and low vibrations facilitate operation and reduce user-fatigue.

Adjustable and telescopic pointer

Provides good visibility when cutting and can be folded for transport.

Adjustable handles

Provides a closer and more comfortable position to the cutting side for easier alignment and straighter cuts. Handle can also be folded for transport.

Convenient transport between truck and work site

The blade clutch makes it possible to stop the blade when the engine is still running, for safe transportation.

Quick dis-engagement at blade slam

When thermal expansion of the concrete causes the blade to pinch in the kerf of the cut you can dis-engage the blade with the blade clutch.

Easy assembly of blade guard

Blade guard with lockable hinge. Easy to assemble and dis-assemble using your blade wrench.

Easy to operate

Well-balanced design with a low profile gives you high visibility and makes it easy to handle and transport.

Optimised display visibility

Automatic adjustment of the display back light makes the display readable in all light conditions.

Automatic depth stop

The depth indicator's stop function stops the saw at your desired cutting depth. Adjustable for all blade diameters.

Low maintenance

The IntelliSeal blade shaft system allows for a minimum of 250 maintenance-free hours without daily greasing of bearings.

Highly versatile 3-speed version

Optimal power and speed for a wide range of blade diameters; ideal when jobs require use of multiple blade sizes.

Self-propelled

For easy operation and comfort.

Optimised weight distribution

Helps maintain traction and gives comfortable operation.

❯
