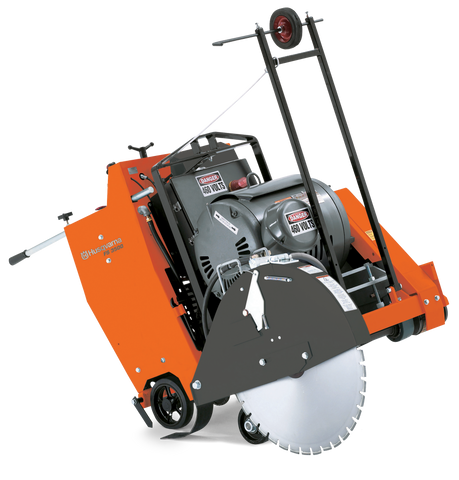

Husqvarna FS 3500 E | FLOOR SAW FS 3500 E 30 hp | 460 V | 30" | 965151808
Part Number: 965 15 18-08 (965151808)
The Husqvarna FS 3500 E is a 30 hp electric floor saw designed for precision cutting in concrete and asphalt. Engineered with a well-balanced, low-profile architecture, this unit is optimized for small to medium-scale service and repair applications, particularly in indoor environments. This model operates on 460 V power and supports a 30" blade capacity, providing consistent performance for professional contractors.
Product Features
Compact unibody frame
The compact one-piece unibody frame (with a jig-welded reinforced plate chassis) allows passage through a 36" doorway.
Emergency stop switch
Emergency stop switch shuts off power to the 12-volt system and to the electric motor control circuit.
Two-position handle bar
Two-position handle bar for operator comfort.
| Engine | |
|---|---|
| Motor/engine manufacturer | Lincoln |
| Power Source | Corded |
| Motor | |
| Voltage | 460 V |
| Frequency | 60 Hz |
| Phases | 3 ph |
| Cutting equipment | |
| Cutting depth, max | 12 in |
| Blade diameter, max | 30 in |
| Blade depth control | cutting depth indicator adjusts for all blade sizes; console mounted depth stop control limits cutting depth at selected measurement |
| Dimensions | |
| Weight | 1,160 lbs |
| Packaging length (Calc) | 59.055 in |
| Packaging width (Calc) | 37.992 in |
| Packaging height (Calc) | 51.181 in |
| Article gross weight (Calc) | 1,657.876 lbs |
- 504096501 — FRAME WELDMENT PRO35 HUSQVARNA GREY
- 542045241 — BEARING
- 542163969 — FRONT AXLE ASSY
- 542046402 — WASHER FLAT 1.03125/Z/P
- 590649801 — WHEEL W BALL BEARING/6 X 2.0
- 539300123 — BUSHING
- 542020551 — KEY
- 539990118 — SLW 3/8 STD
- 542020365 — SCREW HHCS .375-16X2.25/GR 5 Z
- 542173010 — NUT HEX LOW. M12-1.75
- 725254071 — SCREW EHHM M12x40 8.8 ZPB
- 542183987 — REAR AXLE ASSY WELDMENT (LFS)
- 542183320 — SPROCKET
- 542020071 — KEY
- 725237271 — SCREW EHHM M6x25 8.8 ZPB
- 732251601 — HEXAGON LOCKING NUT ISO 7040 M6 8 ZPB. NF
- 542166017 — WHEEL KIT 8" W/SET SCREWS
- 542020531 — SCREW
- 539990637 — HCS 3/8C X 2 1/2
- 539990254 — WASHER 1/2" SPLIT LOCK
- 734117801 — WASHER ISO 7089 13x24x2.5 St 200HV ZPB
- 588789701 — HYDRAULIC CYLINDER SINGLE ACTING
- 539990250 — WASHER 1/2" FLAT
- 542176699 — PIN CLEVIS, .50 DIA x .2.25
- 542020614 — PIN
- 542176700 — PIN
- 541204791 — HYDRAULIC KIT 2404-4-4/
- 731231601 — HEXAGON NUT ISO 4032 M6 8 ZPB
- 542167449 — EYE BOLT 4T167449
- 504096701 — BELT GUARD HUSQVARNA GREY
- 725245571 — SCREW EHHM ISO 4017+2702 M 8 X 30 8.8 ZPB
- 732251801 — HEXAGON LOCKING NUT ISO 7040 M8 8 ZPB. NF
- 542163132 — LEVER
- 542167720 — PIVOT
- 725255271 — SCREW ISO 4017 M 12 X 100 8.8 ZPB
- 542191746 — HOSE ASSY
- 542176605 — DRIVE SPROCKET
- 542020550 — SCREW
- 541203404 — KEY 1/4 x 1/4 x 1
- 542176703 — CHAIN ANTRIEBSWELLE/FS702T-01
- 542163246 — DECAL DECAL, ALIGNMENT ADJUSTMENT
- 542176223 — DECAL CAUTION (SHIELDS)
- 542166553 — GEARBOX
- 539300678 — VARIATOR EATON TRANSMIS/
- 542048326 — PLASTIC OIL RESERVOIR/
- 542166447 — SWITCH NEUTRAL SAFETY
- 539300749 — KEY 300749
- 542176516 — GETRIEBEHALTERUNG
- 725251551 — SCREW EHHM ISO 4014 M 10 X 120 8.8 ZPB
- 734117201 — WASHER ISO 7089 10.5x20x2 St 200HV ZPB
- 732252001 — HEXAGON LOCKING NUT ISO 7040 M10 8 ZPB. NF
- 542176531 — BRACKET CABLE - BLACK
- 734116301 — WASHER ISO 7089 8.4x16x1.6 St 200HV ZPB
- 542176533 — ARM Control SPEED CONTROL ARM
- 539976979 — NUT 3/8-16 NYLOC
- 542176523 — BRACKET TENSIONING - BLACK
- 731232001 — HEXAGON NUT ISO 4032 M10 8 ZPB
- 725250171 — SCREW EHHM ISO 4017 M 10 X 50 8.8 ZPB
- 542176535 — V-BELT SHEAVE
- 542020568 — SCREW SHSS, .25-20 x .375
- 732251401 — HEXAGON LOCKING NUT ISO 7040 M5 8 ZPB. NF
- 542163040 — PLATE
- 542163105 — BLADE
- 725232971 — SCREW EHHM M5x16 8.8 ZPB
- 542020776 — LOCKWASHER .25/HI-COLLAR
- 539990071 — HCS 1/4-20.
- 542020381 — BOLT
- 542176525 — PIVOT
- 735115301 — WASHER
- 542167502 — SCHRAUBE/
- 542181362 — LINK LINK ASSY, SHIFTER
- 542166607 — BEARING
- 542139022 — SCREW
- 505732501 — NUT 3/8-16 JAM
- 542166601 — BEARING
- 542020739 — WASHER FLAT #10(3/16")/"
- 542020612 — PIN COTTER .0937 X .75
- 542181359 — ROD
- 542166690 — BALL LINK
- 542181361 — GROMMET
- 542041427 — KNOB
- 542020171 — NUT
- 542183985 — BRAKE ASSY PRO 35
- 542183967 — BRAKE FS3100D
- 732211601 — LOCK NUT M6
- 542183975 — ROD CONTROL ROD
- 542020632 — PIN PIN, HAIR
- 542173059 — WASHER FLAT M8
- 542020785 — HS350T RINGS/
- 542197227 — SCREW HHCS.M8X1.25X20/DIN 933
- 504096601 — COWL PANEL WELDMENT PRO 35 HUSQVARNA ORANGE
- 539300242 — FITTING
- 542020730 — PIPE 5", "5" TEE PIPE"
- 542176185 — NIPPLE
- 542178724 — SWITCH PRESSURE. N.O.
- 582691001 — VALVE BALL 1/2" NPT BRASS VALVE
- 725249371 — SCREW EHHM M10x25 8.8 ZPB
- 539300269 — FITTING 300269
- 542045640 — WASHER
- 504093901 — SHIELD REAR TRANSMISSION
- 542163248 — STRIP SPONGE STRIP
- 585972801 — SCREW EHHFM EN 1665 M 8 X 30 8.8 ZPB
- 542163656 — HOSE
- 542048500 — HANDLE ASSY EXTENSION W/GRIP
- 539300340 — HANDLEBAR 38-SP 65HP
- 542139568 — GRIP
- 542166038 — KNOB 1.25 X 3/8 - 16 UNC/2A
- 542043711 — SUPPORT
- 542030822 — FS700/2/900/2 WHEEL SUR/BEARIN
- 542032366 — NUT
- 542043696 — BEARING
- 542163261 — KNOB
- 542020763 — WASHER SAE .3125/Z/P
- 542043694 — WHEEL FS900T
- 542020197 — FS900T SCREW NUT/
- 542167722 — PHMS. M5 -0.8 X 12
- 542163228 — WIRE
- 542043698 — CLAMP
- 542163168 — FS900T SPRING/SPRING
- 541201653 — HANDLE DEPTH STOP.3 LOBE
- 539300020 — NLA SCREW SET 1/4C X 1/2"
- 542020745 — WASHER
- 542046424 — WASHER
- 542046425 — WASHER
- 542163238 — ROD
- 542160164 — PIN
- 542172017 — NUT HEX M6 4T172017
- 542164900 — DEACL,POS. DEPTH STOP/(DB)
- 542163233 — DECAL DECAL, POSITIVE DEPTH STOP
- 542191009 — DECAL DEPTH INDICATOR PRO 35
- 724128551 — SCREW ISO 7045:1994 M 4 X 6 8.8 ZPB
- 542182146 — BOOT 4T182146
- 581118501 — PLATE TOGGLE SWITCH
- 542182102 — SWITCH
- 586946201 — HANDLE ASSY SPEED CONTROL
- 581073601 — HARNESS ASSY Cowl Handle Harness Large Flat Saw
- 583959501 — CLAMP FIR TREE WITH DISC D6,5MM
- 725236871 — SCREW EHHM M6x16 8.8 ZPB
- 735115351 — SPRING WASHER DIN 137 TYPE A 6.4x11x0.5 St ZPB
- 734115201 — WASHER ISO 7089 6.4x12x1.6 St 200HV ZPB
- 732252201 — HEXAGON LOCKING NUT ISO 7040 M12 8 ZPB. NF
- 542183124 — Disc SPRING WASHER 9712K74
- 588680001 — BRACKET SPEED CONTROL
- 581068901 — BEARING BUSH
- 579425601 — WASHER SPEED CONTROL 16.5 X 50
- 588680401 — ARM PIVOT WELD ASSY
- 539976978 — NUT.1/4-20.HEX.NYLOC.ZD
- 542176398 — SWITCH
- 586866801 — SCREW EHHI SHOULDER SHOULDER L=2-1/8" THREAD 1/4"-20 L=3/4"
- 541205253 — NUT 10-32. NYLOCK
- 542166466 — ROD
- 579510103 — CABLE PUSH PULL L=950mm
- 542183001 — BUSHING 4T183001
- 587812001 — HANDLE ASSY SPEED CONTROL W/SWITCH & WIRE
- 589004101 — BRACKET BATTERY
- 725249171 — SCREW EHHM ISO 4017 M 10 X 20 8.8 ZPB
- 542191578 — BATTERY 526RMF 12V WET
- 542191735 — BRACKET BATTERY HOLD DOWN BAR, BLACK
- 505551201 — BOLT J- .25-20UNC X 8.25 Z/P
- 539990055 — WASHER 1/4 SAE
- 725237071 — SCREW EHHM M6x20 8.8 ZPB
- 542163180 — WIRE
- 542043732 — CABLE BATTERY, POSITIVE 12"
- 542163179 — WIRE FS900T
- 542117133 — CABLE BATTERY, NEGATIVE 26"
- 501626101 — HYDRAULIC PUMP 12 VDC POWER UNIT
- 542090749 — OIL DEXRON/
- 542020322 — SCREW FS900T SCREW/
- 541204980 — FITTING 6401 - 6 - 4
- 542205301 — VALVE A542205301
- 541204585 — FITTING HYDRAULIC 2501-4
- 542197101 — GROMMET
- 542176714 — CABLE BATTERY NEG 18 BLACK
- 542176838 — BATTERY
- 542177066 — COVER RUBBER BOOT BATT.TERM./BLACK
- 542020743 — U-SCHEIBE/* 020743 REF.53
- 542020786 — LOCKWASHER
- 542020323 — FS900T CAPSCREW/
- 542163353 — FS900T PPE HYDRAULIQUE/
- 542163320 — O-RING
- 542020366 — SCREW HHCS .25-20 X .375 GR 5 Z/P
- 542163351 — VALVE
- 542163350 — SPRING
- 542180020 — VALVE
- 542166594 — COIL 12VDC
- 542020177 — NUT
- 542163321 — DRUCKBEGRENZUNGSVENTIL 4T163321
- 542166121 — RELAY
- 542163344 — FS900T CABLE/
- 542180022 — RESERVOIR
- 542163363 — FS900T TUBE COUDE/
- 542163364 — FS900T RING/
- 542163365 — FS900T RING ETOILE/
- 542163366 — FS900T O RING/
- 542163359 — FS900T TUBE COUDE/
- 542163360 — FS900T RING/
- 542163361 — FS900T RING ETOILE/
- 542163362 — FS900T O RING/
- 542163331 — FS900T KIT RELIEF VALVE/
- 542163325 — FS900T TUBE COUDE/
- 542163328 — FS900T BOUTON CLAVETTE/
- 542180023 — FILTER
- 542163358 — SCREW FS900T SCREW/
- 542163357 — FS900T GANG SAWLLE/
- 542163356 — FS900T GANG SAWLLE/
- 542163326 — FILTER
- 542020169 — NUT NUT, HEX JAM THIN .3125-18 Z/P
- 542163319 — VALVE
- 542163354 — FS900T SCREW/
- 542163324 — FS900T BREATHER/
- 542020764 — WASHER FLAT SAE .375/Z/P
- 900000002 — DUMMY PART
- 502599901 — PANEL INSTRUMENT PRO35III ELECTRIC HUSQVARNA GREY
- 542191127 — DECAL INSTRUENT PANEL, ELECT
- 542166438 — GAUGE
- 542163779 — HOUR METER
- 542166707 — KEY SWITCH IGNITION/
- 542166854 — KEY,IGNITION SET OF 2/
- 542166711 — SWITCH ROCKER SPST/
- 542176918 — METER METER, MOTOR LOAD
- 542020587 — BOLT
- 542166225 — PLUG HOLE, 2.25" DIA
- 504096001 — COVER PLATE PUMP HUSQVARNA ORANGE
- 542176383 — SWITCH MUSHROOM STOP
- 502616801 — PANEL DASH COVER PRO35 E HUSQVARNA GREY
- 542191098 — DECAL OPERATING INSTRUCTIONS FS3500E
- 582616301 — HARNESS ASSY FS3500 ELECTRIC
- 542163672 — RING
- 542166622 — BLOCK
- 542020410 — BOLT RHMS, #10-24 X 1/Z/P
- 505630401 — NUT Nyloc Hex Head
- 542166708 — RELAY
- 542166951 — SCREW HWHSTS #10-24 X .5 TYPE F
- 542166855 — FUSE 10 AMP
- 542166857 — FUSE 5 AMP
- 542178645 — CIRCUIT BREAKER 30 AMP/FS 904
- 504095601 — BELT GUARD WELDMENT HUSQVARNA ORANGE
- 502616701 — DRIVE BELT GUARD FS3500E 30HP HUSQVARNA ORANGE
- 502616702 — DRIVE BELT GUARD FS3500E 20HP HUSQVARNA ORANGE
- 735117301 — SPRING WASHER
- 542191240 — MOUNT
- 542173006 — WASHER STAR EXTERNAL M10
- 542139751 — HUTSCHRAUBE HX HD.M12-1,75X25 4F139751
- 542020788 — FS900T RINGS/
- 541201864 — WRENCH OPEN END 1-1/2
- 542183147 — BLADE SHAFT ASSY: 18-26 B/M
- 542183636 — BLADE SHAFT ASSY
- 542183466 — SHAFT SHAFT ASSY: PRO35 ELEC-30HP
- 542164233 — AXE
- 542183144 — BALL BEARING
- 542183637 — TUBE GREASE ZERK EXT
- 542164296 — GREASE FITTING/
- 542110102 — LUBRICATION NIPPLE
- 542043054 — KEY
- 542183785 — KEY
- 542183297 — KEY SQ,RND END 3/8 x 2.75LG
- 542183652 — PULLEY, 3V 6 GR 4.75 OD
- 542048667 — PULLEY 6G3V4.12 - 1.4375
- 542043036 — FLANGE
- 542045863 — FLANGE INNER 4.5 O.D.
- 542167187 — FLANGE
- 542167188 — COLLAR
- 542043046 — FLANGE FLANGE, OUTER 30-36 BO
- 505531901 — PIN DOWEL .375 X 1.5
- 541204625 — NUT STD HEX 1-14 RH Z/P
- 542048732 — SLEEVE
- 542020017 — NUT
- 542021403 — SCREW
- 542164243 — GREASE FITTING/
- 542183465 — BUSHING TYPE SK, 1.438 ID
- 542183464 — PULLEY 6GR, 3Vx5.60 A1 SK HUB
- 542040570 — DECAL DECAL, GREASE BEARING DAILY DB
- 542040563 — DECAL DECAL, GREASE BEARINGS DAILY
- 541208499 — POINTER C542206308
- 542160196 — POINTER
- 542163582 — WHEEL 5" (FS702)/"
- 539300074 — COLLAR
- 542167431 — SCREW
- 542139742 — NUT M12-1.75
- 501043501 — POINTER Stop, Black
- 725245171 — SCREW EHHM M8x20 8.8 ZPB
- 542162004 — LOCKWASHER SPLIT M10
- 542164968 — HHCS, M10 X 1.5 X 50 /DIN933 Z
- 541208453 — COVER B-183933
- 542172501 — HHCS, M10 X 1.5 X 110/DIN931ZP
- 542020890 — CORD
- 542043203 — BRACKET
- 542183538 — BRACKET POINTER EXTENSION
- 542139741 — SCREW HX HD.M12-.75X30 4T139741
- 542183367 — BAIL LIFTING WELD ASSY
- 542166091 — BRACE BLK
- 542167447 — SCREW HX HD M16-2.0X45 4T167447
- 542020767 — SCHEIBE FLAT 5/8 SAE 4T020767
- 576878928 — NUT M16 X 2 NYLOC
- 725250271 — SCREW EHHM ISO 4017 M10x55 8.8 ZPB
- 541201706 — MOTOR ELECTRIC 30HP ENCAPSULA
- 542164258 — TEST EQUIPMENT EQUERRE/
- 542164256 — BRACKET ENGINE BASE
- 542172306 — BOLT
- 542173042 — WASHER, FLAT M12
- 542163259 — HYDRAULIC KIT WINKEL KEILRIEMENSCHEIBE/HYDRO
- 542167659 — MOTOR ASSY BASE, MOTOR-20HP EL METRIC BLK
- 542183365 — BAR SPACER, MTR
- 542191096 — BRACKET ALTERNATOR BRACE WLDMNT
- 542178825 — SCREW 5/16-18 X 1 GR5/Z/P
- 542139749 — SCREW HX HD.M10-1.5X25 4T139749
- 542167034 — SCREW CCRPANMO
- 542173014 — WASHER FLAT M10
- 542139748 — NUT M10-1.5
- 542117154 — GENERATOR ASSY, 12V 37 AMP
- 541201012 — V-BELT 3VX315
- 523219101 — DRIVE BELT 3VX500 MECO NUMBER: 30288
- 542020055 — KEY .5 Sq x 2.5
- 542183463 — PULLEY 8GR, 3Vx5.0-1.88
- 542183548 — PULLEY 8GR 5/4.5 3V 1.88 BORE
- 542045399 — V-BELT 3VX475 SET OF 6
- 576449180 — V-BELT 3VX500- 3BAND SET OF 2
- 542166186 — BRACKET ALTERNATOR MOUNTING WLDMNT
- 542164352 — PLATE
- 542163260 — FS900T SPRING/
- 542167763 — PULLEY 1G4L3.0-17MM A167763
- 542167762 — BLADE BUSHING PULLEY
- 542182187 — STARTER D542182187
- 542182188 — STARTER *
- 542182189 — RELAY OVERLOAD FS3500 E
- 542176941 — BUTTON RESET, THRU DOOR
- 542176940 — BUTTON COVER, RESET
- 542166898 — GROMMET 3-SPD
- 542172027 — NUT HEX M8 4T172027
- 542139738 — NUT M8
- 542176914 — TRANSFORMER CURRENT
- 542176938 — CONDUIT END FITTING SEAL TIGHT 3/4" 45 DEG T&B 5243
- 542183540 — CONDUIT END FITTING REDUCING WASHER
- 542176953 — LOCK NUT 3/4" CONDUIT
- 542176939 — CONDUIT END FITTING BUSHING 1"- 3/4" T&B # 1251
- 542176933 — SEALING RING RING: SEALING 3/4"
- 542046748 — CONDUIT END FITTING STRAIN RELIEF T&B 2534
- 542176951 — CONDUIT END FITTING STRAIN RELIEF, WATER TIGHT 1/2'
- 542183432 — CONDUIT END FITTING STRAIN RELIEF 1"
- 542176934 — CONDUIT END FITTING RING, SEALING 1" T&B 5264
- 542176954 — CONDUIT END FITTING CONDUIT: LOCK NUT 1"
- 542176913 — CONTROL CABLE MTR PRO35III E
- 542166955 — CLAMP
- 542183404 — CONNECTOR PLUG, TWIST LOCK 460P7W
- 542176930 — CONNECTOR PLUG: 230VAC ELEC WATER TIGHT
- 542176945 — CONNECTION SYSTEM PLUG: TWIST LOCK 600V
- 542176943 — CONNECTOR PLUG: TWIST LOCK 460V
- 542183403 — CONNECTOR CONNECTOR, TWIST LOCK 480 VAC
- 542176931 — CONNECTOR 230VAC ELEC WATER TIGHT
- 542176942 — CONNECTOR TWIST LOCK 460V
- 542176944 — CONNECTOR TWIST LOCK 600V
- 542176950 — CABLE SLEEVE CABLE SUPPORT
- 502610301 — OPERATOR'S MANUAL FS 3500 HUSQ
- 542176282 — BRACKET
- 542176280 — BRACKET
- 542167491 — SCREW M10X1.5X25 4T167491
- 542198165 — BLADE GUARD FS3100D/30 (750
- 542198163 — BLADE GUARD slip on FS4800D 18
- 542198164 — BLADE GUARD 4T198164
- 541208440 — PLATE 166818
- 542166957 — BOLT
- 542191962 — WASHER 4T191962
- 541208450 — REAR BLD GD WLDMT 18S.PC H-GRY D-167509
- 542163388 — MANIFOLD
- 542020864 — SCREW
- 542166986 — COLLECTOR
- 542139759 — SCREW M6 X 1.0 X 45
- 542163689 — LOCKWASHER SPLIT M6
- 542040275 — FS900T REDUCTION/HOSE H:ITTIN
- 542163395 — CLAMP
- 542167818 — SCREW
- 542139745 — LOCK NUT FIBRE
- 542166816 — LATCH BLADE GUARD/FS 904 T DIE
- 542167503 — BOLT M8 X 1.25/
- 542046101 — WASHER
- 542163188 — SPRING
- 542167761 — SCREW HEX HD M5-0.8X20 4T167761
- 542172011 — NUT HEX HD M5-0.80 4T172011
- 542163389 — GUARD
- 542139761 — M6 X 20MM SET SCREW/
- 542139746 — WASHER
- 541208451 — FRNT BLGD WLD 18S MET PC H-GRY
- 542167824 — HINGE BLADE GUARD NARROW/FS660
- 542173019 — STAR WASHER, EXTERNAL M8/
- 542199128 — SPRING
- 542046128 — DECAL BLADE GUARD SIZE
- 542167289 — DECAL BLADE DIRECTION SMALL
- 542167298 — DECAL WARNING BLADE GUARD 4T167298
- 541208439 — BLD GRD WLMT.REAR 30".PC H-GRY
- 541208445 — BLADE GUARD D-166959
- 542166750 — BRACKET
- 542166815 — COLLECTOR
- 542166985 — COLLECTOR
- 542163275 — SPLASH GUARD 12
- 541208438 — GUARD C-199795
- 541208446 — GUARD C-166965
- 542195127 — HINGE BLADE GUARD/FS 6600D
- 542197170 — WING BOLT WRENCH -/BLDSHAFT
- 542183998 — WIRE NYLON COATED 4T183998
- 542183999 — SCREW 10X.25 4T183999
