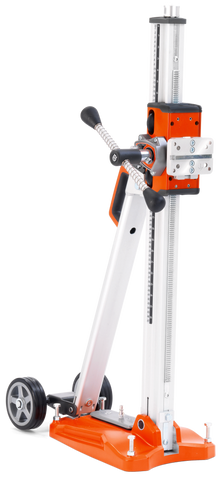

Husqvarna DS 250 | DRILL STAND DS 250 US | 966827302
Part Number: 966 82 73-02 (966827302)
The Husqvarna DS 250 (Article 966827302) is a mid-sized, lightweight aluminum drill stand designed for professional core drilling applications. It features a versatile combination base plate that supports both anchoring and vacuum mounting methods. This unit is engineered for drilling diameters up to 10 in. and is suitable for a variety of tasks, including stitch drilling and angle drilling for plumbing and ventilation installations. Transport wheels are included as standard equipment.
Product Features
Straight and accurate drilling
The carriage has guide rollers which help drill straight holes.
Angle drilling
The unit can be set for drilling at different angles.
Optimum feed speed
Carriage with single and double gearing for efficient drilling.
Vertical drilling
Drilling upwards and downwards.
User-friendly base plate
Lightweight base plate made of aluminum with integrated vacuum base, means fast setup with no damages to the surroundings.
Quick mounting of drill motor
The easy mounting of the drill motor means quick setup.
Easy transportation
The stand is equipped with transport wheels.
Channels, pipes and cables
Drilling ventilation channels and holes for pipes and cables.
Angle drilling
Drilling holes in stepless adjustable angles.
Horizontal drilling
Drilling horizontally.
Stitch drilling
Drilling multiple holes next to each other to make openings.
| Equipment | |
|---|---|
| Drill bit diameter, max | 9.84 in |
| Drill bit length with recommended drill motor, max | 23/27.5 in |
| Product data | |
| Column's angling | 0-60º |
| Column installation | Tiltable |
| Dimensions | |
| Travel length, max | 26.97 in |
| Product size length | 16 in |
| Product size width | 10.5 in |
| Product size height | 41 in |
| Weight | 35.3 lbs |
| Packaging length (Calc) | 45.276 in |
| Packaging width (Calc) | 20.866 in |
| Packaging height (Calc) | 12.992 in |
| Article gross weight (Calc) | 48.502 lbs |
- 579242701 — COVER KIT VACUUM CAP
- 541404071 — NIPPLE Male Fitting
- 593331701 — SCREW ISO 10642 M6X12 8.8 ZPB LOCK
- 541404892 — GUARD
- 541404887 — BASE
- 720130650 — PARALLEL PIN 5x12 CH ISO 8734 B
- 593332001 — SCREW ISO 10642 M8X16 8.8 ZPB LOCK
- 541405088 — PIVOT
- 735311500 — CIRCLIP SGA 13x1 St PP
- 541404080 — SCREW
- 731232001 — HEXAGON NUT ISO 4032 M10 8 ZPB
- 541404861 — BASE
- 541404084 — CAP LEVELLING SCREW
- 593571001 — SCREW ISO 4762 M 6 X 16 8.8 ZPB Lock
- 541404891 — GASKET
- 593571601 — SCREW ISO 4762 M 4 X 10 8.8 ZPB
- 541404899 — GUARD
- 541404883 — SUPPORT
- 541404909 — HANDLE
- 734116301 — WASHER ISO 7089 8.4x16x1.6 St 200HV ZPB
- 593333801 — SCREW ISO 4762 M 8 X 20 8.8 ZPB Lock
- 541404098 — DRILL
- 734117201 — WASHER ISO 7089 10.5x20x2 St 200HV ZPB
- 725249771 — SCREW EHHM M10x35 8.8 ZPB
- 541405067 — COLUMN CLAMP BUSHING
- 735311700 — CIRCLIP SGA 15x1 St PP
- 734118201 — WASHER ISO 7089 15x28x2.5 St 200HV ZPB
- 541405084 — WHEEL Ø125mm
- 541405087 — FRAME
- 593332301 — SCREW ISO 4762 M 8 X 16 8.8 ZPB Lock
- 725250951 — SCREW EHHM ISO 4014 M 10 X 90 8.8 ZPB
- 541404827 — BUSHING
- 541404824 — SUPPORT
- 541404822 — SUPPORT
- 541404809 — SCREW
- 541404868 — GUARD
- 579242801 — STAND KIT COLUMN
- 541404054 — DECAL DEPTH MEASUREMENT
- 541404878 — RACK
- 593250101 — SCREW ISO 7380-1 M 8 X 30 St ZPB Lock
- 541404882 — DECAL ANGLE MEASUREMENT
- 541404870 — COLUMN CLAMP - BACK
- 541404881 — COLUMN PIVIOT AXLE
- 541404869 — COLUMN CLAMP - FRONT
- 725250751 — SCREW EHHM ISO 4014 M 10 X 80 8.8
- 541404101 — LEVER
- 531140672 — GRIP KNOPP MATARSPAK
- 541405163 — SPRING
- 541404905 — SHAFT
- 541405047 — DECAL CAP
- 541405137 — HANDLE
- 732211801 — LOCK NUT M8
- 541404133 — BALL
- 541404044 — SHAFT
- 579243003 — CARRIAGE ASSY SPARE PART DS 250/DMS 240
- 541404935 — DECAL GEAR HOUSING
- 725537455 — SCREW IHSCM M6x30 12.9 TBO
- 541404910 — BEARING
- 589530901 — GEAR Input Shaft
- 522805601 — BALL BEARING 61805 2RS1
- 579242902 — GEAR WHEEL KIT SPARE PART DS 250/DMS 240
- 597303201 — SHAFT Input Shaft Extension Plate With gear
- 541404928 — COVER PLATE GEAR HOUSING
- 725628756 — SCREW IHCSFM DIN 7991 M4x8 10.9 TBO ESLOK
- 735311900 — CIRCLIP SGA 17x1 St PP
- 738210304 — BALL BEARING SINGLE ROW - 10 6003-2RS1
- 587922301 — DRIVE SHAFT CARRIAGE
- 541405036 — LEVEL
- 593574401 — SCREW ISO 4027 M6X20 22H ZPB LOCK
- 541404800 — GUARD
- 725529301 — SCREW IHSCM ISO 4762 M 4 X 16 8.8 ZPB
- 541404803 — ECCENTRIC
- 541404805 — ECCENTRIC DISC
- 575848301 — BRACKET ASSY MOTOR DMS240/DS250
- 590494701 — PLATE MOTOR BRACKET ASSSY DMS240/DS250
- 525540701 — WEDGE MOTOR BRACKET DMS240/DM220/DS250
- 593333301 — SCREW ISO 4762 M 8 X 12 8.8 ZPB Lock
- 577950601 — BRACKET DRILLSTAND
- 577836201 — LOCK FIXATION
- 728745506 — SCREW IHSETM M8x30 St TBO LOCK
- 577836101 — BOLT LOCKING
- 510202701 — PIN D4.8xL40 CASE HARDENED
- 593574701 — SCREW ISO 4029 M6X10 22H ZPB LOCK
- 731431801 — HEXAGON THIN NUT ISO 4035 M8 St 04 ZPB
- 543850216 — INDEXABLE HANDLE, NUT M8
- 582697305 — PARALLEL KEY 10x8x80
- 593574201 — SCREW ISO 4028 M8X25 22H ZPB LOCK
- 541404032 — GUIDE CYLINDER
- 541404862 — GUARD
- 541404804 — SHAFT
- 579270101 — BRAKE KIT
- 541404864 — BRAKE
- 541405043 — SPRING FEEDING CRANK RELEASE SPRING
- 541404816 — BRAKE KNOB DS 150/DMS 180 and DS 250/DMS 240
- 599710501 — ROLLER Assy
- 541405180 — GASKET Gasket, gearbox
- 581257101 — ADAPTER RING DS
- 541404927 — GEAR HOUSING MACHINED
- 541405089 — WHEEL KIT DS 250/ 150
- 590685701 — ANCHOR KIT Imperial | 1/2"
- 502434801 — ANCHOR KIT Expander Kit (M12)
- 590766701 — ANCHOR KIT XL | Husqvarna Packaging
- 502434901 — ANCHOR KIT | 1 m
- 502435001 — ANCHOR KIT | 1.5 m
581257101
Adapter
541405089
Wheels
