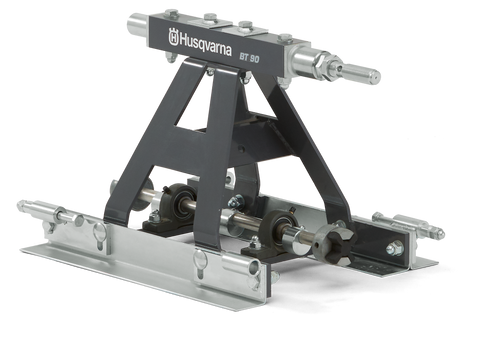

Husqvarna BT 90 G/E Screed Section | SCREED SECTION BT 90 | 0.75 m | 967941116
Part Number: 967 94 11-16 (967941116)
The Husqvarna BT 90 screed section (Article: 967941116) is a 0.75 m component designed for use with BT 90 petrol or electric truss screed systems. This equipment is engineered for the compaction, leveling, and finishing of concrete floors, runways, and bridges up to 20 meters in width.
Key Specifications:
- Length: 0.75 m
- Compatibility: BT 90 petrol/electric systems
- Application: Floors, runways, and bridges
The system supports various configurations through the use of optional accessories, including winches and outriggers, to accommodate specific project requirements. The modular design facilitates assembly by a single operator and allows for precise camber adjustments.
Product Features
Smart design
A precision turn-buckle allows to camber the screed sections independently.
Easy setup
Easy to assemble by a single operator.
Engineered to last
Triangular frames, and square tubes provide better rigidity. Oscillating bearing with grease nipples extend the product life-time and serviceability.
Built to perform
Low profile steel frame ensures durability. Low centre of gravity gives stability in low slump concrete.
| Engine | |
|---|---|
| Power Source | Manual |
| Dimensions | |
| Packaging length (Calc) | 49.213 in |
| Packaging width (Calc) | 19.685 in |
| Packaging height (Calc) | 25.984 in |
| Article gross weight (Calc) | 104.058 lbs |
- 594285801 — SCREW
- 594287601 — NUT
- 594379001 — HANDLE DOMINO REF.1127 02 2121-
- 594392201 — NUT
- 594392801 — NUT M10 DIN986 FZB
- 598768601 — FRAME BT 90 End section
- 595163901 — HANDLE
- 594393501 — AXLE Left hand winch
- 594394801 — CABLE
- 595071101 — SCREW
- 595113301 — WASHER
- 594498001 — HOOK Snap
- 595203101 — SLEEVE
- 594696501 — SHACKLE
- 595277001 — COVER Plastron
- 595449301 — RIVET D 3,2X9
- 595166601 — PLUG
- 595054601 — SCREW CAP M10-1,5X40 8.8
- 595887601 — SCREW M12X70 8.8 CAPSCREW
- 595345501 — SCREW HEX. HEAD M12x80, 8.8, A3K
- 594380601 — SCREW HC M 8X20 CU DIN916
- 594392701 — SCREW HC M10X20 CU DIN916
- 594792801 — SCREW
- 595113401 — WASHER
- 594380501 — ECCENTRIC BT 82
- 594391901 — COUPLING
- 594392001 — SLEEVE
- 594392101 — SCREW
- 594392301 — CROSSBAR Rubber Cross
- 594392401 — HOLDER
- 594392501 — HOLDER
- 598202401 — HOLDER HOLDER
- 595201501 — BAR
- 595201601 — SHAFT
- 595201701 — TUBE
- 594689101 — PLATE Jointing Plate, R
- 594689001 — PLATE JOINTING L
- 594691901 — WASHER
- 594681001 — BEARING
- 594119001 — BOLT HEXAGON HEAD M12x30 DIN933 8.8 FZB
- 595477001 — ANGLE BRACKET 0.75 M
- 595201301 — SHAFT
- 595201401 — TUBE
- 594391701 — BAR Angle, 1 M
- 594391801 — SHAFT 1 M
- 598200501 — TUBE SQUARE TUBE 50X50X2.5
- 595345301 — SCREW Hex. Head, M12-1,75X25 8.8
- 598200402 — SUPPORT SUPPORT BT90 Middle 1m
- 594118601 — SCREW
- 594392901 — BAR Angle, 2 M
- 594393001 — SHAFT 2 M
- 595110301 — SCREW M12x35 8.8 FZB ISO4017
- 594393101 — BAR Angle, 3 M
- 594393201 — SHAFT 3 M
- 595197401 — TUBE
- 577469001 — DECAL HUSQVARNA 210mm
- 596446201 — DECAL BT 90 Model Code
- 595480001 — LABEL Warning
- 596636901 — DECAL
- 594660201 — LABEL Fuel
- 595138501 — LABEL
- 596761201 — DECAL BT 90 Logo - Sections
- 596761301 — DECAL BT90 Model code - section
- 595457501 — BOLT
- 595166001 — BAR
- 595166101 — BAR
- 598200701 — HOLDER HOLDER
- 598200801 — HOLDER HOLDER
- 595166201 — TUBE
- 595166301 — SPACER
- 595112701 — NUT
- 594860502 — EXTENSION BT 90 | 0.5 m
- 595166401 — DRUM
- 598200901 — HOLDER HOLDER
- 595197801 — HOLDER
- 595166501 — HOSE
- 595162301 — TUBE 50x1.85 L=249
- 594860602 — OUTRIGGER BT 90
- 595352301 — NUT
- 594123101 — LOCK NUT M10
- 595443301 — HOLDER Winch, plate
- 595033401 — SCREW M6S M8x25 FZB
- 595444401 — HOLDER Shackle
- 594118501 — BOLT M10x30 8.8 ZP ISO4017
- 596864401 — WINCH for SVE THIRD MAN EXTRA HAND
- 595477901 — BOX Electric, set
- 595525501 — CABLE Electric Winch Left
- 595525601 — CABLE Electric Winch Right
- 594247701 — CABLE WINSCH SVE
- 594710901 — WINCH BT90 Electric Winch
- 595499201 — BLADE Skate, BT 90
- 595036601 — WASHER
- 595113601 — WASHER
- 595344301 — SCREW M8x30 DIN 933 A4 SCREW
- 595499101 — HOLDER Skate, BT 90
- 594118101 — SCREW M8X60MM DIN931
- 595035701 — NUT Hexagon
- 595499103 — SKATE BT 90
- 594817801 — CLAMP
- 595512501 — NUT M20 LEFT
- 595526101 — JOINT Cardan
- 595165801 — WASHER
- 595165901 — WASHER
- 595165401 — BAR
- 595165701 — NUT
- 595522401 — SHAFT
- 595202301 — BELLOWS
- 595467101 — LOCKING PIN
- 595164001 — SCREW
- 595165601 — SCREW
- 595197901 — HOLDER Crown Invert Bracket
- 595165301 — GUIDE
- 595153701 — AXLE
- 595165201 — GUIDE
- 595165501 — BAR
- 595347001 — SCREW Set, M10X50-45H
- 598513901 — HEXAGON NUT HU M20 CL8 DIN934
- 598202901 — BRACKET CROWN INVERT BT 90
- 595165001 — BEAM
