Husqvarna BS 110 | FLOOR SCRAPER BS 110 | 120 V | US | 970615101
Part Number: 970 61 51-01 (970615101)

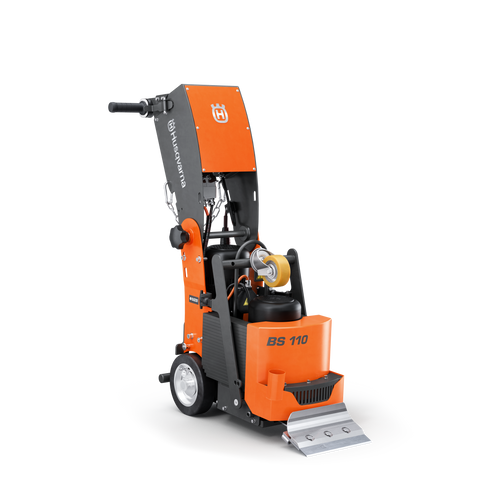

The Husqvarna BS 110 (Article 970615101) is a self-propelled floor scraper engineered for medium-sized renovation projects in both indoor and outdoor environments. Constructed with a rugged metal frame, this machine is designed for long-term durability in demanding job site conditions.
Technical Specifications:
Voltage: 120 V
The unit features forward and backward operation, complemented by integrated speed control. Its electronic-heavy design minimizes maintenance requirements. The machine is engineered for quiet operation with low vibration levels. A front-mounted transport wheel facilitates movement on and off the job site. The BS 110 is compatible with a variety of blades and chisels, allowing for the removal of diverse floor coverings, including linoleum, vinyl, carpet, adhesives, and glue.
Product Features
Easy to transport
This machine has a standard transport wheel on the front of the machine for ease of transportation on and off sites.
Work close to walls
With this floor scraper, you can unscrew the left handle in order to be able to work closely to walls.
User friendly
This floor scraper is equipped with a foot pedal that makes the machine very easy to tilt back to change the blades.
Single phase
With this floor scraper, you don’t need any special electrical system. Just plug in and start removing floors.
| Motor | |
|---|---|
| Output power | 2 hp |
| Voltage | 120 V |
| Rated Current | 13 A |
| Power Source | Corded |
| Working width | 20 in |
| Product data | |
| Type of operation | Self-propelled |
| Dimensions | |
| Product size length | 38 in |
| Product size width | 20 in |
| Product size height | 42 in |
| Weight | 375 lbs |
| Packaging length (Calc) | 43.307 in |
| Packaging width (Calc) | 23.228 in |
| Packaging height (Calc) | 48.228 in |
| Article gross weight (Calc) | 456.357 lbs |
| Sound and noise | |
| Sound level | 75 dB(A) |
- 534935002 — WEIGHT COVER
- 538914901 — NUT DIN 1587 M12 St
- 536939001 — WEIGHT COVER
- 533278002 — WEIGHT ADD ON WEIGHT - BS-110
- 533815501 — PIVOT WHEEL ASSY CASTER COMPLETE
- 544256301 — SCREW IHSCM M12x60 ZPB
- 533438202 — HANDLE TRANSPORT BS-110-EU
- 531471201 — LATCH HOPPER DOOR
- 533069002 — FRAME BS-110
- 538915101 — SCREW DIN 7984 M10X20 A4 SS
- 533203302 — LIFTING SYSTEM LIFTING EYE - BS-110
- 533238701 — PLATE FILL UP PLATE - BS-110
- 534709702 — MOTOR Motor 0,75kW 115/50-60Hz Black
- 534710102 — MOTOR 0.75kW 230V 50-60Hz Black
- 534412701 — FAN COOLING
- 534567102 — FAN COVER VIBRATION MOTOR BLACK
- 534327601 — CAPACITOR Big start up 0-30µf 450V
- 534853201 — CAPACITOR Small operating 450V 25µf
- 533210701 — CAPACITOR RUN (LARGE) - BS-110
- 533210601 — CAPACITOR START UP SMALL 1µf Ø65mm
- 533241301 — FAN COOLING FAN - BS-110
- 535678801 — PLUG OIL DRAIN BS-110
- 534899702 — MOTOR KIT MOTOR REDUCTOR 0.75kW BS-110 3x230/400V 50/60Hz IE2 Orange
- 533208402 — FAN COVER DRIVE MOTOR BLACK
- 535180502 — UNIT Foot rest
- 534778601 — CAP PROTECTION 30mm
- 533514101 — KEY KEY - 8 x 7 x 60mm - BS-110-EU
- 533425101 — SHAFT DRIVE SHAFT - BS-110, BS-75
- 522714201 — LOCKING RING
- 533218801 — SEAL V-RING SEAL - BS-110
- 548552501 — WHEEL SPARE PART KIT BS 75 / 110
- 538920501 — SCREW ISO 10642 M10X40 8.8 ZPB
- 533653701 — QUICK RELEASE PIN
- 576426701 — SCREW IHSCM M10x1.25x20 8.8 ZPB RIGHT
- 533244602 — WEIGHT BOTTOM WEIGHT - BS-110
- 540514401 — WEIGHT Cover
- 540397501 — WEIGHT COVER BS 110
- 540514201 — WEIGHT Bottom
- 540394801 — WEIGHT BS 110
- 595060001 — NUT HEX DOMED CAP M12
- 734117801 — WASHER ISO 7089 13x24x2.5 St 200HV ZPB
- 735117801 — WASHER
- 540396501 — CHASSIS BS 110
- 540509401 — PIN QUICK RELEASE
- 732252201 — HEXAGON LOCKING NUT ISO 7040 M12 8 ZPB. NF
- 540382201 — LIFTING SYSTEM LIFTING EYE
- 540396901 — HANDLE TRANSPORT BS 110
- 540514601 — LATCH HOPPER DOOR
- 599798001 — HEXAGON LOCKING NUT THIN M12 8 ZP
- 540513501 — PIVOT WHEEL ASSY CASTER COMPLETE
- 725550405 — SCREW IHSCM ISO 4762 M 10 X 65 8.8
- 533794401 — BEARING 3206 2RS
- 533671001 — BEARING HOUSING SUPPORT BEARING HOUSING - BS-110
- 537566001 — SCREW ISO 10642 M6x45 8.8 ZPB
- 533269801 — BUSH ECCENTRIC BUSH BS 75 & BS 110
- 533496101 — BEARING PLATE BEARING PLATE - BS-110, BS-75
- 533430601 — BEARING CUTTING HEAD - BS-110, BS-75
- 725253271 — SCREW EHHM ISO 4017 M12x20 8.8 ZPB
- 900000002 — DUMMY PART
- 534328702 — COVER Blade cover BS-75
- 533596902 — HEAD CUTTING HEAD - BS-110-EU
- 538898401 — BOLT M14x35 BOLT
- 576645705 — NUT FLANGE WITH NYLON RING M10 FZB
- 734117201 — WASHER ISO 7089 10.5x20x2 St 200HV ZPB
- 534574701 — WASHER Fill up washer
- 533851901 — ABSORBER SHOCK ABSORBER - BS-110, BS-75
- 547472601 — SUPPORT bearing axle extended
- 533483901 — KEY LOWER 6 x 6 x 20MM, DIN 6885A
- 534312901 — BEARING 2205 E-2RS1
- 536554701 — SUPPORT ROULEMENT KIT PALIER BS-10
- 586061403 — WASHER CONTACT WASHER W. TEETH 6,1x12x1,2
- 533481901 — WASHER M6 FLAT WASHER , DIN 125, 1-A
- 593104501 — BOLT ISO 4762 M 6 X 70 8.8 ZPB
- 534361402 — PLATE BOTTOM
- 734115201 — WASHER ISO 7089 6.4x12x1.6 St 200HV ZPB
- 593500701 — SCREW SCREW MC6S M6X16 8,8 FZB
- 734116441 — WASHER SRKB 8.4/25X2
- 504750202 — SCREW IHPANM ISO 7380 M 8 X 20 10.9 ZPB
- 540395001 — BEARING HOUSING SUPPORT
- 540511501 — BUSHING eccentric
- 540510801 — BEARING PLATE BS 75 BS 110
- 725249371 — SCREW EHHM M10x25 8.8 ZPB
- 735117301 — SPRING WASHER
- 540512301 — COVER Blade BS 75
- 540396701 — HEAD CUTTING HEAD BS 110
- 970703101 — RAMMER LT 8005 | 11" | Yanmar
- 534685901 — BOLT M14x35 bolt
- 540511901 — WASHER fill up
- 540383101 — SUPPORT BEARING AXLE EXTENDED
- 593505401 — PARALLEL KEY RK 6X6X25, DIN 6885A
- 540382701 — PLATE BOTTOM
- 540381401 — MOTOR ONLY 0,75kw 3x230/400V
- 534804904 — MOTOR KIT REDUCTOR only
- 540381801 — FOOTPLATE BS 75
- 725245771 — SCREW EHHM ISO 4017 M 8 X 35 8.8 ZPB
- 540514501 — CAP protection 30mm
- 540395101 — SHAFT DRIVE MOTOR
- 540509501 — SEAL V-ring
- 734116301 — WASHER ISO 7089 8.4x16x1.6 St 200HV ZPB
- 732251801 — HEXAGON LOCKING NUT ISO 7040 M8 8 ZPB. NF
- 725237071 — SCREW EHHM M6x20 8.8 ZPB
- 540510701 — PLATE Fill up
- 540513401 — MOTOR 0.75kW 230V 50-60Hz
- 540822201 — FAN COVER SCRAPER for ML-801-2
- 540822101 — FAN SCRAPER for ML801-2
- 541008301 — CAPACITOR 230V run 20uf
- 541008401 — CAPACITOR 230V start 75uf
- 540455101 — HOLDER KIT CAPACITORS
- 540510101 — GROMMET 8x1,25
- 540510201 — MOTOR 0.75kW 115V/50-60Hz
- 540822301 — FAN COVER Drive motor HVA Black
- 540822401 — FAN COOLING
- 541008101 — CAPACITOR 110V run 60uf
- 541008201 — CAPACITOR 110V start 250uf
- 534557702 — PLATE Electrobox cover plate
- 534611702 — HANDLE BS-75
- 535154802 — COVER Cover
- 534612901 — HANDLE GRIP 25mm
- 534611201 — BAR Handle bar
- 534614201 — WASHER Handle washer
- 533848201 — ABSORBER SHOCK ABSORBER - BS-110, BS-75
- 533381901 — SCREW SET SCREW M10 x 20 - BS-110
- 535190302 — HANDLE BRACKET Handle bracket
- 535243802 — BRACKET Slide bracket
- 533512101 — CLAMP M10 x 14mm CLAMP LEVER, (Black)
- 533697801 — HANDLE FLEX HANDLE COMPLETE - BS-110, BS-75
- 535244001 — PLATE Slide plate
- 597552501 — SCREW MC6S M6x45 8.8 DIN 912/ISO 4762
- 534880701 — SWITCH LEVER BS-75
- 732211601 — LOCK NUT M6
- 534044401 — PIPE CLAMP 15mm
- 534302901 — AXLE
- 725544901 — SCREW IHSCM ISO 4762 M 8 X 16 8.8 ZPB
- 533349802 — PLATE SCRAPER PLATE - BS-110-EU
- 535116702 — HANDLE BOTTOM
- 534514801 — BUSH Distance bush
- 538903101 — SCREW HEX SOCKET HEAD CAP M10x70
- 534667202 — LATCH PLATE
- 538906901 — SPACER RING M8x20 ROUND NUT
- 725545501 — SCREW IHSCM M8x30 8.8 ZPB
- 538903301 — WASHER M12 WASHER DIA 30
- 534665601 — UNIT Sterknop type K M12x80
- 536894001 — GRIP
- 540365201 — BAR Handle
- 540512401 — WASHER handle
- 540381301 — ABSORBER SHOCK
- 540396001 — HANDLE BRACKET UPPER
- 540306201 — CLAMP M10 x 14mm CLAMP LEVER Black
- 540512601 — BRACKET slide
- 540512501 — PLATE Side plate
- 540512801 — COVER top
- 725536801 — SCREW IHSCM ISO 4762 M 6 X 16 8.8 ZPB
- 735115301 — WASHER
- 725536601 — SCREW IHSCM ISO 4762 M 6 X 12 8.8 ZPB
- 540512701 — SWITCH Lever
- 725537401 — SCREW IHSCM ISO 4762 M 6 X 30 8.8 ZPB
- 534686401 — NUT M16 hexagon locking nut DIN-985
- 540511101 — AXLE Frame
- 540395801 — HANDLE UPPER
- 540513601 — KNOB Star M12x80
- 734118041 — WASHER ISO 7093 13x37x3 St ZPB
- 540513201 — PLATE electrobox cover
- 534330301 — CAP M5X10 HEX SOC BUTTON HEAD CAP W FLANGE
- 540821701 — HANDLE FLEX COMPLETE
- 735116401 — SPRING WASHER M8
- 534694801 — NUT M8x20 Round CONN nut
- 540514301 — LATCH PLATE BS 110
- 502233501 — SCREW IHSCM Internal Hexagon Socket Head Cap M 10 X 75 12.9 ZPB
- 540513901 — BUSHING distance
- 540397201 — HANDLE BOTTOM BS 110
- 540514101 — PLATE scraper
- 534375601 — CABLE
- 534859201 — RING Split ring 16mm
- 534940201 — HUB Wheel Hub
- 504466901 — SCREW IHSHMC Internal Hexagon Socket Head Cap M 8 X 35 8.8 ZPB
- 536467001 — SLIDING THRUST WASHER
- 533111201 — BEARING BEARING - BS-110
- 534690701 — BOLT M5x15 eye bolt
- 533529201 — WHEEL WHEEL with HUB - BS-110, BS-75
- 540511601 — BLADE Angle adjuster 4 degrees
- 540511701 — BLADE Angle adjuster 8 degrees
- 534901901 — TOOL BOX BS 110
- 534618201 — SCRAPER BLADE HEAVY DUTY 152x76x2.5 / 6"
- 534618301 — SCRAPER BLADE HEAVY DUTY 203x76x2.5 / 8"
- 534618501 — SCRAPER BLADE HEAVY DUTY 254x76x2.5 / 10"
- 534618901 — SCRAPER BLADE HEAVY DUTY 305x76x2.5 / 12"
- 534773201 — SCRAPER BLADE PREMIUM 152x76x1.6 / 6"
- 534773301 — SCRAPER BLADE PREMIUM 203x76x1.6 / 8"
- 534773701 — SCRAPER BLADE PREMIUM 254x76x1.6 / 10"
- 534773901 — SCRAPER BLADE PREMIUM 305x76x1.6 / 12"
- 534825501 — SCRAPER BLADE SELF SCORING 152x76x1.5 / 6"
- 534826101 — SCRAPER BLADE SELF SCORING 305x76x1.5 / 12"
- 533830501 — SCRAPER BLADE SELF SCORING 152x76x1.5 / 6"
- 540488701 — HUB wheel
- 540523701 — SPACER RING Sliding Thrust
- 540513801 — UNIT EYE M5x15
- 536988101 — ADJUSTER ANGLE 4 DEGREES
- 536988102 — ADJUSTER ANGLE 8 DEGREES
- 536988201 — HOLDER Chisel holder for BS 75 and BS 110
- 533812101 — CHISEL GUIDE BS-110
- 534692301 — SCREW M6x16 hexagon head screw DIN933
- 534692901 — WASHER M6x25x1,5 Washer
- 533386101 — POTENTIOMETER POTENTIOMETER 10k - BS-110
- 534890401 — SWITCH
- 534560701 — BOX Empty box BS-75
- 534668101 — SWITCH Limit switch
- 534590701 — FREQUENCY INVERTER 230V BS 75 / BS 110 empty
- 534590702 — FREQUENCY INVERTER 230V BS 75 / BS 110 progr. 547442601
- 533765701 — FREQUENCY INVERTER 110V 0.75Kw empty
- 533765702 — FREQUENCY INVERTER 110V BS 75 / BS 110 progr. 547442501
- 547535601 — FILTER Multi-stage AC/DC EMI Filter For BS75 & BS110
- 534768701 — PLUG HOUSING FEMALE
- 534643301 — CONNECTOR Inner plug female connector
- 534643501 — CONNECTOR INNER PLUG MALE
- 534768501 — PLUG FOR DOUBLE SWIVEL
- 534772501 — POWER UNIT Power supply cable H07RN-F 3*2.5
- 534767201 — PLUG Plug 16A 2p+E/110-130V
- 534767501 — PLUG 230V 16A 2P + EARTH P
- 547017652 — RING FERRITE RINGS T60006-L2025-W380
- 547017616 — CLAMP SNAP FERRITE W SAFETY KEY TECH
- 547810801 — FILTER EMC 2-line filters SIFI-H B84113H0000B116
- 538775401 — PLUG 15A WIRING DEVICES 1 1
- 534605901 — CIRCUIT BREAKER GV2-P20
- 546691401 — DECAL CE HORIZONTAL
- 546691201 — DECAL ELECTRICAL SAFETY triangle
- 546696401 — DECAL Lifting point
- 546827901 — DECAL BS 75 – 110 drive system
- 576973401 — DECAL HUSQVARNA CROWN 70mm
- 598544501 — DECAL HVA LOGO CROWN BACK 540
- 529507001 — DECAL HUSQVARNA CROWN
- 536688901 — DECAL
- 536694401 — DECAL Name decal BS 110
- 595871701 — LABEL Carton Prop 65
- 595865401 — HANG TAG Prop 65
533653701 Discontinued
Quick release pin
