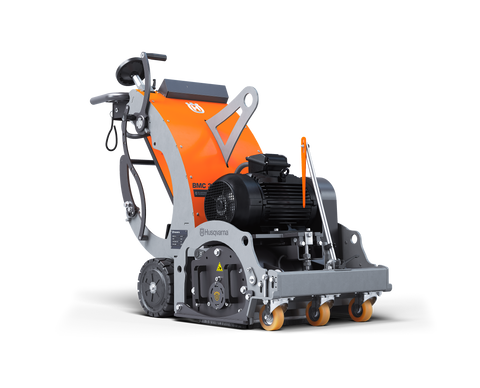

Husqvarna BMC 335 | FLOOR SCARIFIER BMC 335 | ELECTRIC DRIVEN w/o DRUM | US | 970615904
Part Number: 970 61 59-04 (970615904)
The Husqvarna BMC 335 (Article 970 61 59-04) is a heavy-duty electric floor scarifier engineered for demanding surface preparation tasks. Its increased machine weight enhances the efficiency of the scarifying action, supported by a 15 kW motor. The unit features an electrical drive system that reduces operator fatigue by eliminating the need for constant manual pressure on the handle.
Key operational specifications include:
- Motor power: 15 kW
- Maneuverability: 360-degree turning capability
- Vibration control: Drum housing mounted in the frame via torque bushes with integrated dust seals
- Adjustability: Easily adjustable speed and tracking settings
The BMC 335 is compatible with a comprehensive range of drums and blades, allowing for customization based on specific floor types and application requirements.
Product Features
Control panel
Special operating handle with depth indicator and ergonomic integrated control panel which reduces vibrations.
Optimised traction
Optimised traction thanks to 2 large drive wheels and 2 powerful electric motors.
Efficient dust management
This machine is equipped with a large dust hose connection of 100 mm diameter for minimised dust exposure on the site.
Manual or remote control
This machine is available in manual or remote-controlled versions.
| Motor | |
|---|---|
| Output power | 21.5 hp |
| Voltage | 400 V |
| Rated Current | 63 A |
| Power Source | Corded |
| Product data | |
| Rotational speed | 3,000 rpm |
| Working width | 13 in |
| Type of operation | Self-propelled |
| Dimensions | |
| Product size length | 54.6 in |
| Product size width | 26 in |
| Product size height | 46.7 in |
| Weight | 948 lbs |
| Packaging length (Calc) | 66.142 in |
| Packaging width (Calc) | 33.858 in |
| Packaging height (Calc) | 58.661 in |
| Article gross weight (Calc) | 1,091.288 lbs |
| Sound and noise | |
| Sound pressure level at operators ear (LpA) | 90 dB(A) |
| Vibration | |
| Vibrations handlebar | 2.3 m/s² |
- 536546101 — PLATE TEXT BMP 335
- 533829401 — POTENTIOMETER POTENTIOMETER HOLDER & BUTTON - 1-8DPS30
- 534654401 — JOYSTICK
- 533990401 — BUTTON GREEN FLUSH/RED FLUSH ILLUMINATED DOUBLE
- 533749201 — STOP EMERGENCY STOP -(BUTTON ONLY) ZB5-AS844
- 536977501 — DIGITAL AMP METER
- 536054601 — SCREW ISO 7380-2 M5-0.8 x 12 10.9 ZnFe
- 533387401 — SWITCH DEADMAN SWITCH,NC/NC,240vac,10amp,T-XCS,
- 533289101 — KEY KEY for DEADMAN SWITCH
- 533810801 — CORD CORD for DEADMAN SWITCH BMP-335EHY, BG-250E/GMKII
- 534409102 — BOX CONTROL HVA Grey
- 536977601 — SEAL Rubber controlbox
- 534416401 — COVER CONTROL BOX
- 535190002 — BAR HANDLE
- 533407601 — TUBE ROUND - 35mm
- 533267601 — BUMPER RUBBER Type D 30-20 M8x20
- 503200770 — SCREW IHSCFM M5x10 10.9 Zn/Fe
- 534522901 — BRACKET DRIVE RH
- 534239702 — DRIVE MOTOR 0.55kW
- 535365701 — SPACER RH drive spacer
- 534855902 — SPACER DRIVE UNIT
- 535632601 — HOUSING DRIVE ASSY
- 535208801 — LOCKING PLATE Loking plate
- 534869101 — SPRING
- 534774801 — PLATE PRESSING
- 534759501 — BEARING PLAIN
- 534619701 — FORK Heavy duty
- 534522301 — AXLE Drive axle
- 534758601 — BEARING PLAIN
- 534939001 — WHEEL Wheel complete
- 534064101 — WASHER M10 x 30 x 1.5 WASHER, ZINC
- 534759301 — BEARING PLAIN
- 535626001 — BLOCK BMC / BMP 335
- 534791901 — SEAL Radial shaft
- 534759201 — BEARING PLAIN
- 535173901 — AXLE ECCENTRIC RH
- 535216601 — MOUNTING PLATE mounting plate
- 535224702 — PEDAL Foot
- 534847201 — BLOCK SLIDE
- 535180101 — AXLE FOOT
- 534868201 — SPRING
- 534691601 — SCREW M6-8x30 CK-PASSCHR F9
- 534690201 — SCREW M5-6x10 CK-PASSCHR F9
- 534872301 — BRACKET STIFFERING RH
- 576426701 — SCREW IHSCM M10x1.25x20 8.8 ZPB RIGHT
- 725644951 — SCREW IHCSFM M8x16 10.9 ZPB
- 725632751 — SCREW IHCSFM M5x12 10.9 ZPB
- 534522701 — BRACKET DRIVE LH
- 534872201 — BRACKET STIFFERING LH
- 593500701 — SCREW SCREW MC6S M6X16 8,8 FZB
- 535171601 — AXLE ECCENTRIC
- 725238151 — SCREW EHHM ISO 4014 M6x55/18 8.8 ZPB
- 535352501 — WHEEL Handwheel
- 534858301 — SPINDLE HEIGHT ADJUSTMENT
- 534619901 — ADJUSTER Height adjustment clambing
- 534391501 — CLAMP Clamp handle
- 725637051 — SCREW IHCSFM M6x20 10.9 ZPB
- 534758901 — BEARING PLAIN
- 534847001 — BLOCK Upper height adjustment
- 734116301 — WASHER ISO 7089 8.4x16x1.6 St 200HV ZPB
- 534615101 — SCREW Head M8 11x16
- 534758801 — BEARING PLAIN
- 534846901 — BLOCK SLIDE
- 538914101 — NUT HEXAGON NUT M27X1,5
- 534880401 — STUD end for spindle - BMC / BMP 335
- 531469501 — BUSHING BUSHING
- 535634001 — ELBOW ASSEMBLY
- 536981301 — LEVER HEIGHT
- 535217401 — MOUNTING PLATE LH
- 531484501 — TEFLON BEARING - 900VMB
- 535218101 — MOUNTING PLATE RH
- 535192902 — HANDLE Height lever handle
- 533897501 — BUSHING TAPERLOCK
- 533271701 — LOCKING PIN FAST LOCKING PIN HD
- 538912401 — SCREW COUNTERSUNK HEAD SCREW M12x30
- 533916301 — HANDLE GRIP CYLINDRICAL HANDLE-THECNOPOLYER w/ MODED
- 536054101 — SCREW DIN 7991 M4-0.7 x 20 10.9 ZnFe
- 535257101 — PLATE Top plate
- 534847101 — BLOCK SLIDE
- 535215401 — BLOCK Mounting block
- 534732301 — NIPPLE AND SCREW
- 535161402 — PLATE Depht plate drumhousing
- 535215501 — BLOCK Mounting block
- 535257201 — PLATE Top plate
- 535249501 — STUD Stud
- 534761901 — KNOB Plastic, black M6
- 535229602 — BAR PULL
- 506570106 — SCREW EHHFM M8x35 8.8 ZPB
- 534409601 — CONTROL CABLE
- 580703601 — SCREW EHHM DIN 931 M10x45 10.9 FZB ESLOK
- 535192802 — BRACKET HEIGHT
- 534906501 — BUSH TORQUE
- 725545101 — SCREW IHSCM ISO 4762 M 8 X 20 8.8 ZPB
- 535187702 — SUPPORT GAS SPRING
- 533298201 — GAS SPRING GAS SPRING 300N - 2-45DT
- 535244201 — PLATE Slide plate
- 533883301 — SUPPORT HEXAGON DRIVE SHAFT - BMP-335EHY
- 534855601 — SPACER bush long
- 533337901 — SEAL RADIAL SHAFT SEAL (Viton)
- 533218101 — RETAINER RING BORE 72mm DIN472
- 534315601 — BEARING HOUSING LH - BMC / BMP 335
- 533843501 — NIPPLE M6-180 LUBRICATION NIPPLE
- 533611201 — BEARING REPLACEMENT BEARING ONLY for E07799
- 534855701 — SPACER bush thin
- 534664401 — BEARING LH HD
- 536981401 — GREASE FOR BEARING
- 534616801 — HANDLE
- 535157102 — COVER PLATE
- 725528901 — SCREW IHSCM ISO 4762 M 4 X 10 8.8 ZPB
- 725253871 — SCREW EHHM M12x35 8.8 ZPB ISO4017
- 533836901 — WASHER M12 PLAIN WASHER (heavy)
- 535212202 — PLATE MONTAGE DRUM HOUSING
- 534315701 — BEARING HOUSING RH - BMC / BMP 335
- 533255801 — SEAL RADIAL SHAFT SEAL
- 533220501 — RING External Circlip Ø50mm DIN472
- 534389501 — CIRCLIP JV90 sich-V-Ring
- 533611301 — BEARING REPLACEMENT BEARING ONLY for E07798
- 533485001 — SUPPORT HEXAGON DRIVING SUPPORT - LONG
- 533740901 — SEAL RADIAL SHAFT SEAL (Viton) - BMC-335
- 593497301 — SCREW DIN 912 DRI-LOC SCREW MC6S M6X12 8,8 FZB
- 538869601 — BRUSH SIDE SHORT
- 534824502 — GASKET SEALING
- 576645704 — NUT FLANGE WITH NYLON RING M8 FZB
- 725549501 — SCREW IHSCM ISO 4762 M 10 X 30 8.8 ZPB
- 533321101 — WASHER M10 SPRING LOCK WASHER
- 734117201 — WASHER ISO 7089 10.5x20x2 St 200HV ZPB
- 725544901 — SCREW IHSCM ISO 4762 M 8 X 16 8.8 ZPB
- 534807801 — BEARING UNIT RH COMPLETE
- 535159101 — PLATE Coverplate mountingpins
- 535216301 — PIN Mounting pin drumhousing
- 535168202 — HOUSING DRUM BMP-335MKII
- 535359701 — AXLE Mounting axle drum-frame
- 538891401 — WASHER M8x30
- 535159001 — PLATE Coverplate
- 534823702 — SEAL INSERT NUT PLASTIC M8
- 534839201 — BRUSH Side brush long
- 734115201 — WASHER ISO 7089 6.4x12x1.6 St 200HV ZPB
- 535359801 — PIN MOUNTING
- 534784101 — PU HEAVY DUST HOSE 1 PC = 10 M
- 534629001 — HOSE CLAMP 90-120mm
- 536545901 — BRACKET DRUM HOUSING
- 533481901 — WASHER M6 FLAT WASHER , DIN 125, 1-A
- 534691501 — WASHER M6 spring lock washer
- 725536601 — SCREW IHSCM ISO 4762 M 6 X 12 8.8 ZPB
- 548534601 — HOUSING ASSY Incl dust outlet
- 536545601 — MOTOR 15 kW Black
- 535217302 — MOUNTING PLATE ELECTRIC
- 534863501 — SPACER RING BMC / BMP 335
- 534637301 — PULLEY HTD (64-8m-50; 38mm)
- 534319501 — DRIVE BELT
- 534725101 — BUSH Mounting bush
- 595680401 — SCREW M12X25 8.8 ZP DIN 7991
- 533867302 — DRIVE BELT PROTECTOR BMC-335 ELITE
- 725253271 — SCREW EHHM ISO 4017 M12x20 8.8 ZPB
- 533587301 — SHAFT SHAFT LOCK NUT (M35) - BMP-335
- 533460101 — KEY 10x8x40
- 534637501 — PULLEY HTD Pulley bottom
- 725249971 — SCREW EHHM M10x40 8.8 ZPB
- 731232001 — HEXAGON NUT ISO 4032 M10 8 ZPB
- 535214402 — PLATE MOTOR
- 536144801 — BOLT DIN 931 M10x50 8.8 ZPB
- 535357001 — LOCKING PIN height adjustment
- 534571501 — EYE BOLT Drum tensioner
- 542173035 — WASHER ISO 7089 21x37x3 St ZPB
- 538892401 — LOCKWASHER DIN 127-B M20 SPRINGLOCK
- 535215101 — AXLE Mounting axle
- 725249771 — SCREW EHHM M10x35 8.8 ZPB
- 535181902 — FRAME BMP-335 MKII
- 535251102 — SUPPORT PLATE RH
- 535192701 — AXLE Height afjustable axle
- 535241402 — BAR SIDE
- 584815901 — WASHER 10,75x50x3
- 533848201 — ABSORBER SHOCK ABSORBER - BS-110, BS-75
- 533256401 — PIN QUICK RELEASE
- 535258002 — CLAMP TRIPPLE
- 725649101 — SCREW IHCSFM M10x20 8.8 ZPB
- 533767701 — PIPE CLAMP PIPE CLAMP, 35mm, BLACK,(SET)-BMG-435WD
- 538894101 — SCREW COUNTERSUNK HEAD SCREW M6x65
- 725638001 — SCREW IHCSFM M6x50 8.8 ZPB
- 535245001 — BUSH Spacer bush
- 533278401 — SPRING SPRING GLAND M20 x 30
- 533244501 — HEXAGON NUT M20 HEX NUT LOW
- 725254171 — SCREW EHHM M12x45 8.8 ZPB
- 734117801 — WASHER ISO 7089 13x24x2.5 St 200HV ZPB
- 535254802 — SUPPORT TILTING
- 533250601 — BUSHING MOUNTING BUSHING
- 593495301 — LOCK NUT LOCK NUT LM6M M12 FZB DIN985
- 725249571 — SCREW EHHM M10x30 8.8 ZPB
- 533214001 — HOOK HOOK
- 534757401 — PIPE CLAMP Pipe clamp (set) 18mm Black
- 534677301 — WASHER M10 plain washer (3xd)
- 534874902 — HOSE Suction hose connection
- 535157002 — COVER PLATE
- 576654802 — SCREW EHHFM DIN 6921 M 12 X 20 8.8 ZPB
- 535185502 — PLATE FRONT
- 535183802 — BRACKET FRONT
- 534513102 — INDICATOR DIRECTION ARROW
- 536057601 — SCREW DIN 931 M6-1.0 x 40 8.8 ZPB
- 534513302 — PIPE DIRECTION
- 597883201 — SCREW DIN 6921 M10x60 8.8 ZPB
- 533512101 — CLAMP M10 x 14mm CLAMP LEVER, (Black)
- 534513202 — INDICATOR DIRECTION
- 725532901 — SCREW IHSCM M5x16 8.8 ZPB
- 534390801 — CLAMP Clamp 20MM
- 534341601 — BLOCK
- 534385401 — WHEEL Castor wheel
- 534693901 — WASHER M8 spring lock washer
- 725245751 — SCREW M6S 8x35 FZ
- 533722901 — RETAINER RING 12 DIN471 BMG-435
- 535641301 — BOLT M12x100 EYE BOLT GALVANISED
- 534343902 — ELECTRONIC BOX BMP-335 MKII
- 533915101 — CONTACTOR AUX CONTACTOR,FRONT MOUNT for GV2,GV3,1N
- 534026001 — HOUR METER COUNTER/HOUR,12-24V,AC/DC 6-54DCG1, 8-54DCG1
- 533445401 — POWER UNIT POWER SUPPLY - BMG-780 (10V1)
- 540746001 — POWER UNIT MNWL SUPPLY WDR-120-24 5A
- 536981501 — REMOTE CONTROL TRANSMITTER
- 536981601 — UNIT RECEIVER
- 533572401 — CHARGER CHARGER ULTRA PRO BMG-780-RS 230V
- 538993001 — PLUG For charger E10927 UK
- 538993002 — PLUG For charger E10927 US
- 538993004 — PLUG For charger E10927 EU
- 538993003 — PLUG For charger E10927 AU
- 533686501 — BATTERY ULTRA PRO BMG-780-RS Battery for E10925
- 533824201 — CARRIER BMG-780-RS ULTRA PRO HOOK CARRIER FOR TRANSMITTER
- 534806401 — PLATE Retaining plate 200mm, 5 holes
- 534537901 — DRUM SHAFT Ø22 mm
- 533873301 — DRUM DRUM ONLY without 5 SHAFTS or TEST
- 534431501 — DRUM COMPLETE WITH MPL24 CUTTERS BMP 335
- 533127301 — DRUM COMPLETE WITH MILLING CUTTERS BMP 335
- 534444501 — DRUM COMPLETE WITH MPL120 CUTTERS BMP 335
- 533873601 — DRUM 335 mm LARGE
- 534319401 — DRIVE BELT
- 534637601 — PULLEY HTD Pulley top
- 534636701 — DRIVE BELT HTD belt 1120-8M-50 CXP
- 534320401 — BELT COVER Belt cover 60Hz
- 534626501 — HOOK Hook wrench
- 534637201 — PULLEY HTD Pulley
- 534249201 — SERVICE KIT 60Hz scarify rebuild set - BMC-335ELITE
- 533278101 — HOSE WATER HOSE CONNECTION
- 533252301 — VALVE BALL MINI
- 533500701 — COUPLING METAL WATER REDUCING
- 533259501 — HOSE WATER BLACK PU 8x5,5mm 1.5m
- 533199501 — PIPE CLAMP PIPE CLAMP - BMG-535
- 533375401 — COUPLING WATER T-COUPLING - BMG-535
- 533266701 — COUPLING WATER KNEE
970685205
Blastrac DC 655
970685206 Discontinued
Blastrac DC 655
967663701
T 10000
967664601
C 5500
533473601 Discontinued
Shaving drums
533236201
Empty drum
546216901
ICRI profile concrete set
546216902
ICRI profile plastic chipset
