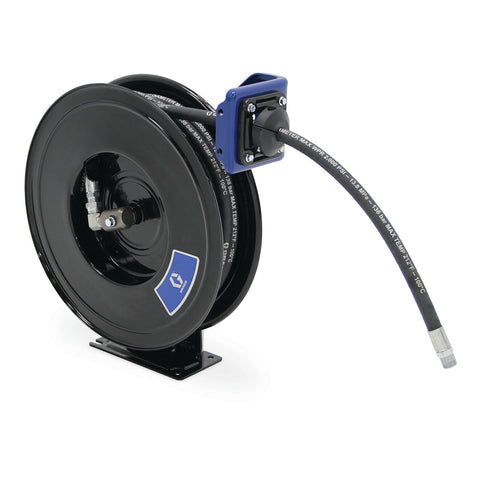

Graco | SDL6DF SDX 20, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, Bare Reel (1/2 in X 50 ft (13 mm X 15 m) Capacity), NPT, Overhead Mount, Yellow
Graco
Model: SDL6DF
Graco's flagship SDX hose reels offer high-quality performance and versatility. Constructed with specially crafted components, including a rigid metal frame and low-friction swivels, this reel is available in five colors.
Featuring a durable metal spool and a rigid pedestal frame, the compact SDX Series is suitable for indoor and limited outdoor use in environments such as car dealerships, fleet maintenance facilities, public works garages, and light-utility service trucks.
- Includes a stainless-steel swivel shaft for extended service life when dispensing air, water, antifreeze, windshield wash solvent, and other fluids.
- The Low-Friction Cartridge Swivel ensures smooth reel operation and features an easily replaceable swivel cartridge for simplified repairs.
- The Full-Flow Swivel maximizes material flow with minimal pressure drop, enabling faster fills and increasing vehicle throughput in your shop.
- The Adjustable Arm allows for easy modification of the arm position to suit your specific application needs.
- Offers a Large Hose Capacity with a Small Profile; the compact pedestal and spool fit into confined spaces and can accommodate 35-65 foot (10.7-19.8 meters) of hose (NPT air/water capacity) for diverse applications.
- Features a Durable Finish with a baked-on enamel coating to protect the reel from corrosion.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946206937 |
| Division | LED |
| Height | 26.25 IN | 66.675 CM |
| Length | 24.5 IN | 62.230 CM |
| Width | 9.5 IN | 24.130 CM |
| Volume | 3.531 FT3 | 0.100 M3 |
| Shipping Weight | 45 LBS | 20.412 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Hose Inside Diameter (mm) | 12.7 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Maximum Temperature (°C) | 87 |
| Maximum Temperature (°F) | 190 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Temperature (°C) | -28 |
| Minimum Temperature (°F) | -20 |
| Outlet Size (in) | 1/2 |
| Outlet Size (mm) | 12.7 |
| Overall Height (in) | 21.8 |
| Overall Height (mm) | 554 |
| Overall Length (in) | 19.2 |
| Overall Length (mm) | 487 |
| Overall Width (in) | 7 |
| Overall Width (mm) | 177 |
| Series | 20 |
| Frame Type | Single Pedestal |
| Reel Thread Type | NPT |
| Inlet Thread Gender | Male |
| Outlet Thread Gender | Male |
| Recommended Fluid Type | Air, Water, Antifreeze, WWS |
| Hose Reel Type | Bare Reel |
| Model | SDX |
| includes_hose | No |
